Troubleshooting:
If there is no power to Art Screen,
1 - Check that X-Arm home position limit switch LS2 is being actuated properly by the bottom bar of the X-Arm.
2- Check continuity in IR Art Screen box on side of Main Shell.
If there is no power to X-Arm,
1 – Check that Art rolled up Limit Switch LS1 is being actuated properly by the Art cross bar.
2 – Check continuity in X-Arm Power Box on bottom of Main Shell.
3 – If X-Arm still unresponsive then follow troubleshooting instruction in X-Arm user manual.

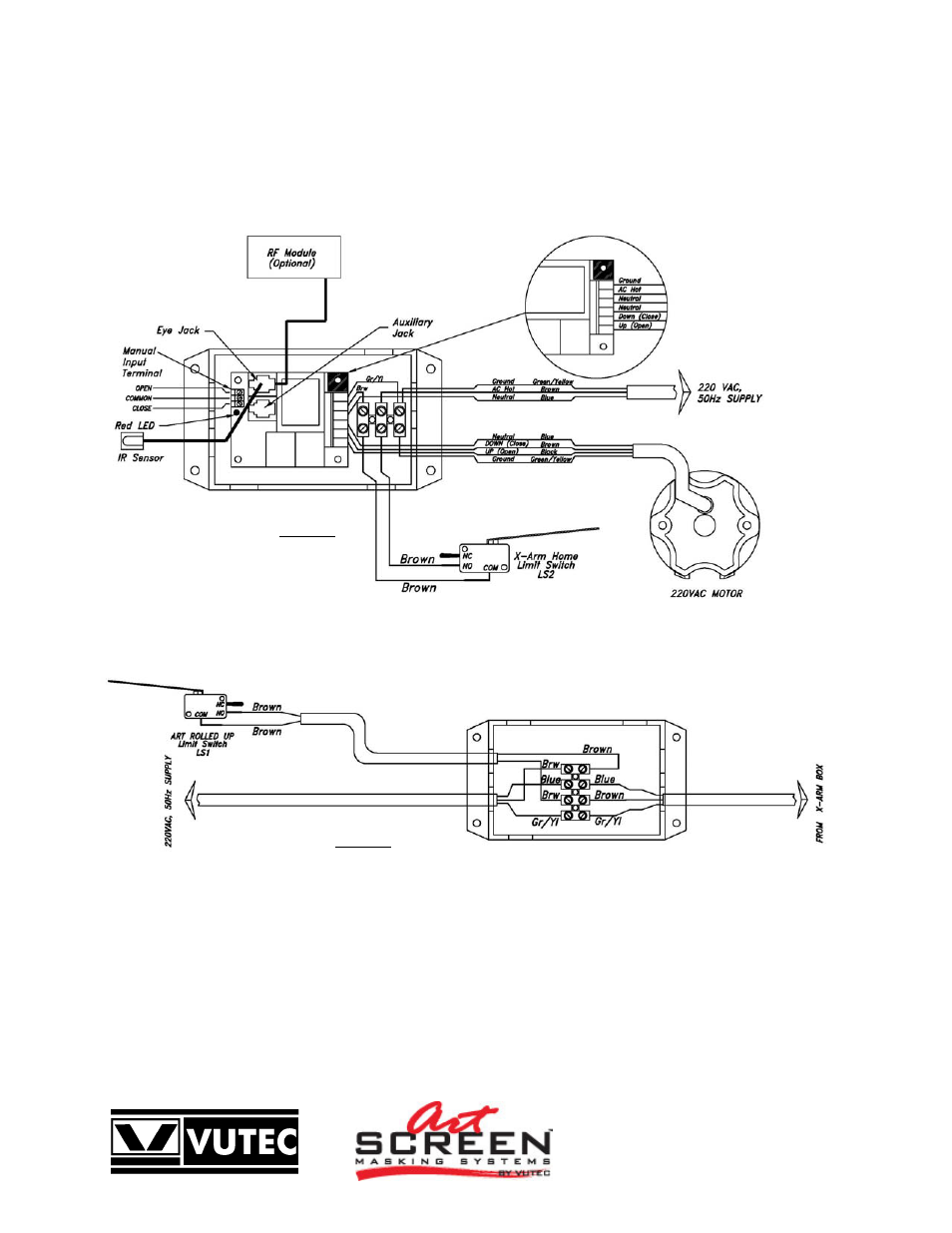

Figure G
IR Box
Figure G
X-Arm Power Box
