Wood Frame Installation
A typical wood frame including the liner is
approximately 5-1/2 inches wide to properly
cover the assembly. The wood overhangs the
main shell approximately 3/4 inch when
attached.
Two corner woods are attached to the backside
of the wood frame to take-up the weight.
Two spring-loaded catches and a magnetic catch
will hold the wood frame to the main shell.
Simply snap the wood frame to the shell when
ready.
Electrical Connections
A Quad outlet AC box is provided for 220VAC
connection. Connect 220VAC to this box to
power the TV, X-Arm and the IR remote
control.
The Art Screen and the X-Arm come with
respective IR remote controls for operations.
Remotes are ready for use; no wiring
connections are required.
Place the IR sensors so that it can be seen by the transmitters.
Plug the power cords to a 220VAC outlet.
The IR remote control and X-Arm have manual inputs for Home Automation systems, i.e. AMX, Crestron, etc. See IR remote control
manual and X-Arm manual (included) for detail information.
The SPDT switch (Figure 12) may be used for security purpose; its contacts may be connected to an audible alarm system or
monitoring system. The breach of security will be activated when the wood frame is removed.
The normal states of the contacts are shown when the wood frame is not presented.
Contact Rating: 10Amp, 1/2HP, 125/250VAC or 6Amp, 30VDC.
The Art Screen R series has two normally open limit switches, as shown in Fig 13:
LS1 – Art rolled up limit switch needs to be engaged in order for X-Arm to operate.
LS2 – X-Arm home limit switch needs to be engaged in order for Artwork to
operate. (See electrical schematic appendix)

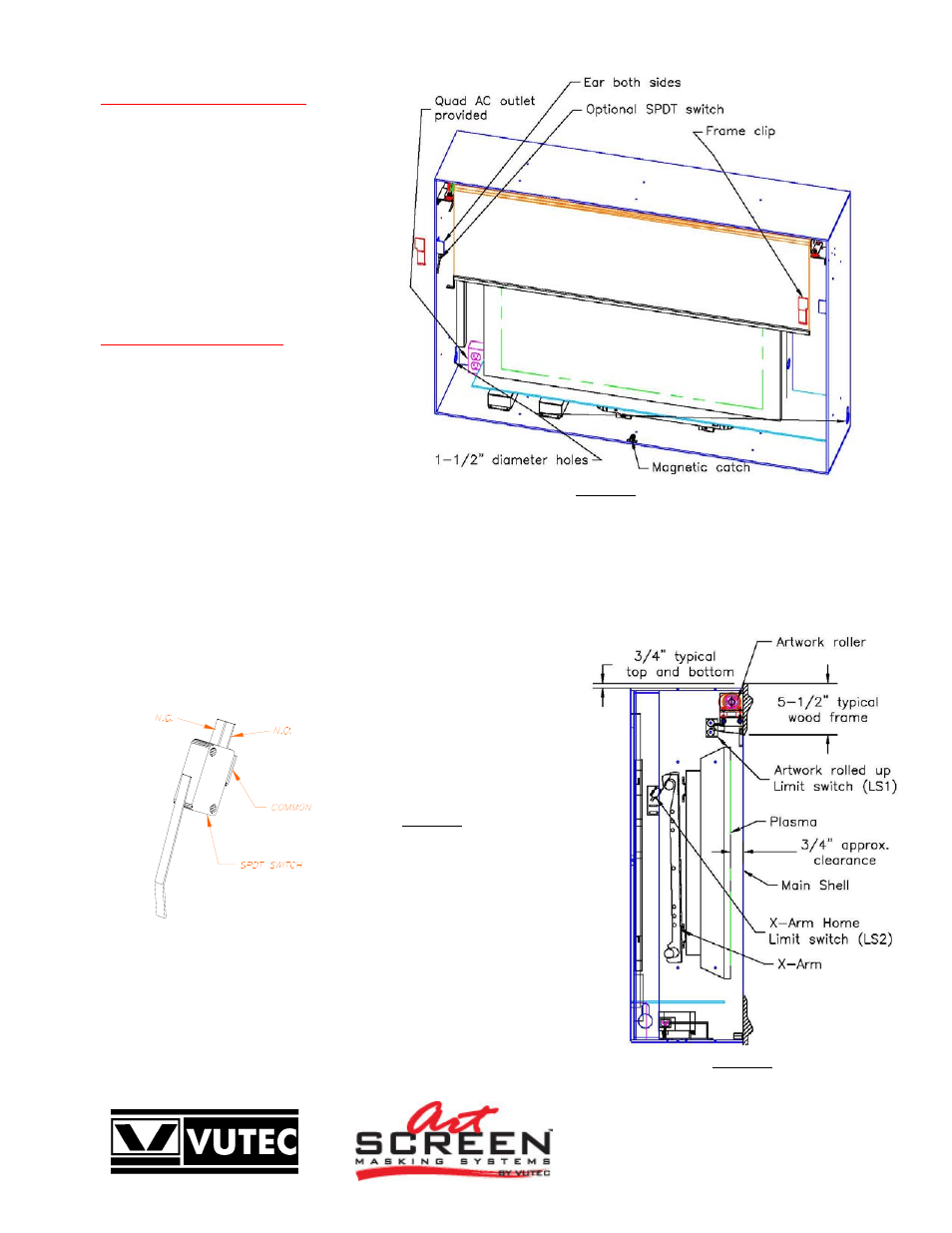

Figure 12
Optional
SPDT switch
Figure 13
Side View
Figure 11
Partial Assembly
