Installation

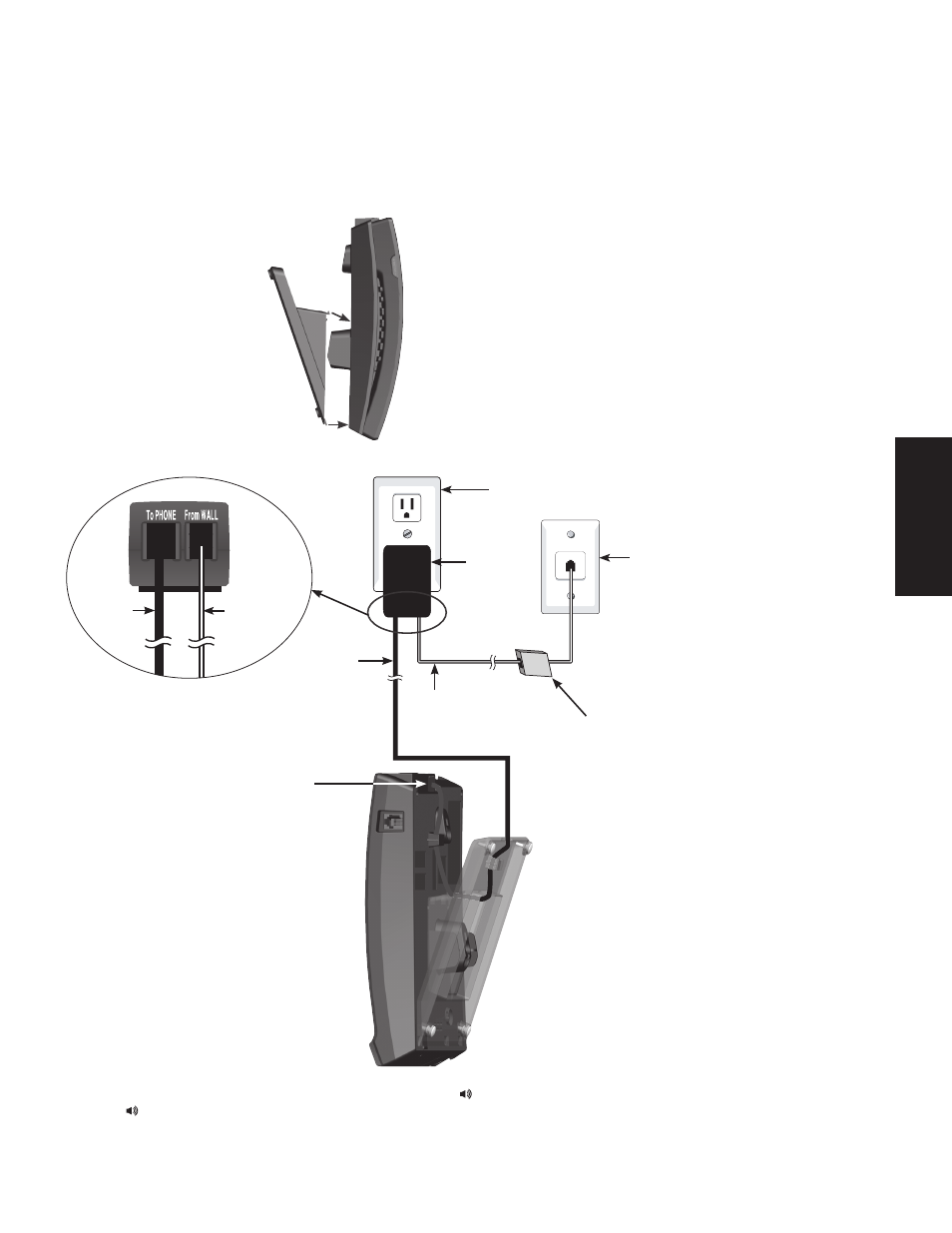

Telephone base installation
This telephone can be adapted to desktop use or mount on a standard telephone wall plate.
Installation option - desktop position
Turn the telephone base over with the bottom side facing up. Insert the tabs into the grooves to affix the mounting bracket in place.
Plug the power adapter into an electrical outlet not controlled by a wall switch.
When the telephone base has been initially installed, press /SPEAKER on the telephone base. Listen for a dial tone and then
press /SPEAKER again to hang up.
1.
2.
3.
Analog cordless 1-line/2-line - A2410/CTM-A2411/A2420/CTM-A2421
Installation
CAUTION:
Use only the supplied RJ-45 cord and power adapter. RJ-45 cord is not designed for use in any other IT devices. Misuse of RJ-45 cord on your
other IT devices shall be prohibited. To order a replacement, visit our website at www.vtechhotelphones.com or call 1-888-907-2007.
Telephone wall jack
Telephone
line cord
Power
adapter
Electrical outlet not
controlled by a wall switch
RJ-45 cord
Telephone
line cord
If you have High Speed
Internet Access service,
a DSL filter (not included)
is required.
Power cord jack
RJ-45
cord
