Page 30
27
Installation
Analog corded trimstyle - A2310
Telephone base installation
The telephone can be adapted to desktop use or mount on a standard telephone wall plate.

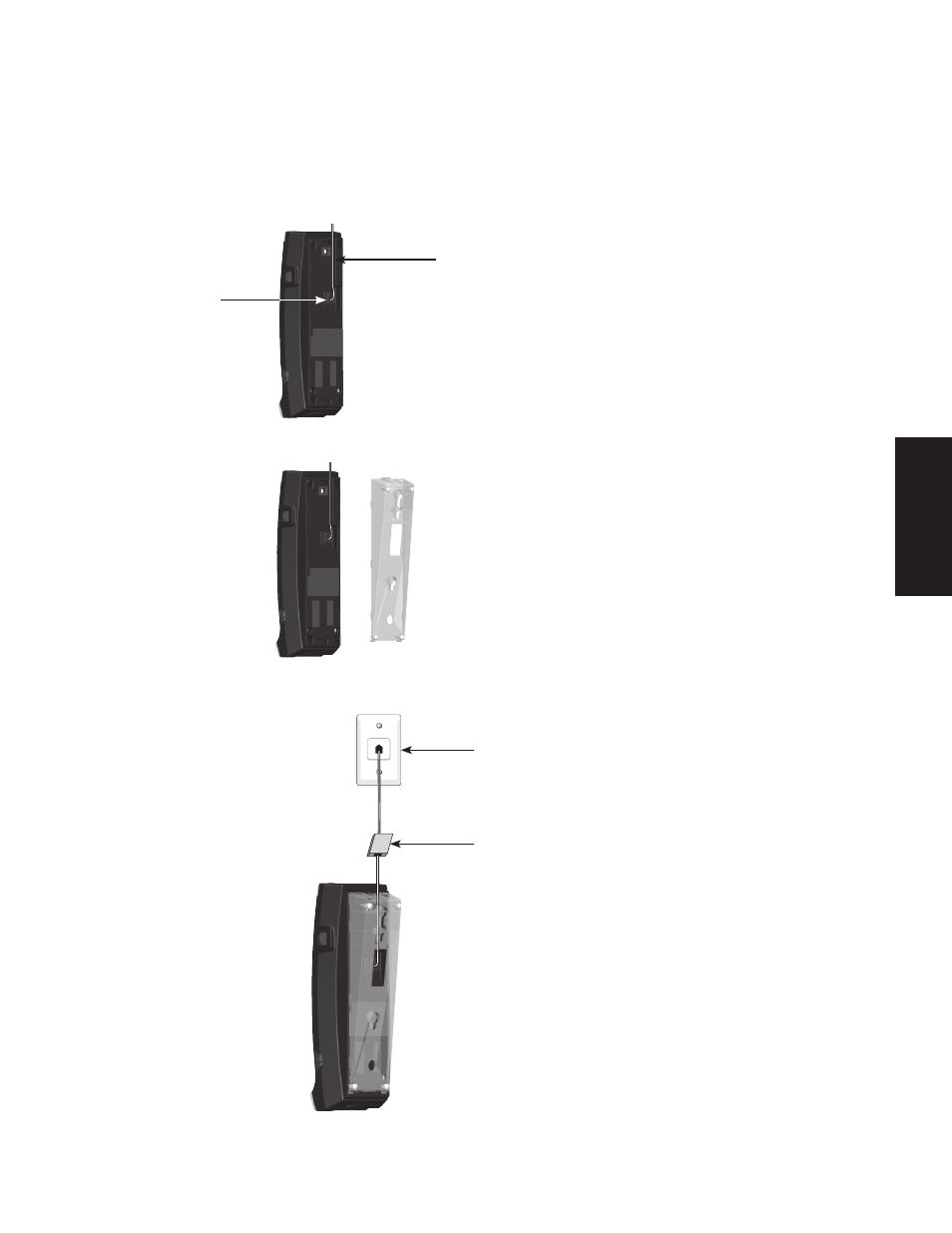

Installation option - desktop position
Turn the telephone base over with the bottom side facing up. Connect the telephone line cord to the telephone base and route
along the wire duct.
Position the mounting bracket as shown. Insert the two small tabs of the mounting bracket into the lower slots on the telephone
base. Then press the large tab on the mounting bracket and firmly push it into the upper groove on the telephone base.
Install the telephone base as shown below. Then connect the coiled handset cord to the telephone base.
1.
2.
3.
Telephone line jack
Installation
Wire duct
Telephone wall jack
If you have High Speed Internet
Access service, a DSL filter (not
included) is required.
