English – Velleman projects VMB4PD Short user manual User Manual

Page 3

background image

3

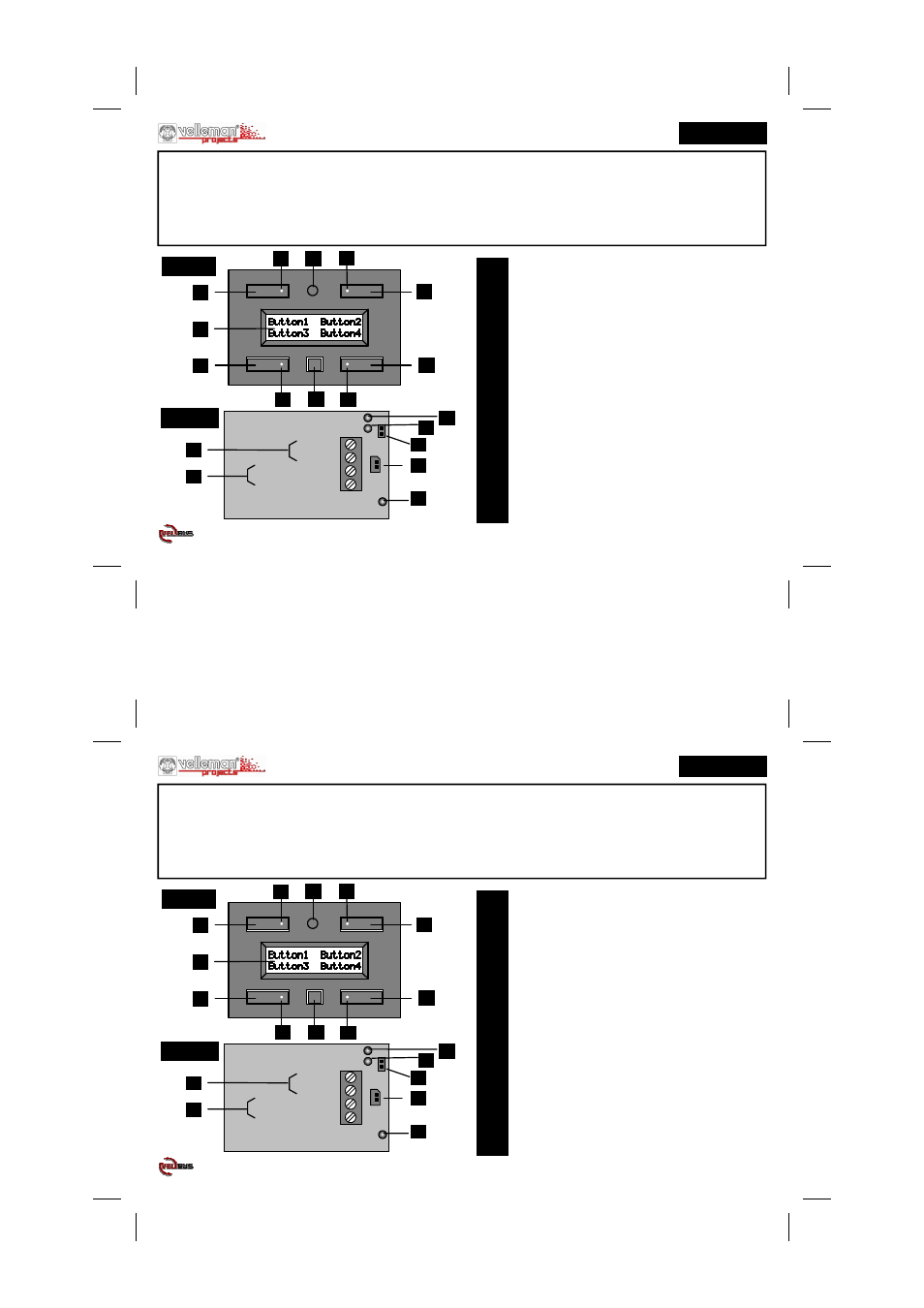

Front

ENGLISH

1

A

2

3

4

C

B

D

5

H

Back

1

Push button 1 (5) ( ) = second page

2

Push button 2 (6)

3

Push button 3 (7)

4

Push button 4 (8)

5

Page selection / Configuration push button

6

Termination

7

Velbus (watch polarity)

8

12Vdc - 18Vdc power supply

9

9V Battery backup (for clock)

A

Backlight and indication LED push button 1 (5)

B

Backlight and indication LED push button 2 (6)

C

Backlight and indication LED push button 3 (7)

D

Backlight and indication LED push button 4 (8)

E

Velbus transmit LED

F

Velbus reception LED

G

Velbus power LED

H

2 line 16 charachters button labels (2 pages)

I

Infrared receiver for VMBIRTS

12V Power supply

-

+

L

H

Velbus

+

-

6

G

F

E

7

8

9

I

Thank you for choosing the Velbus system Push button and timer panel.
This versatile panel provides a lot of functions to facilitate the use of your Velbus automation system.

Direct control of output modules using 4 push buttons.

Additional 4 push buttons on second page, making a total of 8 push buttons.

Possibility to provide each button from a custom label.

Possibility for timed actions on each button (day and week timer functions).

3

Front

ENGLISH

1

A

2

3

4

C

B

D

5

H

Back

1

Push button 1 (5) ( ) = second page

2

Push button 2 (6)

3

Push button 3 (7)

4

Push button 4 (8)

5

Page selection / Configuration push button

6

Termination

7

Velbus (watch polarity)

8

12Vdc - 18Vdc power supply

9

9V Battery backup (for clock)

A

Backlight and indication LED push button 1 (5)

B

Backlight and indication LED push button 2 (6)

C

Backlight and indication LED push button 3 (7)

D

Backlight and indication LED push button 4 (8)

E

Velbus transmit LED

F

Velbus reception LED

G

Velbus power LED

H

2 line 16 charachters button labels (2 pages)

I

Infrared receiver for VMBIRTS

12V Power supply

-

+

L

H

Velbus

+

-

6

G

F

E

7

8

9

I

Thank you for choosing the Velbus system Push button and timer panel.
This versatile panel provides a lot of functions to facilitate the use of your Velbus automation system.

Direct control of output modules using 4 push buttons.

Additional 4 push buttons on second page, making a total of 8 push buttons.

Possibility to provide each button from a custom label.

Possibility for timed actions on each button (day and week timer functions).
