16
Misc Axle Shaft & Wheel End Hardware
Miscellaneous Axle Shaft and Wheel End Hardware Parts
Part Number Description Notes A B C
013885 Tapered Dowel For 5/8” studs - split dowel 1.000 0.629 0.469
132993 Tapered Dowel For 5/8” studs - solid dowel 1.000 0.625 0.524
HM237 Tapered Dowel For 1/2” studs - split dowel 0.804 0.503 0.344
014571 Tapered Dowel For 1/2” studs - split dowel 0.804 0.503 0.344
215100 Tapered Dowel For 1/2” studs - split dowel 0.838 0.503 0.391
083481 Tapered Dowel For 5/8” studs - solid dowel 1.060 0.642 0.594
083482 Tapered Dowel For 1/2” studs - solid dowel 0.797 0.443 0.500
029804 Washer-Axle Shaft
006823 Gasket-Axle Shaft 8 hole, 3/4”, .020 thick, ID 5.625” BC 7.00”
057HG101 Gasket-Axle Shaft 8 hole, 3/4”, .010 thick, ID 5.750” BC 7.00”
013886 Gasket-Axle Shaft 8 hole, 5/8”, .020 thick, ID 5.750” BC 7.00”
127042 Gasket-Axle Shaft 8 hole, 5/8”, .031 thick, ID 5.625” BC 7.25”
127800 Gasket-Axle Shaft 8 hole, 5/8”, .010 thick, ID 4.250” BC 5.50”
HG106 Gasket-Axle Shaft 8 hole, 5/8”, .010 thick, ID 4.000” BC 5.22”
129545 Gasket-Axle Shaft 12 hole, 1/2”, .020 thick, ID 4.500” BC 5.25”
810812 Nut Flange-Wheel
060600 Nut-Axle Shaft 5/8”, 18 thread
811332 Stud-Wheel Serrated 22mm 3.55”
673346 Stud-Wheel Serrated 22mm 3.94”
673645 Stud-Wheel Serrated 22mm 4.91”, replaces HM243
816473 Stud-Wheel Serrated 22mm 4.32”
673434 Stud-Wheel Serrated .750” - 16 RH 2.91” (black)
673435 Stud-Wheel Serrated .750” - 16 LH 2.91” (green)
127794 Stud-Wheel .625-18 & .625-11 3.50”
817281 Capscrew - Hex-head .625-18 - Grade 8

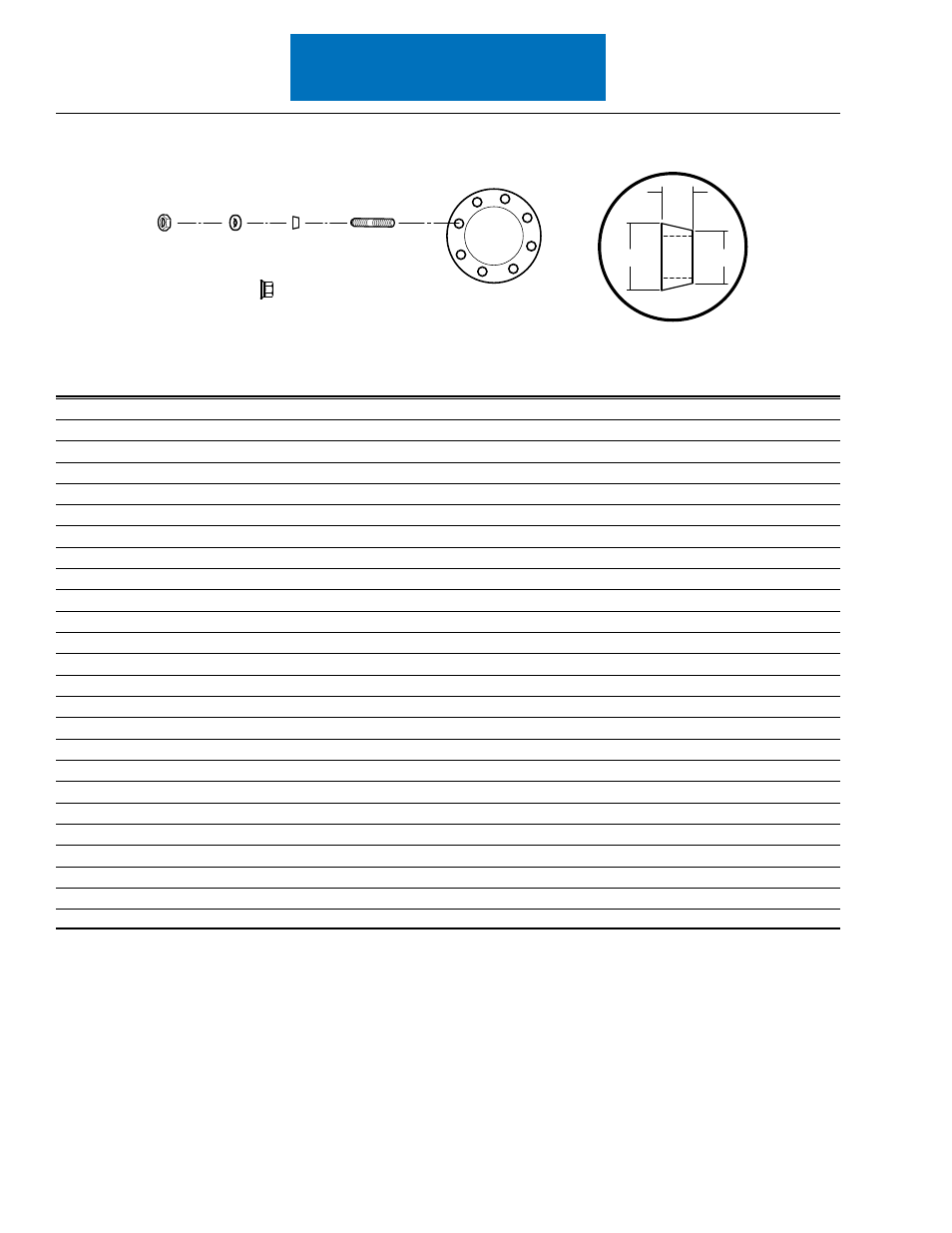

Axle Shaft Nut
Washer
Tapered Dowel
Stud
Wheel Flange Nut
Gasket
B A
C
Tapered Dowel
Enlarged
