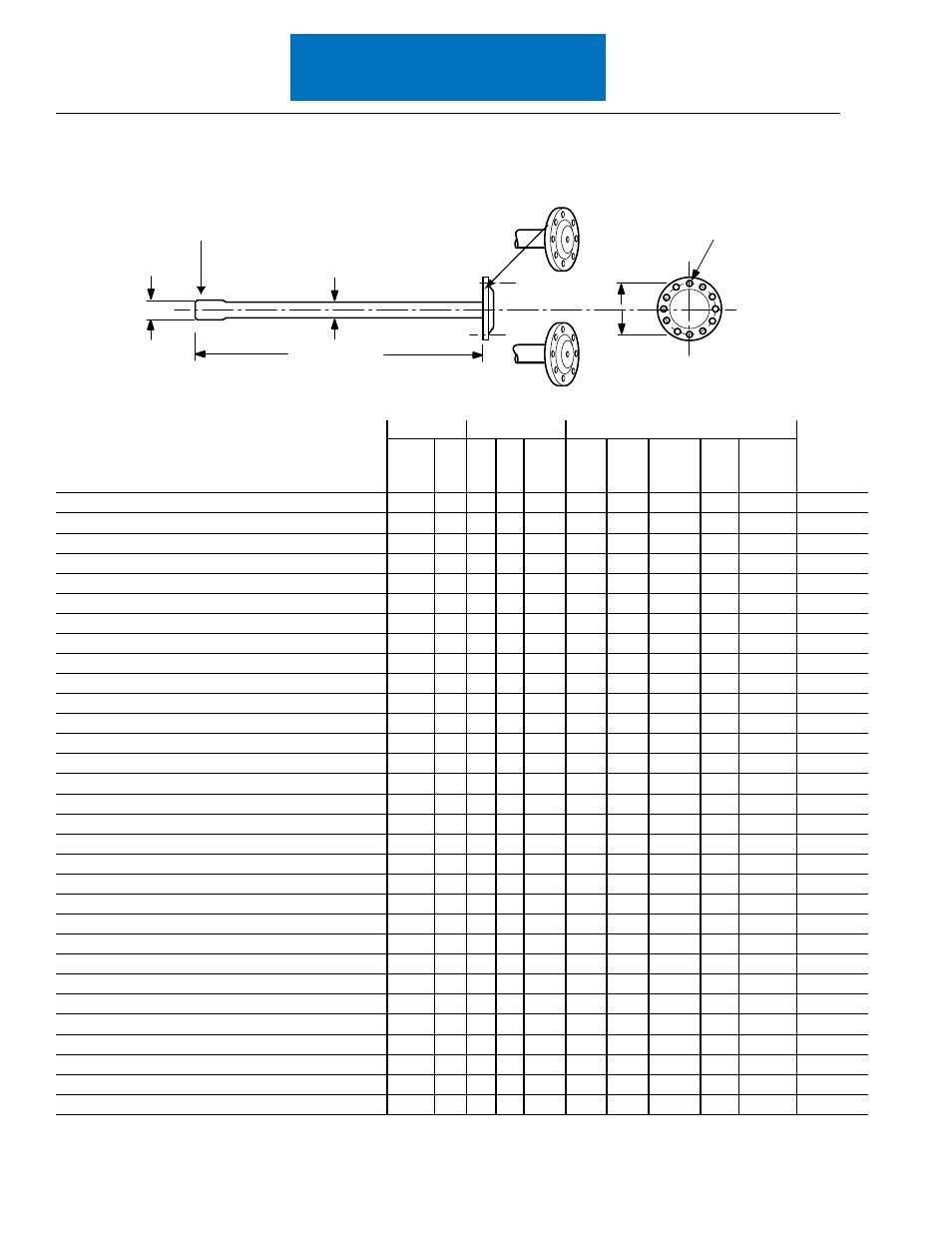

Spicer Drive Axles Illustrated Parts List Axle Shafts & Wheel End Parts - Manual (Page 16)

14
BODY LENGTH
BOLT HOLE TYPE:
S=Straight
T=Tapered
SPLINE TYPE:
STR=Straight
INV=Involute
A=Angular
BODY O.D. SPLINE O.D.
NUMBER OF SPLINES
210512
PART NUMBER
FLANGE TYPE:
F=Flathead
B=Bell
BOLT CIRCLE
Axle Shafts by Part Number
Axle Shafts by Part Number
BODY SPLINE FLANGE
Bolt
Part Length Dia. O.D. Flange O.D. Circle No. Hole Diff Lock
No. Model (in) (in) Type No. (in) Type (in) (in) Holes Type Spline
132869 S110 37.834 1.61 I 34 1.76 F 6.22 5.31 8 781-TRP
132870 S110 39.842 1.61 I 34 1.76 F 6.22 5.31 8 781-TRP
132872 17060S, 19060S, D/R344 38.500 1.81 I 39 2.00 F 6.63 5.50 8 635-STR
132878 17060D, 19060D 42.750 1.81 I 39 2.50 F 6.63 5.50 8 635-STR 11.00”
133648 S130 39.173 1.61 I 36 1.85 F 6.22 5.22 8 590-STR
133649 S130 37.480 1.61 I 36 1.85 F 6.22 5.22 8 590-STR
133659 17060D, 19060D 42.750 1.87 I 39 2.00 F 6.22 5.25 12 566-STR
133665 S130FR 38.125 1.61 I 36 1.85 F 6.22 5.31 8 781-TRP
133666 S130FR 39.500 1.61 I 36 1.85 F 6.22 5.31 8 781-TRP
133684 S110 38.691 1.56 I 34 1.75 F 6.22 5.22 8 590-STR
133685 S110 40.433 1.56 I 34 1.75 F 6.22 5.22 8 590-STR
133884 S130 38.219 1.61 I 36 1.85 F 6.22 5.31 8 781-TPR
133885 S130 39.567 1.61 I 36 1.85 F 6.22 5.31 9 781-TPR
133961 S140 40.118 1.81 I 39 2.00 F 6.22 5.25 12 781-TRP
133963 S140 40.118 1.81 I 39 2.00 F 6.63 5.50 8 635-STR
133996 S130 39.173 1.61 I 36 1.85 F 6.22 5.31 8 781-TPR
134052 D/R190 WT 50.154 2.25 I 46 2.35 B 8.50 7.00 8 948-TPR
134054 D/R190 WT 41.154 2.25 I 46 2.35 B 8.50 7.00 8 948-TPR
134074 S130L, S130R 41.150 1.61 I 36 1.85 F 6.63 5.50 8 635-STR
134075 S130L, S130R 39.450 1.61 I 36 1.85 F 6.63 5.50 8 635-STR
134231 S130F 41.150 1.61 I 36 1.85 F 6.22 5.25 12 781-TRP
134232 S130F 39.450 1.61 I 36 1.85 F 6.22 5.25 12 781-TRP
134234 S130L 40.197 1.61 I 36 1.85 F 6.22 5.31 8 781-TPR
134235 S130L 42.205 1.61 I 36 1.85 B 6.22 5.31 8 781-TPR
210654 19050S, 19050T 40.906 1.81 I 36 1.85 F 6.13 5.25 12 781-TPR
210902 23080D, 23090D 39.000 2.06 I 36 2.31 B 8.50 7.00 8 773-STR 11.00”
057SR102-1 W230 40.840 2.06 I 46 2.35 B 8.38 7.00 8 948-TPR
128517HX 404, 405, 454, 21060S, 22060S 43.307 1.87 I 41 2.11 B 8.50 7.00 8 948-TPR
128521HX 404, 405, 454, 21060S, 22060S 38.130 1.87 I 41 2.11 B 8.50 7.00 8 948-TPR
128522HX 404, 405, 454, 21060S, 22060S 42.460 1.87 I 41 2.11 B 8.50 7.00 8 948-TPR
128561HX DD/RD404, 405, 21060D, 22060D 43.307 1.87 I 41 2.11 B 8.50 7.00 8 948-TPR 11.00”
