12

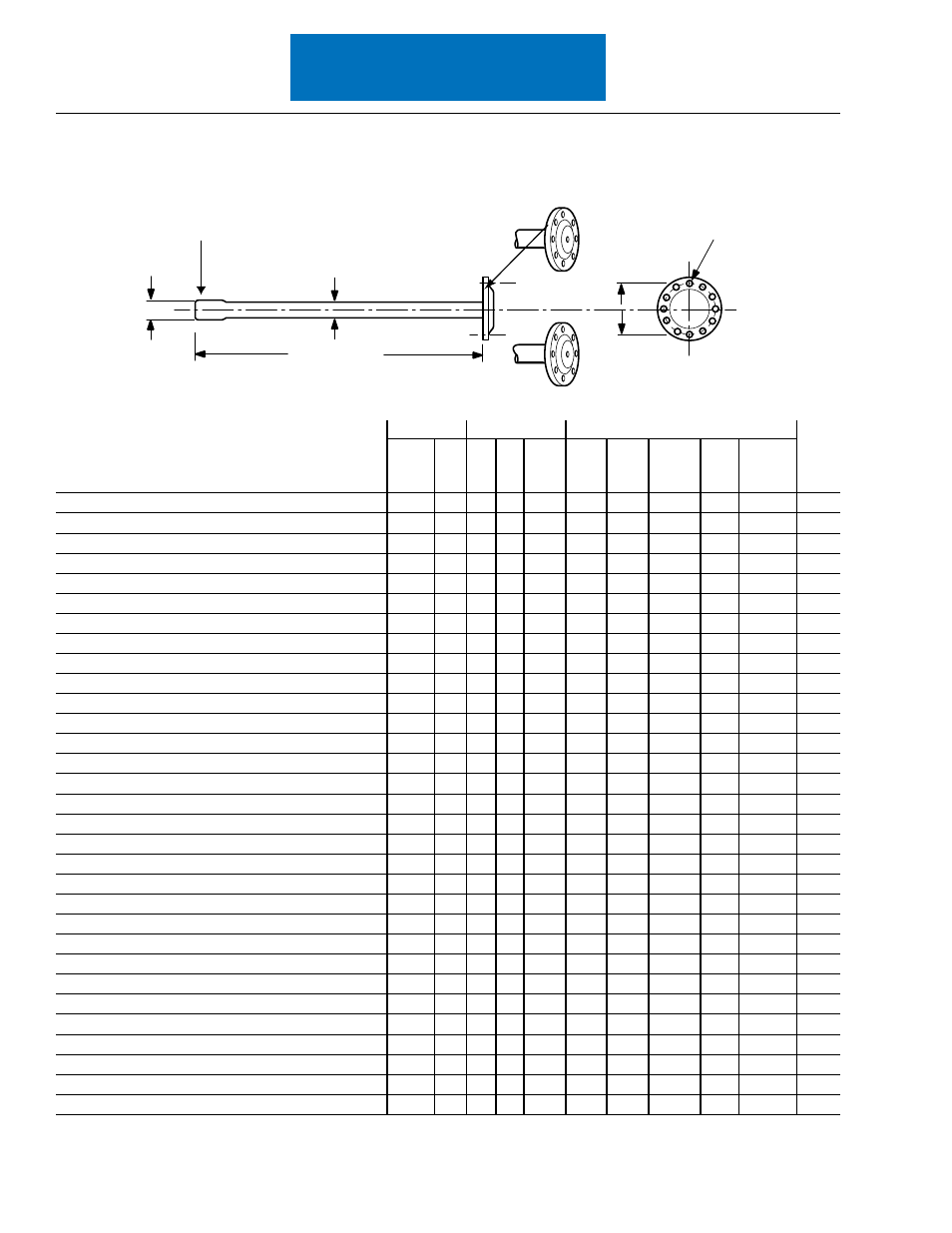

BODY LENGTH
BOLT HOLE TYPE:
S=Straight
T=Tapered
SPLINE TYPE:
STR=Straight
INV=Involute
A=Angular
BODY O.D. SPLINE O.D.
NUMBER OF SPLINES
210512
PART NUMBER
FLANGE TYPE:
F=Flathead
B=Bell
BOLT CIRCLE
Axle Shafts by Part Number
Axle Shafts by Part Number
BODY SPLINE FLANGE
Bolt
Part Length Dia. O.D. Flange O.D. Circle No. Hole Diff Lock
No. Model (in) (in) Type No. (in) Type (in) (in) Holes Type Spline
129304 D/R652 49.500 2.25 I 36 2.31 B 8.50 7.24 8 948-TPR
129306 404, 454, Wide Track 45.500 1.87 I 41 2.11 B 8.50 7.00 8 635-STR
129330 402, 403, 451, 17433, 21060T, 22060B, 22060T 41.500 1.87 I 41 2.11 B 8.50 7.00 8 948-TPR
129332 402, 403 40.690 1.87 I 41 2.11 B 8.50 7.00 8 773-STR
129336 462, 463, 23090D 40.000 2.06 I 36 2.31 B 8.50 7.00 8 773-STR 11.00”
129388 404 Wide Track 43.887 1.87 I 41 2.11 B 8.50 7.00 8 773-STR
129423 601, 652, 35055P, 35055T, 44.250 2.25 I 36 2.31 B 8.50 7.24 8 948-TPR
129439 17060S, 19060S, D/R344 38.500 1.81 I 39 2.00 F 6.13 5.25 12 566-STR
129440 17060S, 19060S, D/R344 42.750 1.81 I 39 2.00 F 6.13 5.25 12 566-STR
129479 17060S, 19060S, D/R344 42.750 1.81 I 39 2.00 F 6.13 5.25 12 781-TPR
129507 21080S, 23080S, 26080S, 23090S, D/R461, 462 41.375 2.06 I 36 2.31 B 8.50 7.00 8 948-TPR
129509 462, 463 46.750 2.25 I 36 2.31 B 8.50 7.24 8 948-TPR
129511 30105D 43.750 2.25 I 36 2.31 B 8.50 7.24 8 948-TPR 11.50”
129513 462, 463, 521, 23105D, 26105D 41.313 2.25 I 36 2.31 B 8.50 7.00 8 948-TPR 11.50”
129515 DD461, 462, 23105D 41.313 2.25 I 36 2.31 B 8.50 7.00 8 635-STR 11.50”
129516 23105D, 26105D 41.313 2.25 I 36 2.31 B 8.50 7.00 8 773-STR 11.50”
129517 23105D 40.563 2.25 I 36 2.31 B 8.50 7.00 8 773-STR 11.50”
129520 23105D 42.216 2.25 I 36 2.31 B 8.50 7.00 8 948-TPR 11.50”
129522 521, 23105D, 26105D 42.216 2.25 I 36 2.31 B 8.50 7.00 8 635-STR 11.50”
129556 21080S, 23080S, 26080S, 23090S, D/R461, 462 44.118 2.06 I 36 2.31 B 8.50 7.00 8 948-TPR
129585 30105D 43.750 2.25 I 36 2.31 B 8.50 7.00 8 948-TPR 11.50”
129597 21080S, 23080S, 26080S, 23090S, D/R461, 462 41.375 2.06 I 36 2.31 B 8.50 7.00 8 773-STR
129954 21080S, 23080S, 26080S, 23090S, D/R461, 462 42.750 2.06 I 36 2.31 B 8.50 7.00 8 948-TPR
129956 21080S, 23080S, 26080S, 23090S, D/R461, 462 39.625 2.06 I 36 2.31 B 8.50 7.00 8 635-STR
129958 21080S, 23080S, 26080S, 23090S, D/R461, 462 39.000 2.06 I 36 2.31 B 8.50 7.00 8 948-TPR
129960 21080S, 23080S, 26080S, 23090S, D/R461, 462 42.000 2.06 I 36 2.31 B 8.50 7.00 8 773-STR
129961 21090D, 23090D, 26090D 40.000 2.06 I 36 2.31 B 8.50 7.00 8 635-STR 11.00”
130107HX 21090D, 23090D, 26090D 40.000 2.06 I 36 2.31 B 8.50 7.00 8 948-TPR 11.00”
130113 23090B, 26090B, 26090S 40.600 2.06 I 36 2.31 B 8.50 7.00 8 635-STR
130156 21080S, 23080S, 26080S, 23090S, D/R461, 462 39.000 2.06 I 36 2.31 B 8.50 7.00 8 773-STR
130213HX 21080S, 23080S, 26080S, 23090S, D/R461, 462 42.500 2.06 I 36 2.31 B 8.50 7.00 8 948-TPR
