Flange Yokes
Snap Ring Design

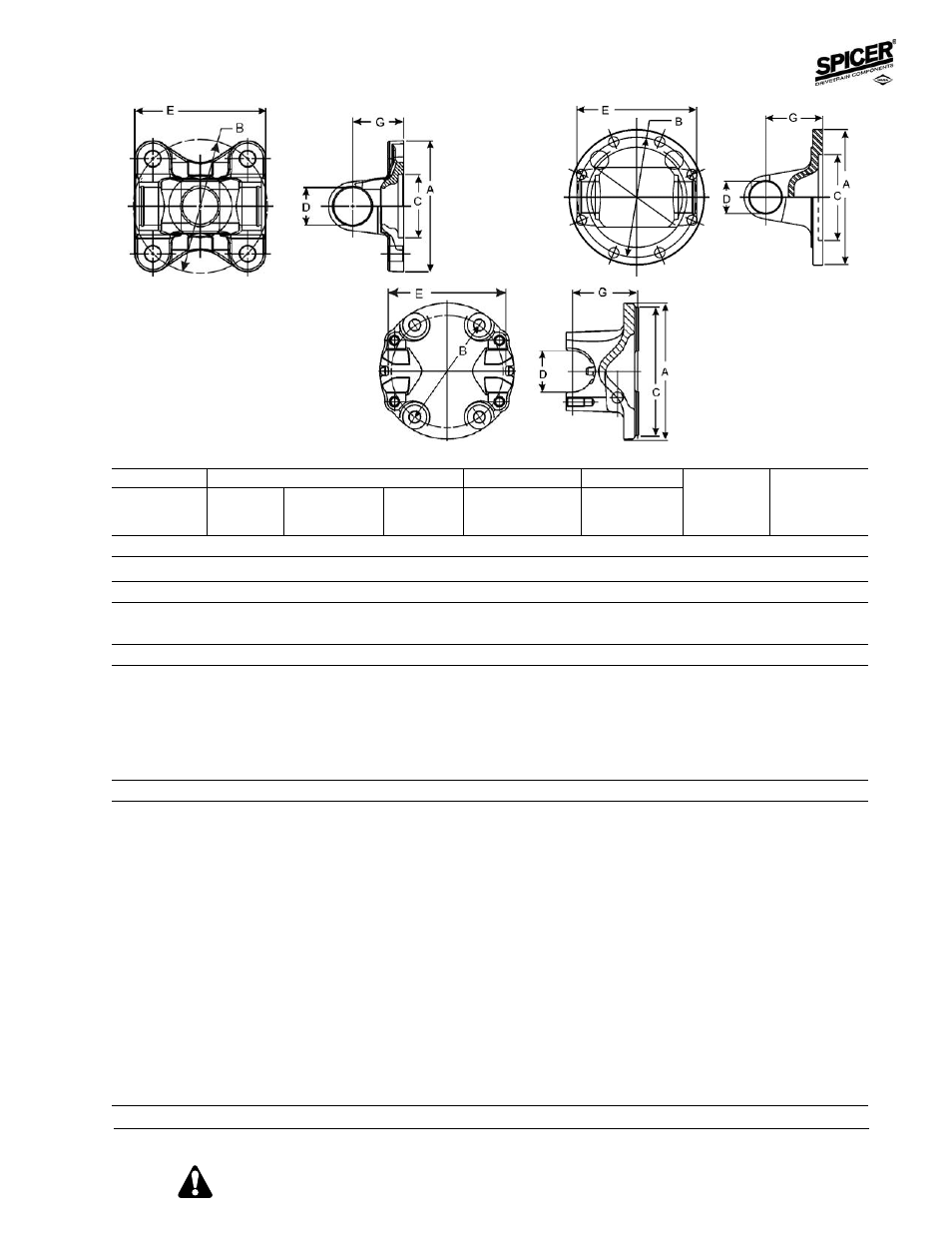

Figure 1 Figure 2
Figure 3
5 Important: See Safety Information in General Information Section (J300P-GI)
• Part is discontinued  Part is available until supply is exhausted © Not sold separately
A B - Bolt Holes C G
Flange or Bolt Diameter Number Pilot Diameter Flange Illustration Spicer
Swing Circle D-Drilled of M-Male Face to Figure Part
Diameter Diameter T-Tapped Holes F-Female Centerline Number
1000 SERIES E-1.500 D-.938 USE KIT NO. 5-170X
3.375 2.750 .312-D 4 2.250M 1.562 1 10-2-29
1100 SERIES E-2.656 D-.938 USE KIT NO. 5-101X OR 5-111X
3.375 2.750 .312-D 4 2.250F 1.188 1 1-2-49•
3.375 2.750 .312-D 4 2.250M 1.188 1 1-2-39
1210 SERIES E-2.688 D-1.062 USE KIT NO. 5-443X OR 5-736X
3.406 2.750 .328-D 4 2.250M 1.484 1 2-2-899
Fits several Nissan & Toyota pick-up trucks
3.710 3.125 .334-D 4 2.250M 1.200 1 2-2-1419•
Bolts holes are equally spaced
3.710 3.125 .334-D 4 2.250M 1.200 1 2-2-1579
2-2-1579 was replaced by 2-2-1419
4.360 3.500 .484-D 4 2.000F 1.625 1 2-2-1049
1310 SERIES E-3.469 D-1.062 USE KIT NO. 5-153X, 5-785X, 5-810X, 5-1200X
3.625 2.875 .380-D 4 — 1.375 1 2-2-349
3.875 3.125 .375-D 4 2.375F 1.375 1 2-2-389
3.875 3.125 .375-D 4 2.375M 1.625 1 2-2-459
3.875 3.125 .375-D 4 2.375M 1.375 1 2-2-329
3.875 3.125 .406-D 4 2.375M 1.625 1 2-2-1609
Metric flange
4.016 3.203 .406-D 4 1.969M 1.781 1 2-2-1309
10 mm bolt holes, equally spaced
4.080 3.198 .400-D 4 1.968M 1.781 1 2-2-1899
4.150 3.344 .406-D 4 1.812M 1.770 1 2-2-1679
10 mm bolt holes, equally spaced
4.158 3.346 .406-D 4 2.559M 1.766 1 2-2-1519
4.160 3.346 .406-D 4 2.375M 1.516 1 5006832
5006832 was replaced by 2-2-06832
4.160 3.346 .406-D 4 2.375M 1.516 1 2-2-06832
4.330 3.661 .446-D 4 1.811M 1.634 1 5001902
5001902 was replaced by 2-2-01902 ; Bolts holes are equally spaced
4.330 3.661 .446-D 4 1.811M 1.634 1 2-2-01902
Bolts holes are equally spaced
