Spicer DRIVELINE COMPONENTS CATALOG FLANGE YOKES - Manual (Page 4)

J300P-2
Spicer Life Series™ Flange Yokes
A B - Bolt Holes C G
Flange or Bolt Diameter Number Pilot Diameter Flange Illustration Spicer
Swing Circle D-Drilled of M-Male Face to Figure Part
Diameter Diameter T-Tapped Holes F-Female Centerline Number
Important: See Safety Information in General Information Section (J300P-GI)
4 Important: See Safety Information in General Information Section (J300P-GI)
• Part is discontinued  Part is available until supply is exhausted © Not sold separately

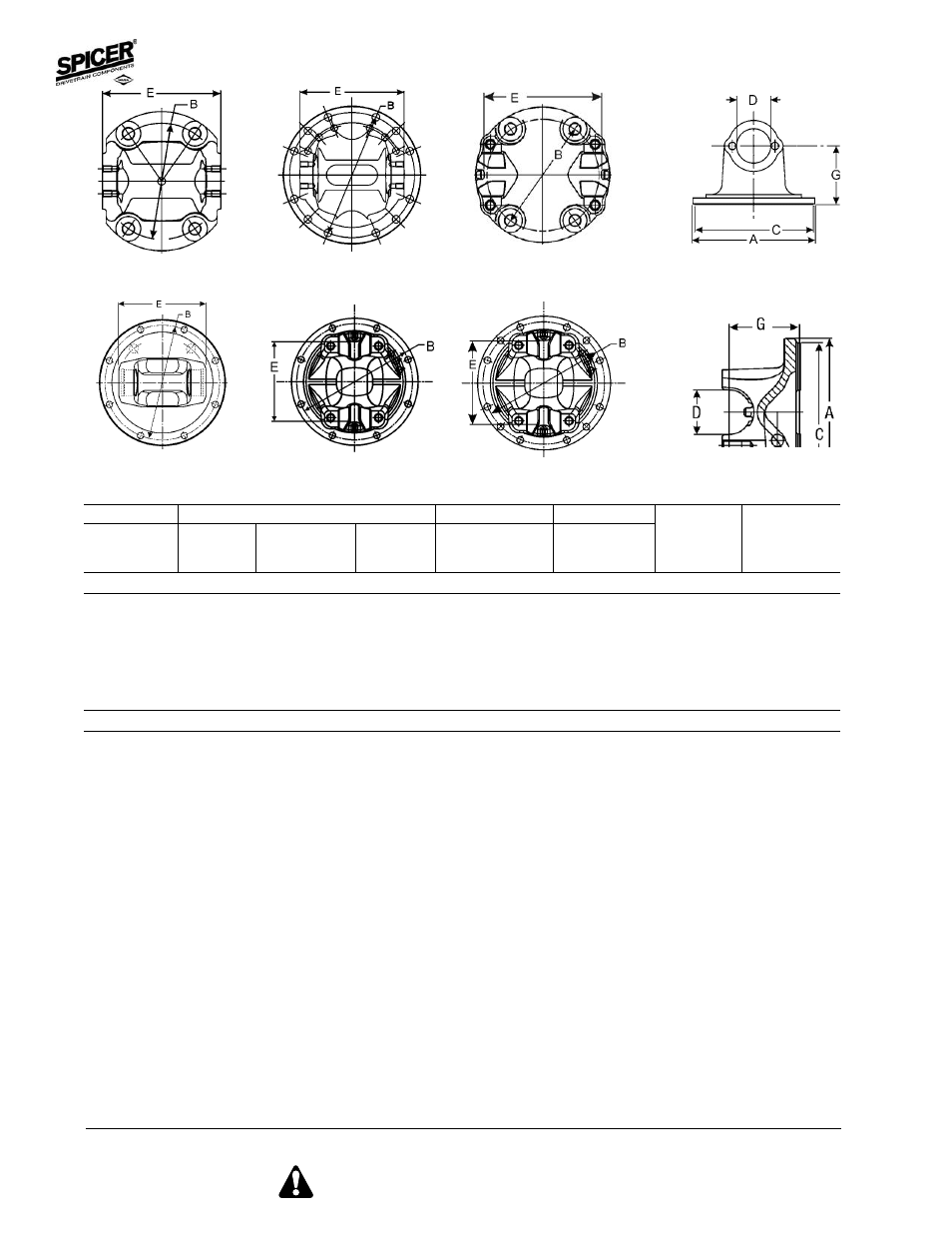

Figure 4
Figure 1
Figure 5
Figure 2
Figure 6
Figure 3
Side View of
Figures 1, 2 & 4
Side View of
Figures 3, 5 & 6
Important: See Safety Information in General Information Section (J300P-GI)
SPL170 SERIES (Continued) E-6.026 (HR STYLE 6.456) D-2.166 USE KIT SPL170X
8.000 7.250 .440-D 12 7.750M 3.386 6 170-2-59-1
8.000 7.250 .441-D 12 7.750M 3.208 2 170-2-19
Mates with std. 1810 series companion flange
8.000 7.250 .479-D 12 7.750M 3.208 2 170-2-29•
12.2mm bolt holes on 1810 bolt pattern
8.000 7.250 .479-D 12 7.750M 3.375 6 170-2-39-1
12.2mm bolt holes on 1810 bolt pattern
SPL250 SERIES E-5.986 D-2.362 USE KIT SPL250X
7.087 5.906 .591-D 4 — 3.583 5 250-2-10491-1
180mm flange w/serrated flange face
7.087 5.906 .551-D 4 — 3.583 1 250-2-15
180mm flange w/serrated flange face
8.000 7.250 .439-D 12 7.750M 3.500 2 250-2-19
250-2-19 was replaced by 250-2-49-1 ; Mates with std. 1810 series companion flange
8.000 7.250 .440-D 12 7.750M 3.524 6 250-2-49-1
Half round metric flange
8.000 7.250 .479-D 12 7.750M 3.524 6 250-2-39-1
Half round metric flange
