J 175 S N

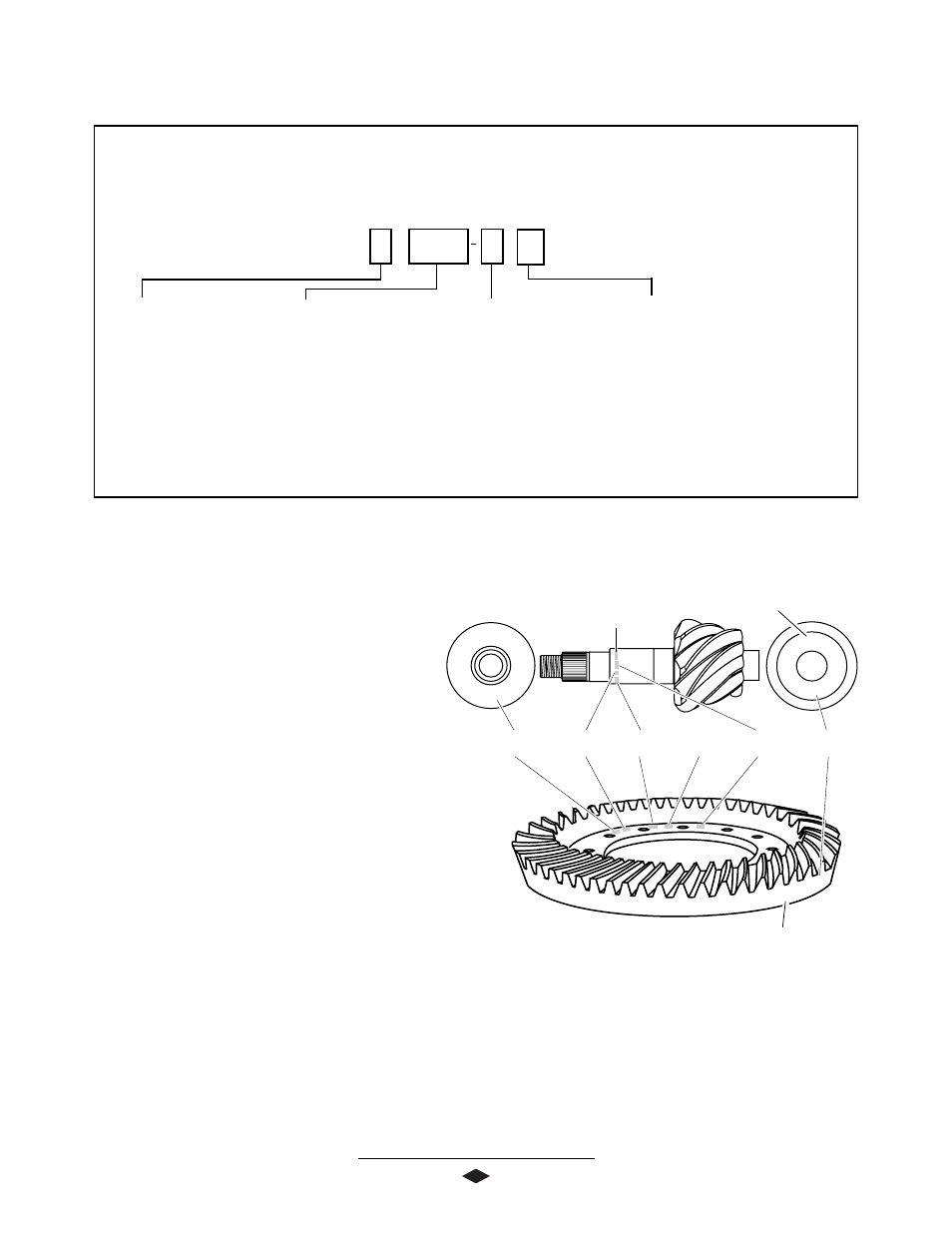

GEAR SET IDENTIFICATION
Manufacturer's Date- Date gear set was made.
Spicer Trademark- Company logo and location of
manufacturing facility.
597000C0- Part number of pinion. (TYPICAL)
Tooth Combination(i.e. 41-11)- Indicates the pinion
has 11 teeth and the ring gear has 41 teeth which
results in a 3:73:1 ratio.
Matched Set Number- Spicer ring gears and pinions
are manufactured as matched sets. Both ring gear and
pinion are marked with a corresponding number (i.e.
260), which identifies them as a matched set.
A gear set that does not have the same match set
numbers should not be run together. If either ring gear
or pinion require replacement, a new matched set must
be used.
Backlash Etch- Indicates backlash setting for assembly.
Pinion Etch- Indicator for proper pinion position shim
stack up. (See
Pinion Position Pg. 15)
HEAT
CODE
SPICER
TRADEMARK
MFG.
DATE MATCHED
SET NUMBER
PART
NUMBER
TOOTH
COMBINATION
41-11
260
SPICER
TRADEMARK
+15
L10
PINION
ETCH
BACKLASH
ETCH
260
Options
(N = *No-SPIN
® Differential)
Family
(J & W) Nominal Load
Carrying Capacity
(175 = 17,500 Lbs.)
(190 = 19,000 Lbs.)
(210 = 21,000 Lbs.)
(220 = 22,000 Lbs.)
(230 = 23,000 Lbs.)
* No-SPIN ® is a registered trademark of Tractech
MODEL IDENTIFICATION NUMBERING SYS-
TEM
Gearing Type
(S = Single Reduction)
