8

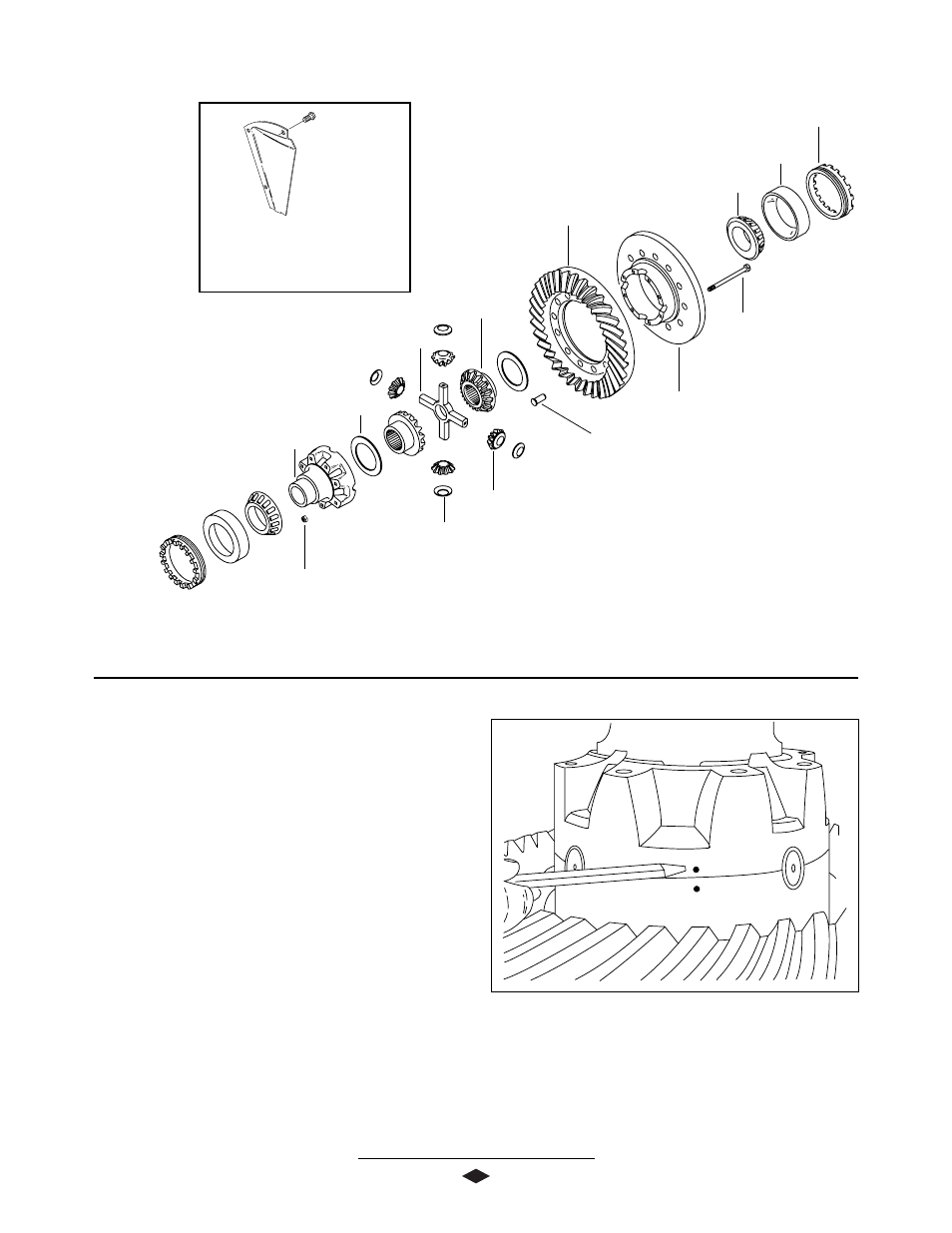

DIFFERENTIAL DISASSEMBLY
Used on W Model carriers that do
not have oil scoope cast integrally
to the flange half of the differen-
tial case.
Differential Case Cap Half
Adjusting Ring
Ring Gear
Differential Case Nut
Differential Gear Thrust Washer
Differential Bearing Cone
Differential Case Bolt
(115-135 Lb-Ft)
(156-183 N-m)
Differential Case Flange Half
Ring Gear Rivet
(45-50 tons)
(41-45 metric tonnes)
Differential Side Gear
Differential Cross Shaft
Figure 3
1. Match mark differential case halves with punch or
chisel for correct alignment in reassembly.
See
Figure 3.
2. Remove differential case bolts and lift off differential
case cap half.
3. Remove differential gear thrust washer and differen-
tial side gear.
4. Lift out differential cross shaft, differential pinion
mates, and differential pinion mate thrust washers.
5. Remove second differential side gear and differen-
tial side gear thrust washer.
Differential Pinion Mate
Differential Pinion MateThrust Washer
Differential Bearing Cup
NOTE: Torque specifications, shown
on illustration, apply only to J Model.
See Page 21 for W Model torque
specifications.
