YOKE SHAFTS
J300P-8
6 Important: See Safety Information in General Information Section (J300P-GI)
• Part is discontinued  Part is available until supply is exhausted © Not sold separately
K

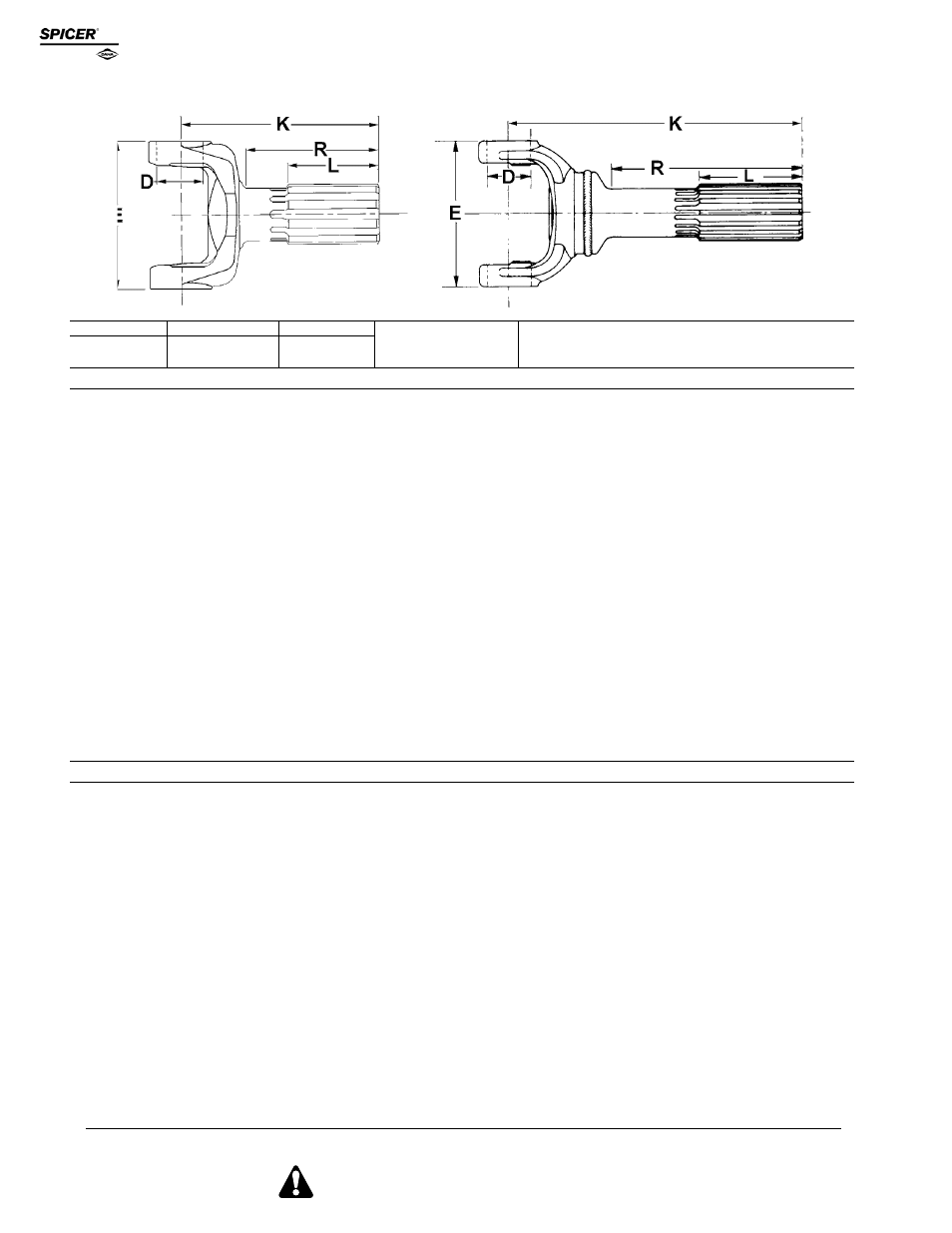

Centerline to
End of Spline
R
End of Spline to
Point of Radius
L
Spline
Length
Yoke Shaft
Part Number
Notes
1550 SERIES E=5.250 (UB,BS STYLE E=4.964) D=1.375 USE KIT 5-155X, SPL70X
1.750-16 Spline
4.750 2.500 1.438 4-82-341•
6.375 4.156 2.500 4-82-601-1 High angle yoke
6.812 4.250 2.500 4-82-371 High angle yoke
7.560 4.156 2.500 4-82-601-2 High angle yoke
7.940 5.375 3.000 4-82-411-7 High angle yoke
8.438 5.875 3.000 4-82-411-1 High angle yoke
8.625 5.812 3.000 4-82-401 High angle yoke
9.750 4.531 2.875 4-82-361-2• High angle yoke
9.750 7.094 3.000 4-82-561
2.000-16 Spline
5.844 3.594 2.250 4-82-511 OEM only
6.120 4.484 3.000 4-82-211
2.500-16 Spline
4.562 2.750 1.562 4-82-191
4.812 2.938 1.562 4-82-201
5.172 3.328 1.562 4-82-621-1
5.609 3.672 1.562 4-82-621-3
6.188 4.250 1.562 4-82-621-4
6.672 4.734 1.562 4-82-621-2
1610 SERIES E=5.312 (HR STYLE E=5.312) D= 1.875 USE KIT 5-279X, 5-674X
2.000-16 Spline
7.297 4.547 3.000 5-82-871
7.875 5.440 2.750 5-82-921
7.875 5.312 3.000 5-82-211
9.531 5.969 3.000 5-82-791-2
9.812 6.250 3.000 5-82-791-4•
10.063 6.500 3.000 5-82-791-3
10.438 6.875 3.500 5-82-831-4
10.812 7.562 3.500 5-82-781
12.063 8.500 3.500 5-82-831-1
13.063 9.063 3.500 5-82-961-3 High angle yoke
14.063 10.063 3.500 5-82-961-5 High angle yoke
14.406 10.406 3.500 5-82-961-7 High angle yoke
14.562 10.562 3.500 5-82-961-6 High angle yoke
15.000 11.000 3.500 5-82-961-1 High angle yoke
15.500 11.500 3.500 5-82-961-2 High angle yoke
2.500-16 Spline
12.969 9.094 4.000 5-82-1011M Metric Yokeshaft
