Spicer Kits & Small Parts Section of J300P - Manual (Page 17)

17
J300P-9A

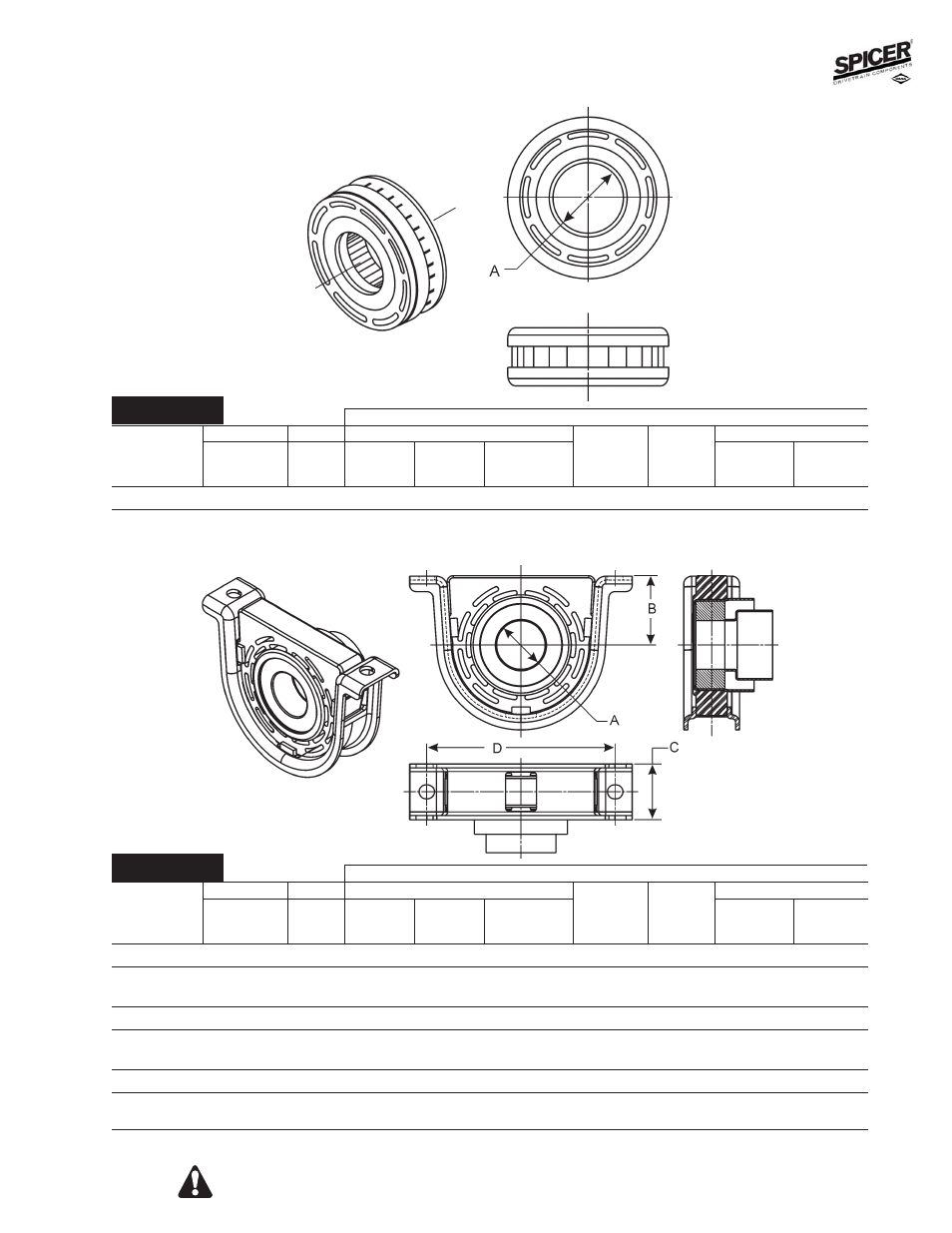

Center Bearing Detail
Important: See Safety Information in General Information Section (J300P-GI)
• Part is discontinued „ Part is available until supply is exhausted Ž Not sold separately
A = 1.750 Bearing I.D.
211304X• ~ ~ ~ ~ ~ ~ ~ ~ ~
A = 1.771 Bearing I.D. D = 7.622 Bolt Hole/Stud Size = .559
212135-1X 2.690 2.250 230148 212133X 580932 ~ ~ ~ ~
232930 Boot Can; Rubber cushion with canister
A = 1.771 Bearing I.D. D = 7.622 Bolt Hole/Stud Size = .620 (H)
212261-1X 2.690 2.250 233077 212133X 580932 ~ ~ ~ ~
less boot can; Rubber cushion with canister
A = 1.968 Bearing I.D. D = 7.620 Bolt Hole/Stud Size = .620 (H)
212142-1X 2.780 2.250 230164 212141X 580933 ~ ~ ~ ~
232944 Boot Can; Rubber cushion with canister
Parts not sold separately — Shown for informational purposes only
B C Center Bearing Major Parts Retainers
Center Front Rear
Bearing Centerline Bracket Rubber Bearing & Slinger Slinger
Assy Part To Mounting Bracket Part Cushion Retainer Part Part
Number Surface Width Number Part Nbr. Assy. Number Number Bottom Top
Style 21
Parts not sold separately — Shown for informational purposes only
B C Center Bearing Major Parts Retainers
Center Front Rear
Bearing Centerline Bracket Rubber Bearing & Slinger Slinger
Assy Part To Mounting Bracket Part Cushion Retainer Part Part
Number Surface Width Number Part Nbr. Assy. Number Number Bottom Top
Style 22
