Spicer Kits & Small Parts Section of J300P - Manual (Page 13)

13
J300P-9A

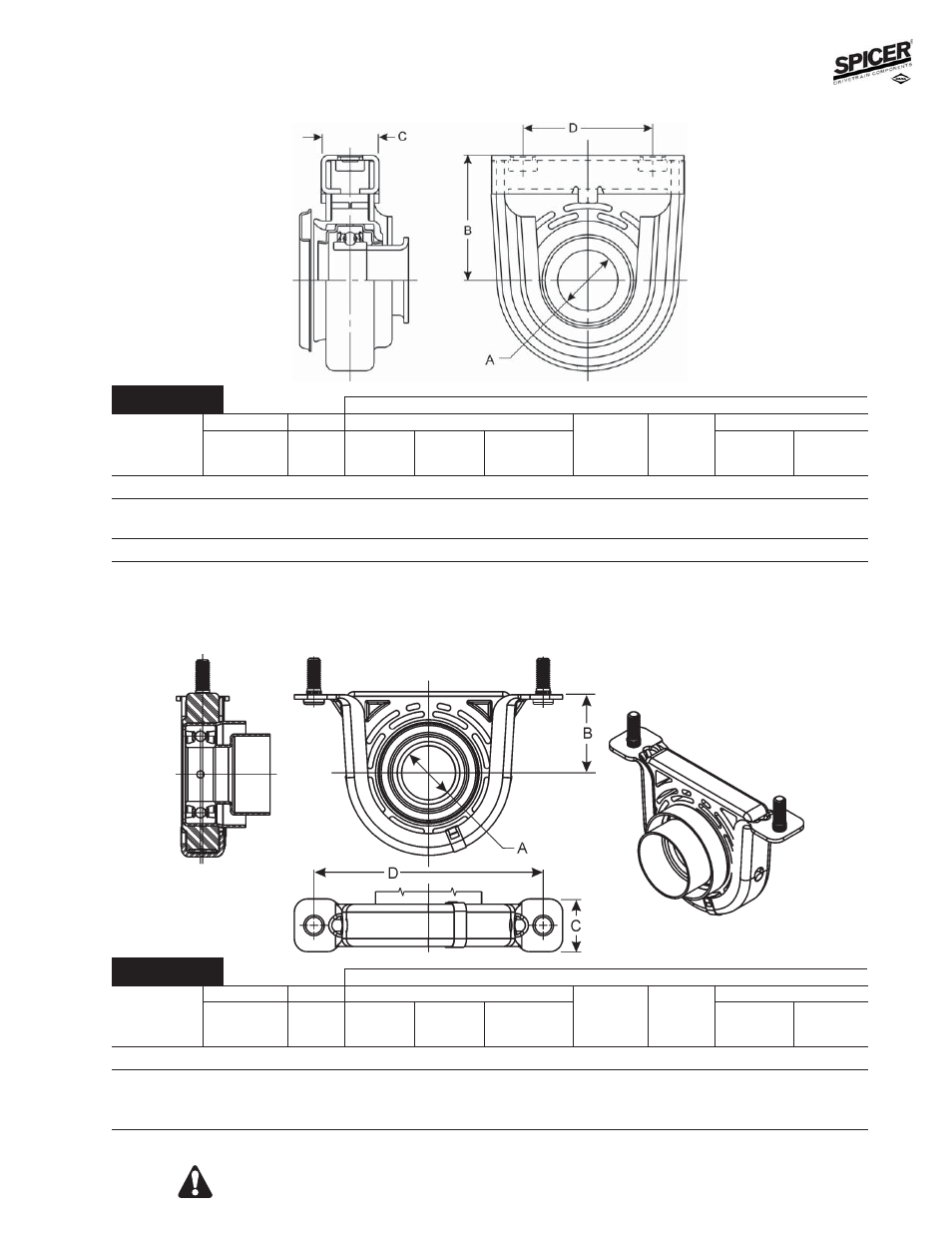

Center Bearing Detail
Important: See Safety Information in General Information Section (J300P-GI)
• Part is discontinued „ Part is available until supply is exhausted Ž Not sold separately
A = 1.574 Bearing I.D. D = 3.380 Bolt Hole/Stud Size = .437 X 14TH (nut)
211848-1X 3.250 1.742 232465 231212 210865-1X 231286 232662 ~ ~
Nuts are incorporated in bracket
A = 1.574 Bearing I.D. D = 3.380 Bolt Hole/Stud Size = M10 X 1.5TH (nut)
211963-1X 3.250 1.742 232683 231212 210865-1X 231286 232662 ~ ~
Nuts are incorporated in bracket
A = 1.574 Bearing I.D. D = 6.620 Bolt Hole/Stud Size = M10 X 1.5TH (stud)
212028-1X 2.250 1.226 232820 212027X 580924 ~ ~ 3-95-139 ~
rubber cushion w/canister, studs in bracket; 232817 Boot Can
Parts not sold separately — Shown for informational purposes only
B C Center Bearing Major Parts Retainers
Center Front Rear
Bearing Centerline Bracket Rubber Bearing & Slinger Slinger
Assy Part To Mounting Bracket Part Cushion Retainer Part Part
Number Surface Width Number Part Nbr. Assy. Number Number Bottom Top
Style 16
Parts not sold separately — Shown for informational purposes only
B C Center Bearing Major Parts Retainers
Center Front Rear
Bearing Centerline Bracket Rubber Bearing & Slinger Slinger
Assy Part To Mounting Bracket Part Cushion Retainer Part Part
Number Surface Width Number Part Nbr. Assy. Number Number Bottom Top
Style 17
