Center bearing detail, Style 14, J300p-9a – Spicer Kits & Small Parts Section of J300P User Manual
Page 11
11
J300P-9A

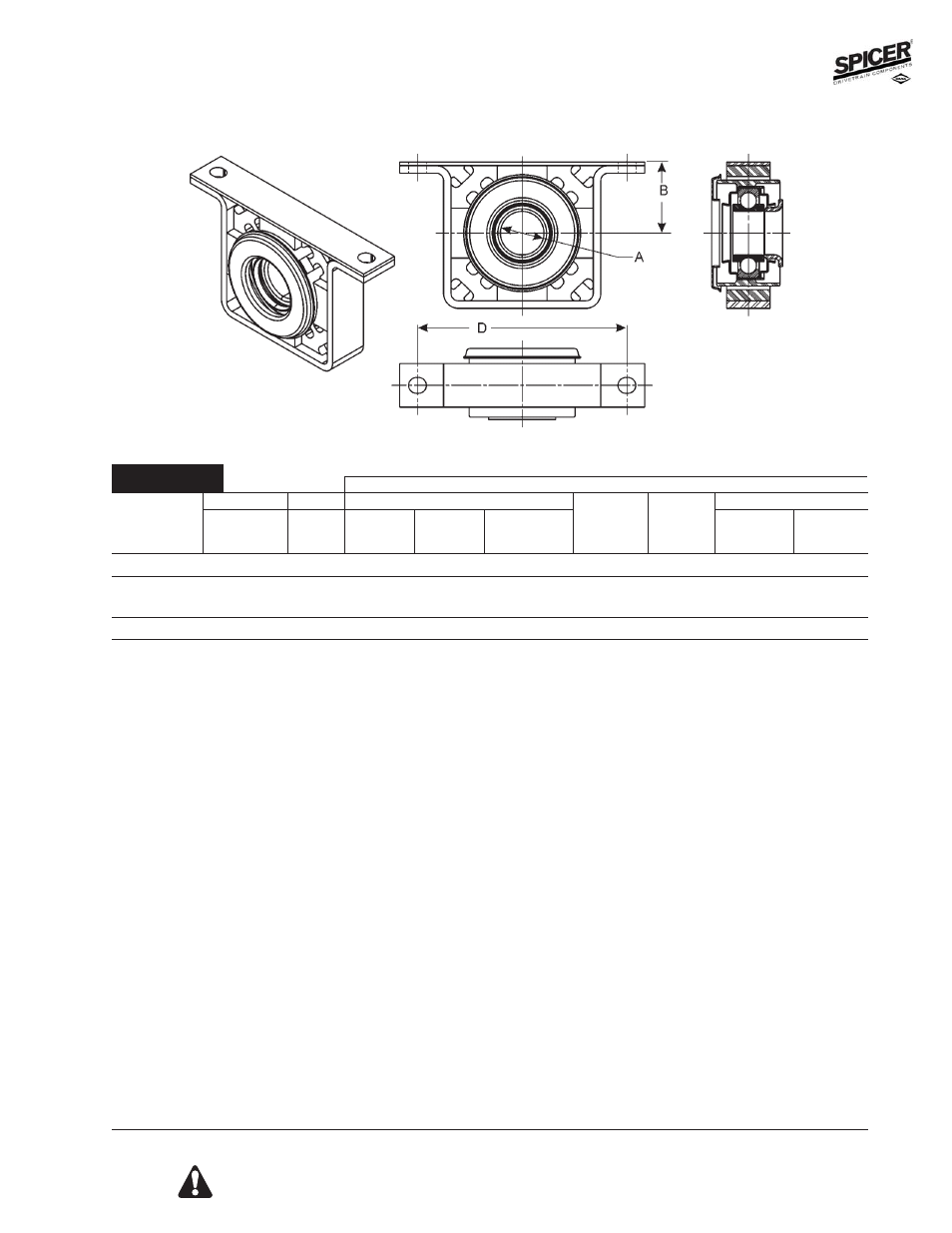

Center Bearing Detail
Important: See Safety Information in General Information Section (J300P-GI)
•
Part is discontinued
Part is available until supply is exhausted
Not sold separately
A = 1.378 Bearing I.D. D = 6.625 Bolt Hole/Stud Size = .560 (H)
212088-1X•
2.250
~
212087X
231286
231256
~
~
~
~
Square bracket w/thin plate
A = 1.375 Bearing I.D. D = 6.625 Bolt Hole/Stud Size = 1.142 X .503 (H)
5001874
2.250
~
~
~
~
231286
231256
~
~
Square bracket w/thin plate
Parts not sold separately — Shown for informational purposes only
B
C
Center Bearing Major Parts
Retainers
Center
Front
Rear
Bearing
Centerline
Bracket
Rubber
Bearing &
Slinger
Slinger
Assy Part
To Mounting Bracket
Part
Cushion
Retainer
Part
Part
Number
Surface
Width
Number
Part Nbr.
Assy.
Number
Number
Bottom
Top
Style 14
