Tenor Data Logger Soft dB inc.

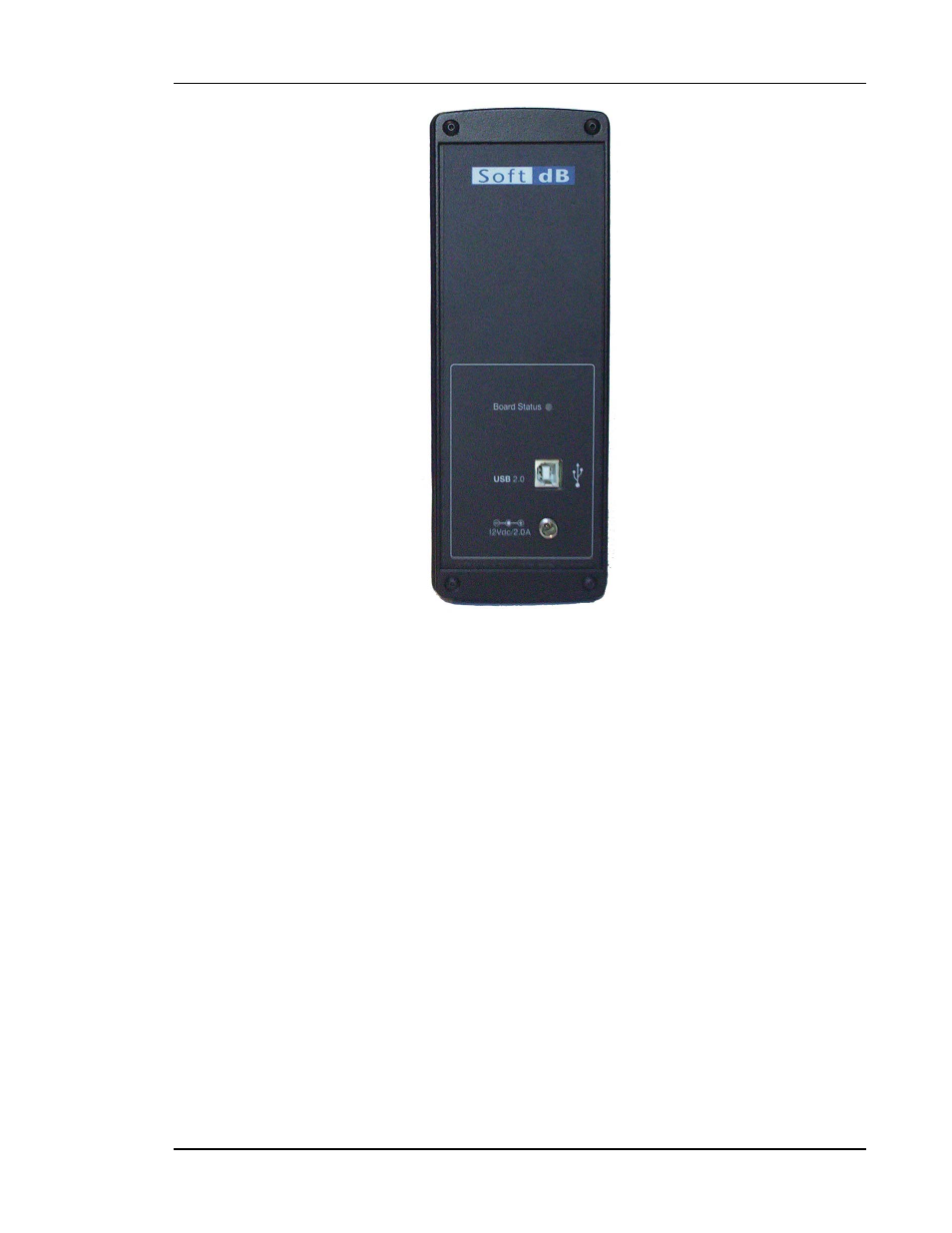

Figure 3: Tenor Hardware Unit (rear)
3.1 Technical details
Here are the hardware technical details:
• External board with a USB link for realtime acquisition
• 8 analog inputs and 4 analog outputs
• Sampling rate of 48.8 kHz per channel
• SNR: 105 dB (input) and 105 dB (output)
• 3 input types: Direct DC, Direct AC and ICP
• Input dynamic range +-4.5 V
• Output dynamic range (+-2V)
• Anti-aliasing filter on outputs and inputs
Note: See Appendix B for more input/output specifications.
User Manual p. 7
