10. Back off the vise and remove the wire from the Crimper. Gently tug the terminal and inspect the
position of the conductor to make sure the crimp is solid and firm.
11. With the terminal crimped to the wire securely, push the boot over the terminal and over the sleeve
of the wire until the terminal protrudes past the boot. A drop of dielectric grease or silicone spray
will assist in sliding the boot in place.
12. Locate the supplied terminal insert guides, the small plastic sleeves, supplied with the kit. These
help ensure a positive connection to the mating coil terminal. Figure 7 illustrates their installation.
Note: DO NOT OVER-CRIMP! It is possible to tear the sleeve of the wire by excessive pressure on the
vise. This will cause a weaker crimp.
TECH NOTES
PUSH UNTIL IT
SNAPS IN PLACE
ALIGN SLOT WITH
CRIMP TAB CREASE
CHAMFER
EDGE OUT

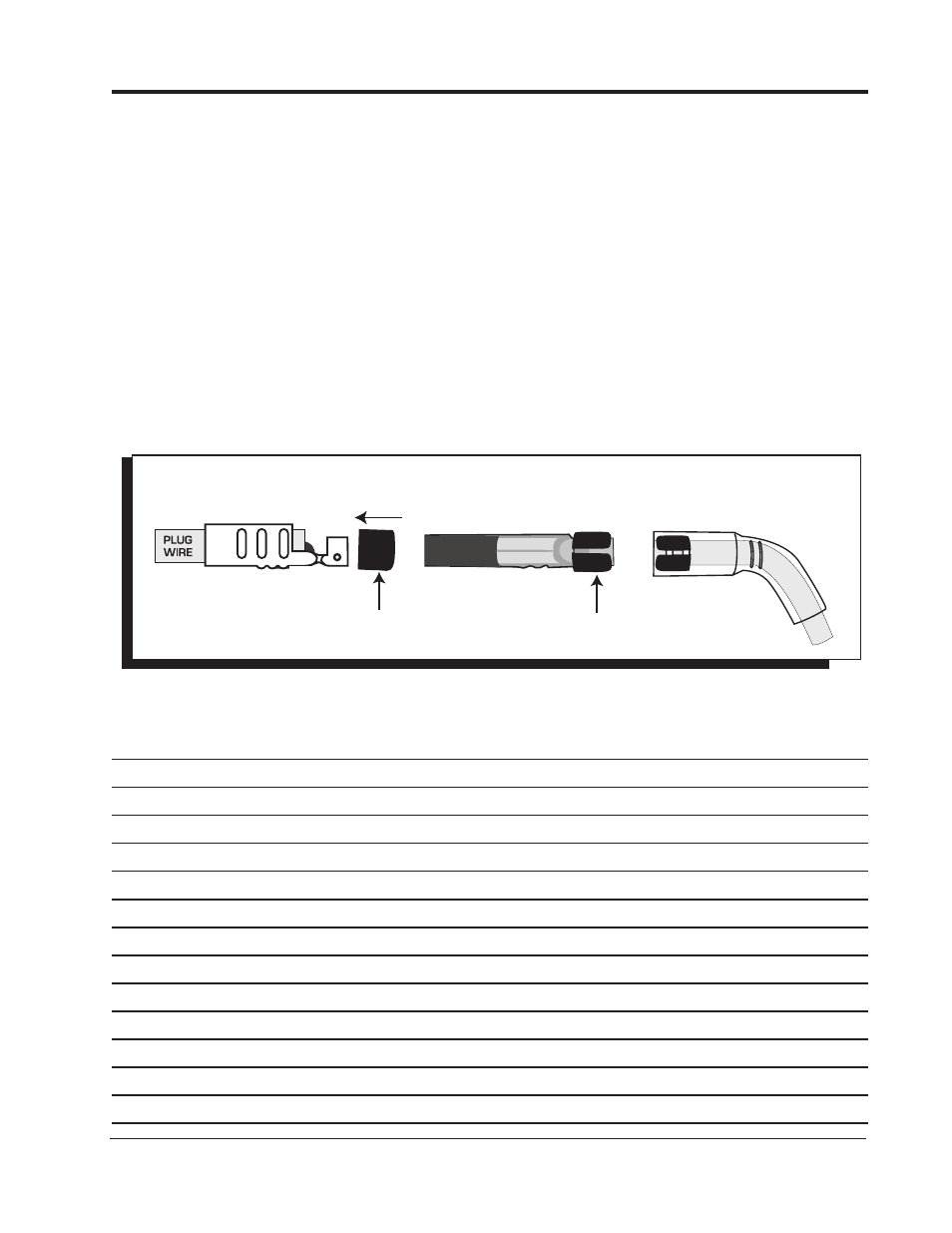

Figure 7 Boot & Installation and Terminal Depth.
