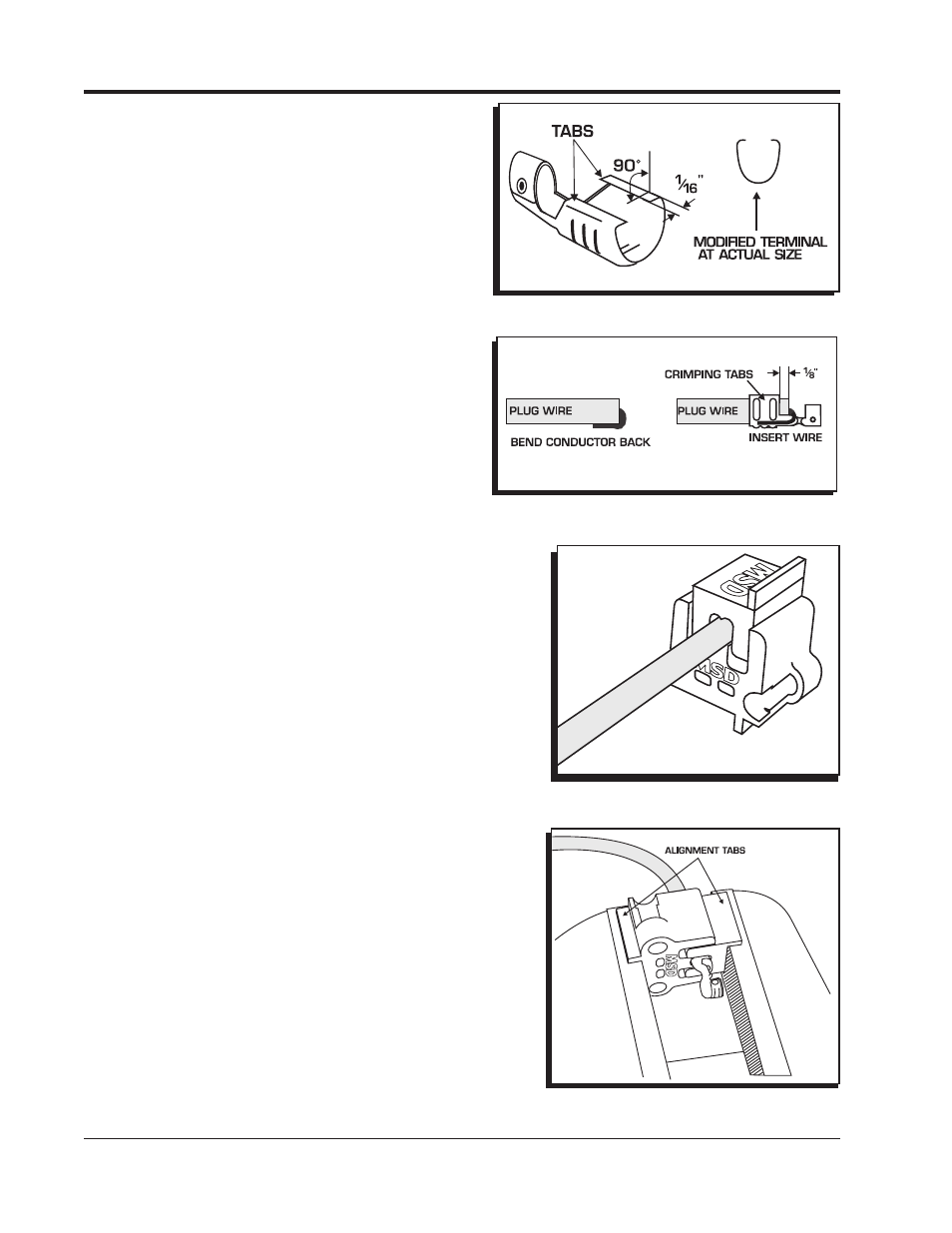

Figure 3 Stripping the Sleeve.
Figure 4 Preparing the Terminals.
4. To achieve the strongest crimp possible, it is required
to bend the crimp tabs over about 90° using needle
nose pliers. Figure 3 shows an example.
5. Bend the conductor back along the wire insulation.
Slide the wire into the terminal with the conductor
positioned so it is in contact with the bottom of
the terminal (Figure 4). Push the wire through until
the sleeve protrudes about 1/8” beyond the crimp
tabs.
6. Position the wire and terminal into the “W” groove
side of the Mini-Stripper-Crimper. Align the crimp
tabs so they are exactly centered on the tip of the
crimp die (Figure 5).
7. Slide the other part of the Mini-Stripper-Crimper over
the wire terminal and lightly press them together.
8. Put the assembly into a vise making sure the align-
ment tabs are on the outside edge of the vise jaws
(Figure 6).
Figure 6 Aligning the Terminal in the Tool.
Figure 5 Aligning the Terminal in the Tool.
9. Slowly close the vise making sure the tool and
terminal stay properly positioned and aligned
(Figure 6). Stop applying pressure when the
terminal ends have wrapped securely around the
sleeve and grip the wire.
