High Lifter Lift Kit for Can-Am Maverick 1000 (2013) - Signature Series User Manual
Page 14
14

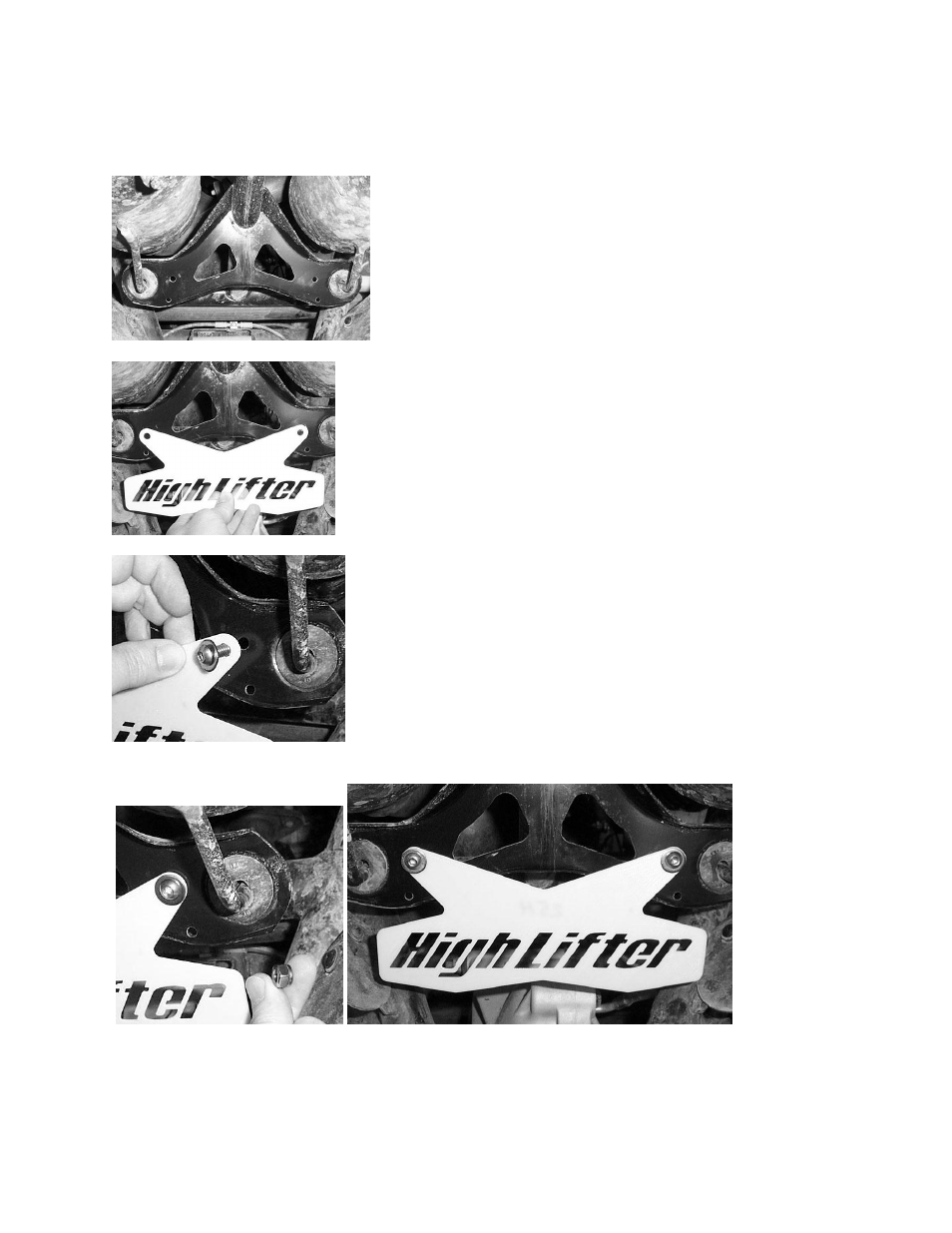

Badge Installation
1. To the rear of the Maverick under the exhaust and above the differential there are four small holes in the
frame. This is where you will mount the logo bracket.
2. Take the logo bracket and line it up with the two top holes in the frame.
3. Next, place a ¼” stainless washer on the ¼” x ¾” button head bolt.
4. Insert the bolt through the plate and frame and secure it to the frame using the ¼” stainless lock nut
provided.
