High Lifter Lift Kit for Can-Am Maverick 1000 (2013) - Signature Series User Manual
Page 12
12

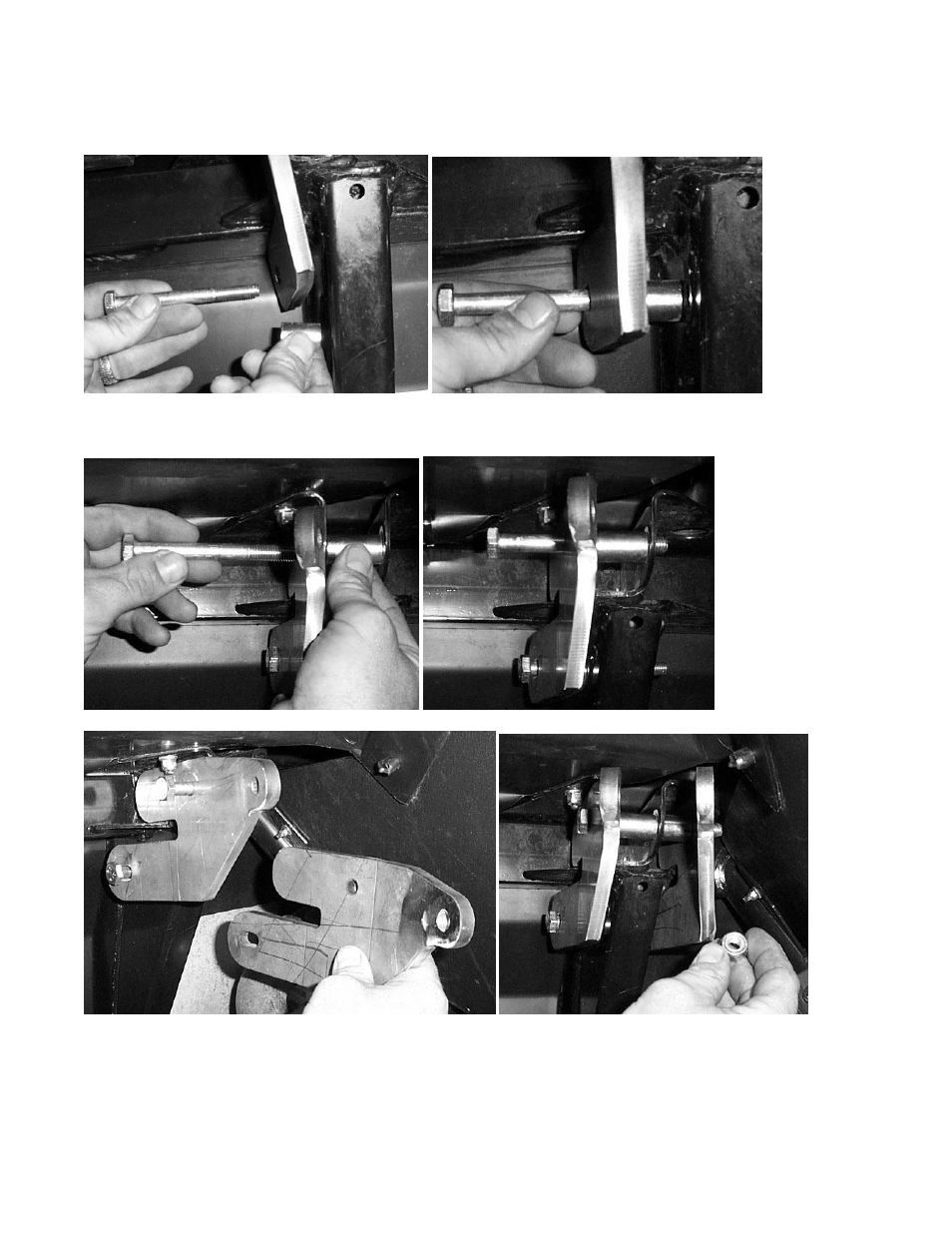

18) Insert a 10mm x 95mm hex bolt through the lower slotted hole in the left outer plate and between the plate
and frame place the Large spacer. Push the bolt all the way through.
19) Next insert a 10mm x 95mm bolt through the plate and shock mount. Insert the XL spacer where the shock
eyelet was originally and finish pushing the bolt through the spacer. On the other side of the shock mount
place the medium spacer on the bolt end.
20) Place the left inner plate on the bolts and fasten the plates tight with the 10mm lock nuts provided.
