High Lifter Lift Kit for Can-Am Maverick 1000 (2013) - Signature Series - Manual (Page 11)

11

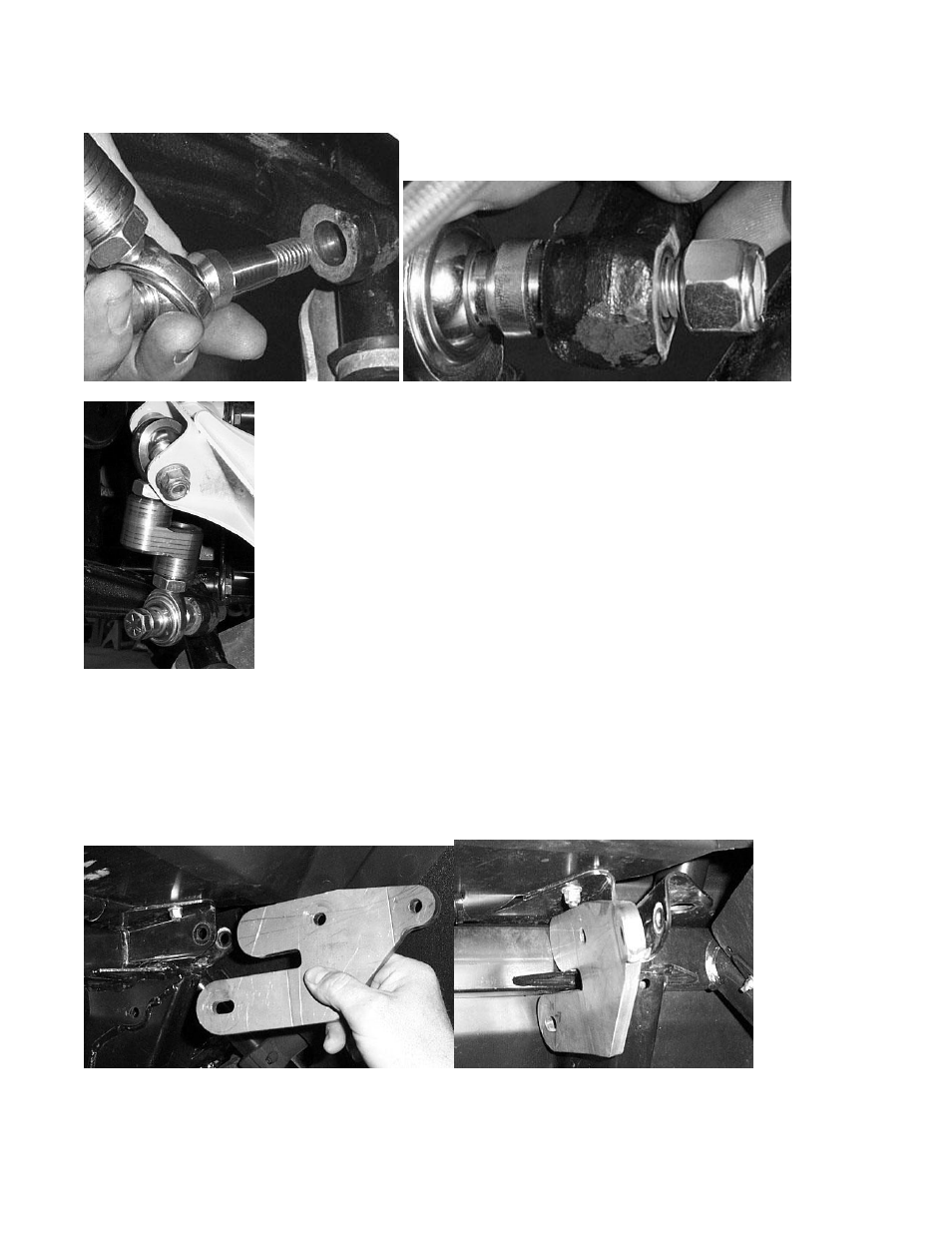

14) Now insert the bolt and cone through the sway bar and fasten it tight using the ½” lock nut.
15) Repeat the steps for the opposite side.
Lift Kit Brackets
16) There are four different lift bracket plates for the rear. Two for the left and two for the right. Keep in mind
that when we refer to the left and right it is from the seated position. Also when we refer to inner and outer
the inner is nearest the frame and outer is to the outside of the body. The outer brackets are smaller than the
inner brackets.
17) Starting from the left side you will connect the left outer and the left inner bracket to the shock mount. The
left brackets when placed on the shock mount will bend to the left or to the outside of the body. See picture
for illustration.
