Logo Plate Installation

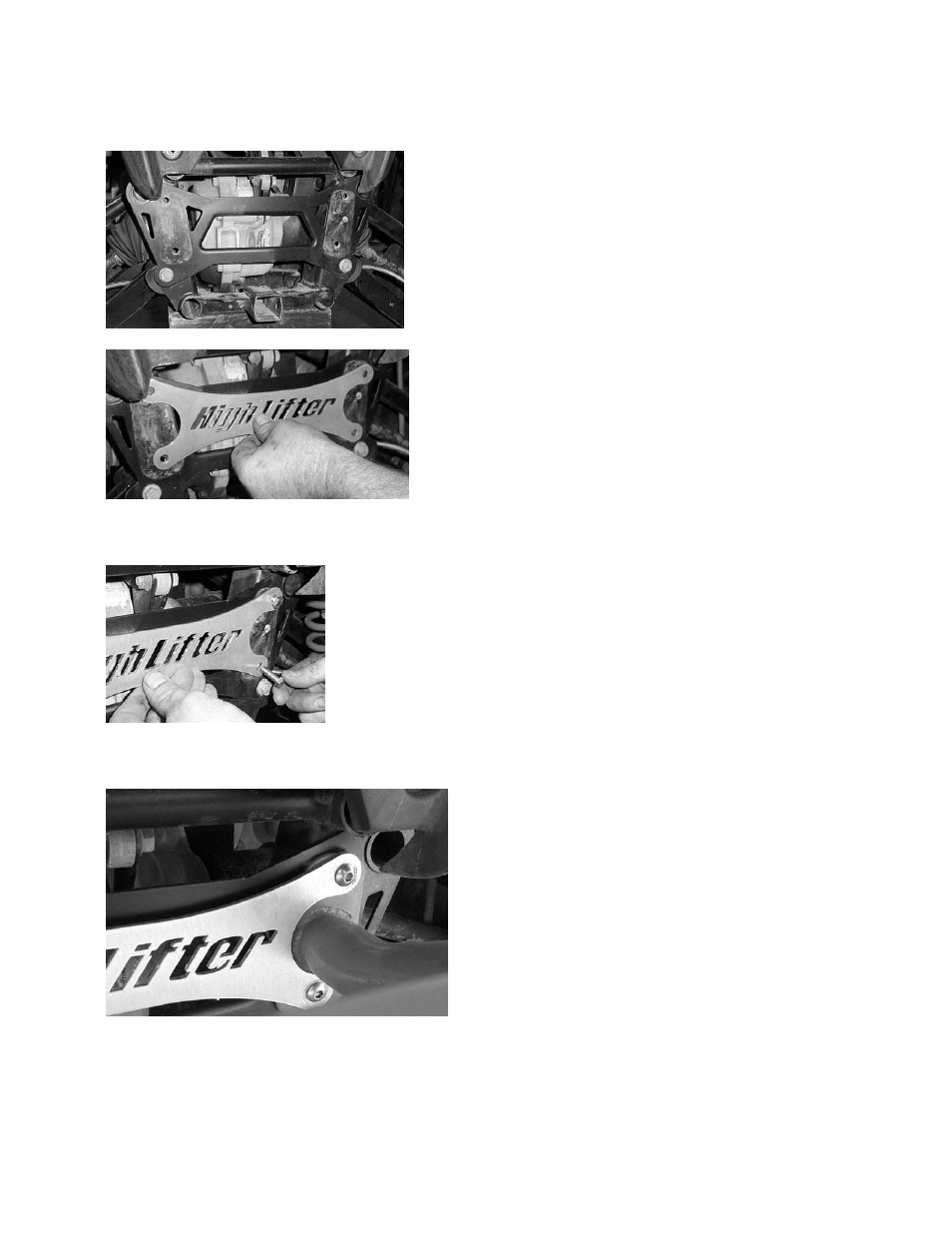

1) There are four bolt holes where the aftermarket bumper attaches to the UTV. They are on the rear of
the UTV frame.
2) Place the logo plate next to the frame aligning the bolt holes in the plate to the holes in the frame.
3) Then connect the plate to the frame using 5/16 x 1” stainless steel button head bolts and 5/16 lock
nuts.
Note: The bolts in the photo are Hex head and were replaced with button head bolts.
4) If you have the aftermarket rear bumper you will need to place the plate over the end of the bumper.
