High Lifter Lift Kit for Polaris 800 RANGER RZR “S” and “4” - Signature Series User Manual
Page 6
6

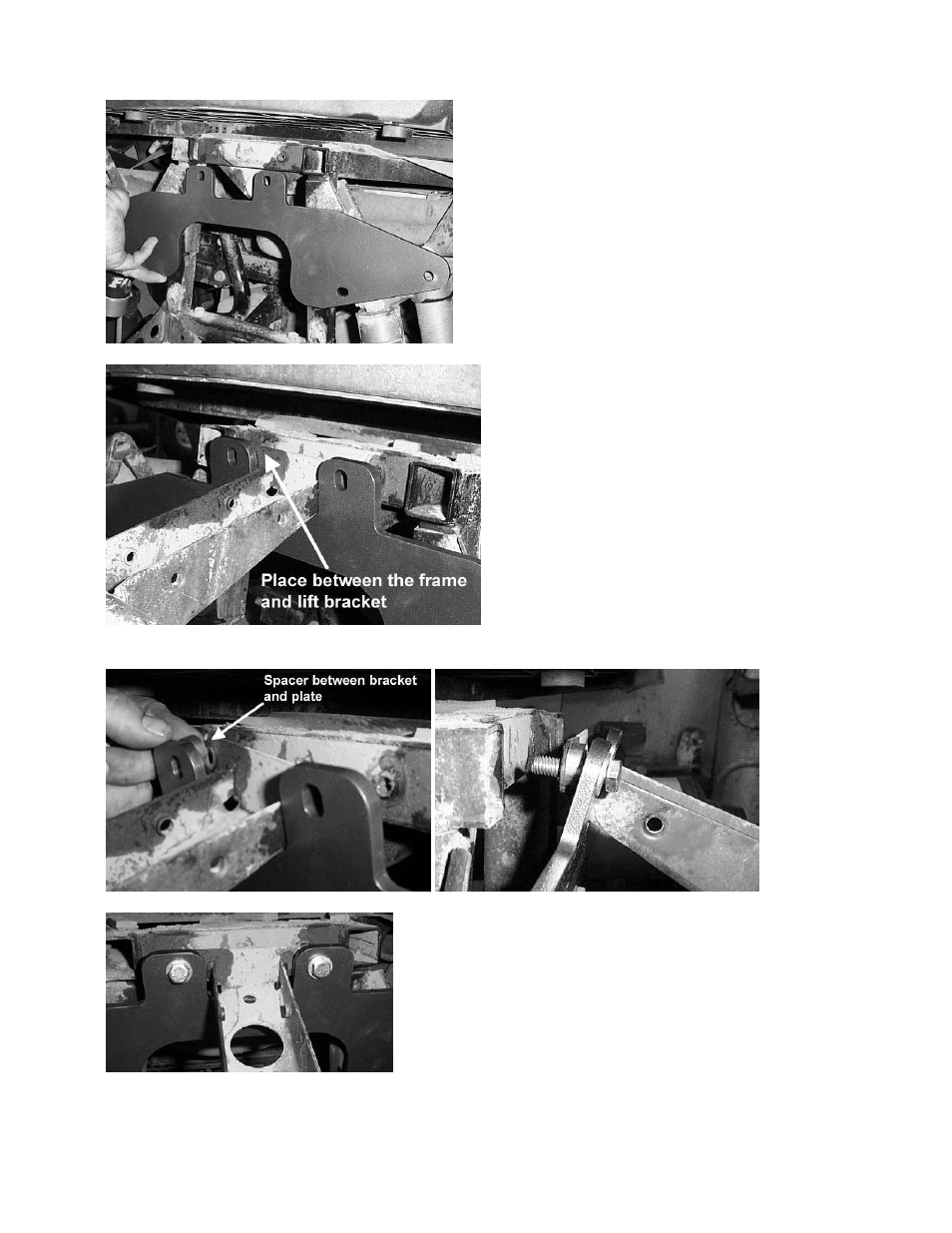

6) Place the large rear lift bracket next to the frame.
7) Insert the rear plastic support bracket between the long rear lift plate and the frame.
8) Place a small spacer between the lift plate and the plastic support bracket. Secure it a 5/16 x 1 ¼ hex
bolts and ¼” flat washers.
NOTE: Make sure to reconnect the bottom of the plastic support bracket to the frame using the stock
hardware.
