Rear installation – High Lifter Lift Kit for Polaris 800 RANGER RZR “S” and “4” - Signature Series User Manual
Page 5
5

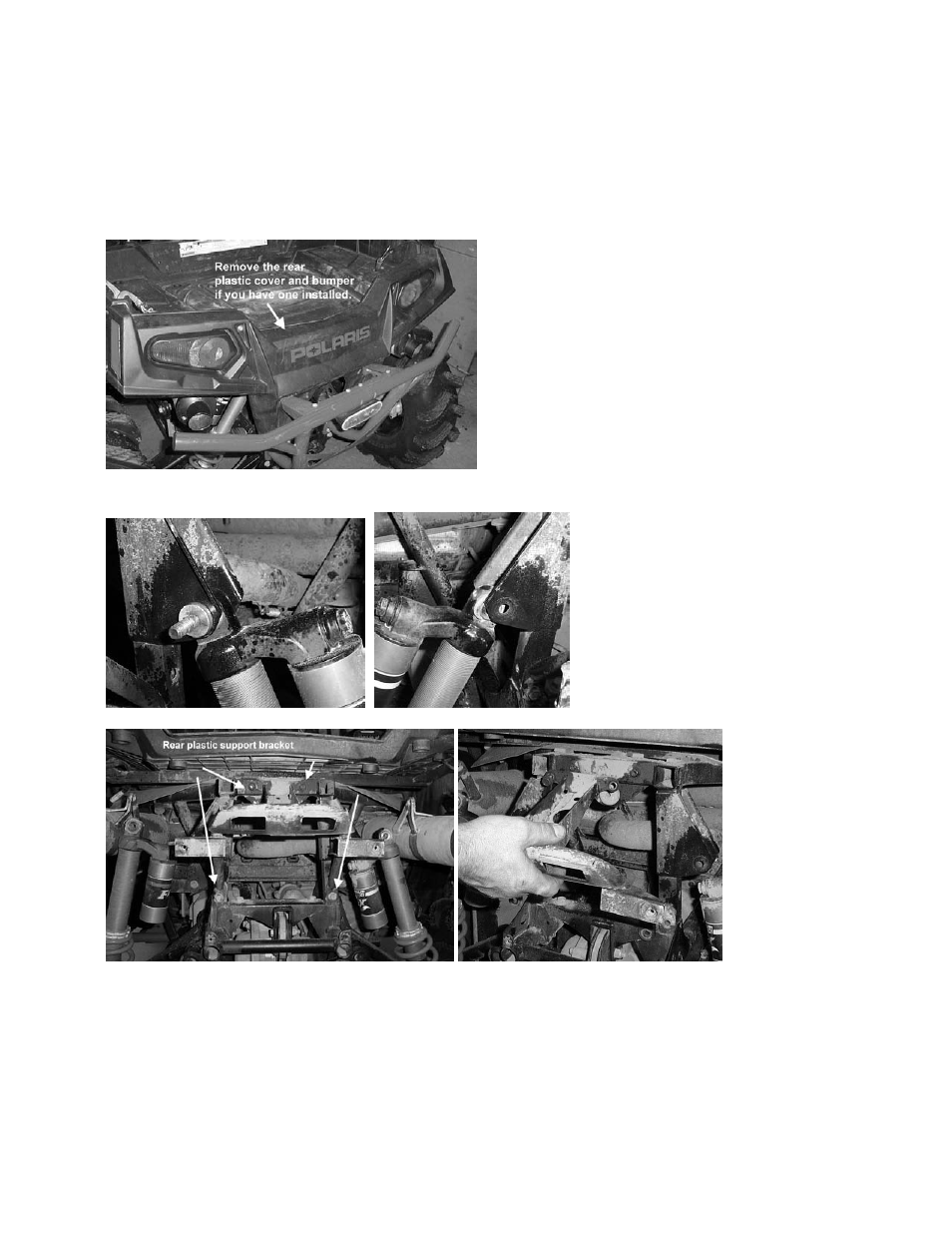

Rear Installation
1) Place UTV transmission in park. Place jack under center of UTV rear end and lift until rear wheels
clear the ground. Be careful to support UTV properly so that it is securely supported so that A-arms
and shocks can droop to full extension.
2) Remove the tires and wheels
3) Remove the rear plastic and if you have purchased the aftermarket rear bumper you will need to
remove it.
4) Disconnect the top of the rear shocks.
5) Remove the rear plastic support bracket.
