S e c o n d H a r d D r i v e I n s t a l l e d
NOTICE: Match the colored strip on the cable with pin 1 on the drive.
Locate the extra connector on the drive cable that is attached to the
first hard drive and attach the connector to the second hard drive.

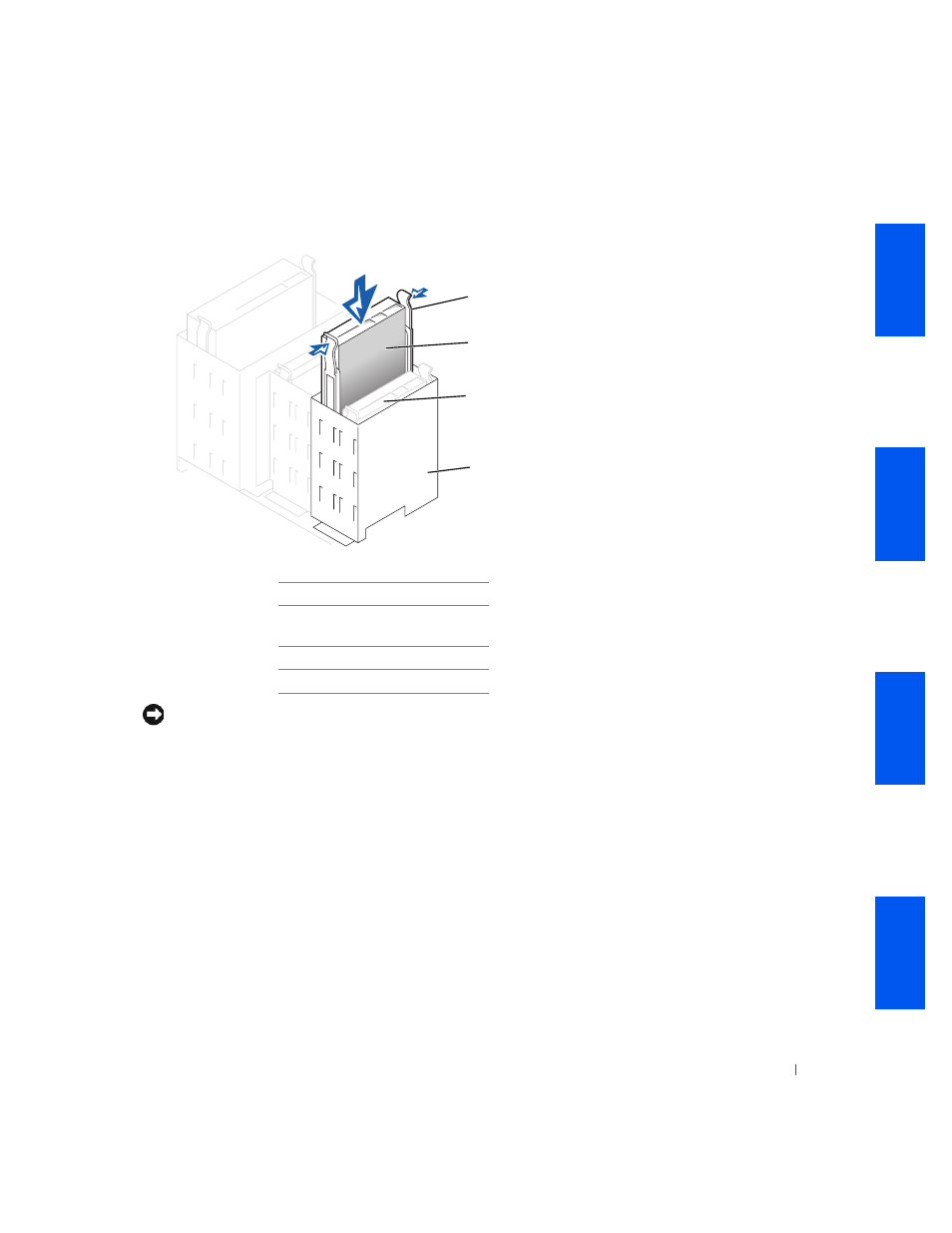

1 Rail tabs (2)
2 Second hard drive in upper
bay
3 First hard drive in lower bay
4 Hard drive cage
1
2
4
3
