H e a t S i n k / B l o w e r A s s e m b l y R e m o v a l — S m a l l Fo r m - Fa c t o r
a n d S m a l l D e s k t o p C o m p u t e r s
NOTICE: Before you remove the heat sink, gently rock the heat sink, and then
slightly twist it as you lift it from the system board.
6 Lift the heat sink or heat sink/blower assembly away from the
microprocessor.
7 On the small form-factor and small desktop computers, remove the
two screws on the blower to remove it from the heat sink.

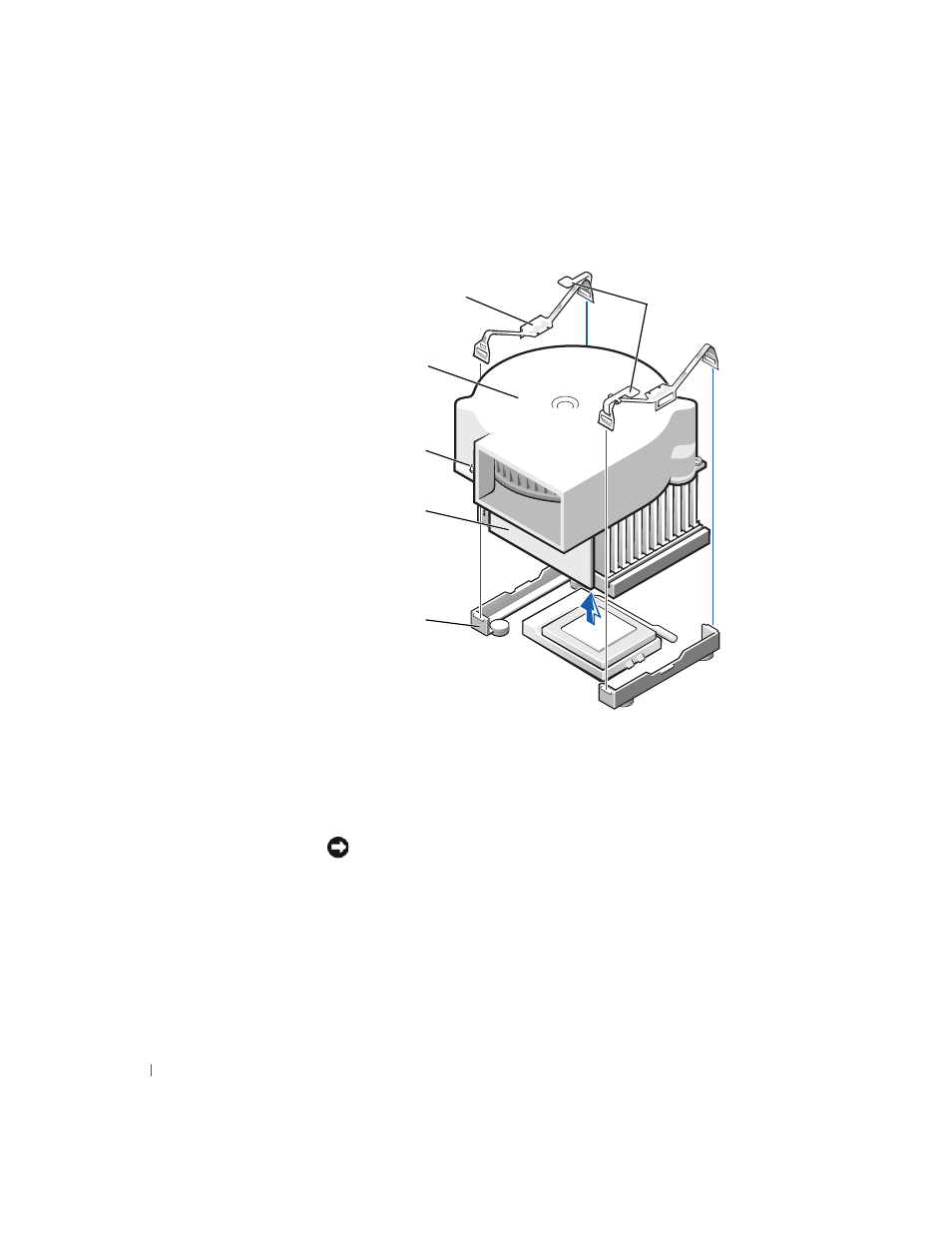

1 Latches (2) 4 Screws (2)
2 Securing clips (2) 5 Heat sink
3 Blower 6 Retention base
