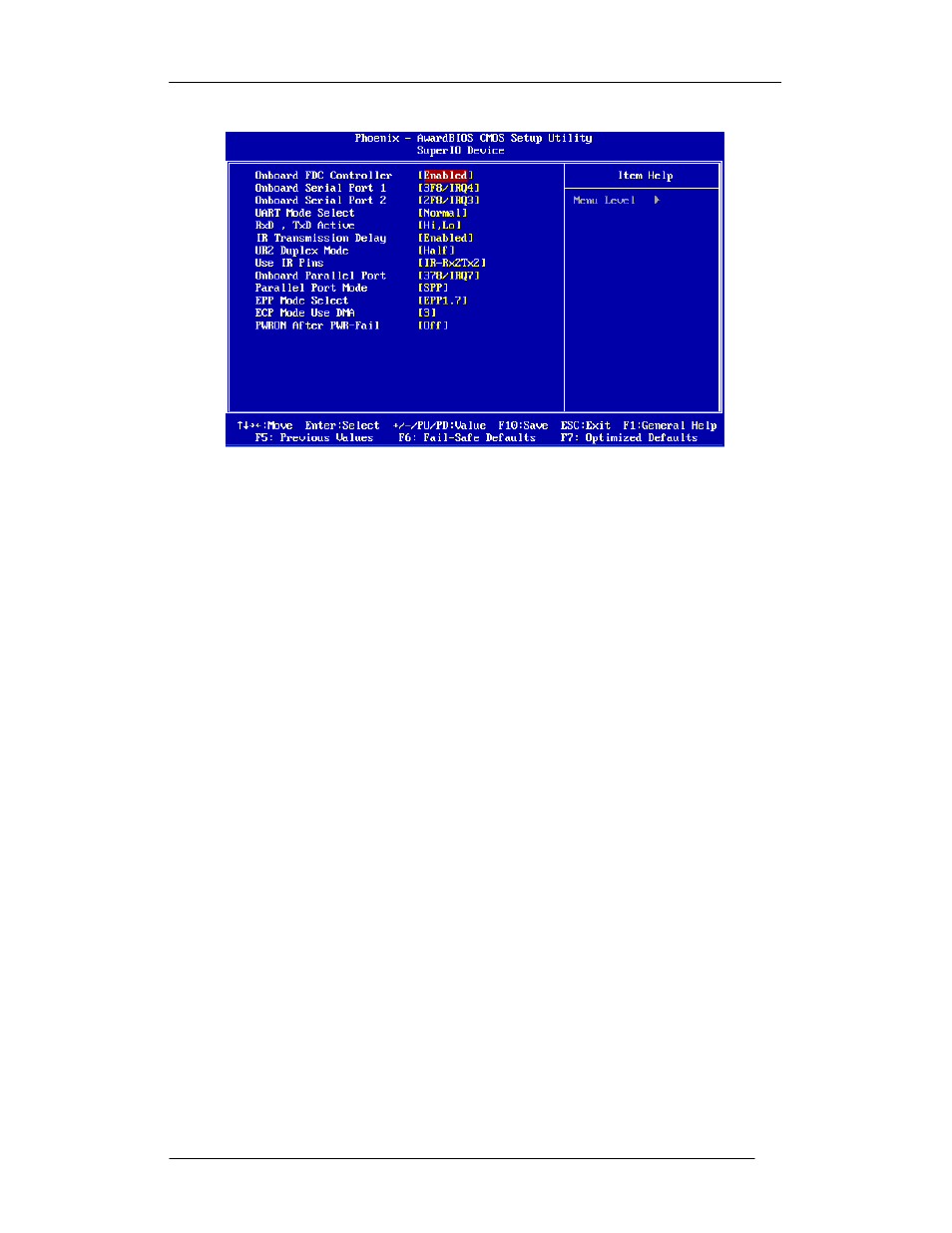

Super IO Device
► Onboard FDC Controller
Options: Enabled, Disabled
Default: Enabled
► Onboard Serial Port 1
Options: Disabled, 3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3, Auto
Default: 3F8/IRQ4
► Onboard Serial Port 2
Options: Disabled, 3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3, Auto
Default: 2F8/IRQ3
► UART Mode Select
Options: IrDA, ASKIR, Normal
Default: Normal
► Onboard Parallel Port
Options: Disabled, 378/IRQ7, 278/IRQ5, 3BC/IRQ7
Default: 378/IRQ7
► Parallel Port Mode
Options: SPP, EPP, ECP, ECP/EPP, Normal
Default: SPP
Onboard Serial Port 3
This option is used to assign the I/O address and Interrupt Request (IRQ) for the
onboard Serial Port.
Options: 280, 288, 2A0, 2A8
Default: 280
