FPC 71X0 User Manual
3-9

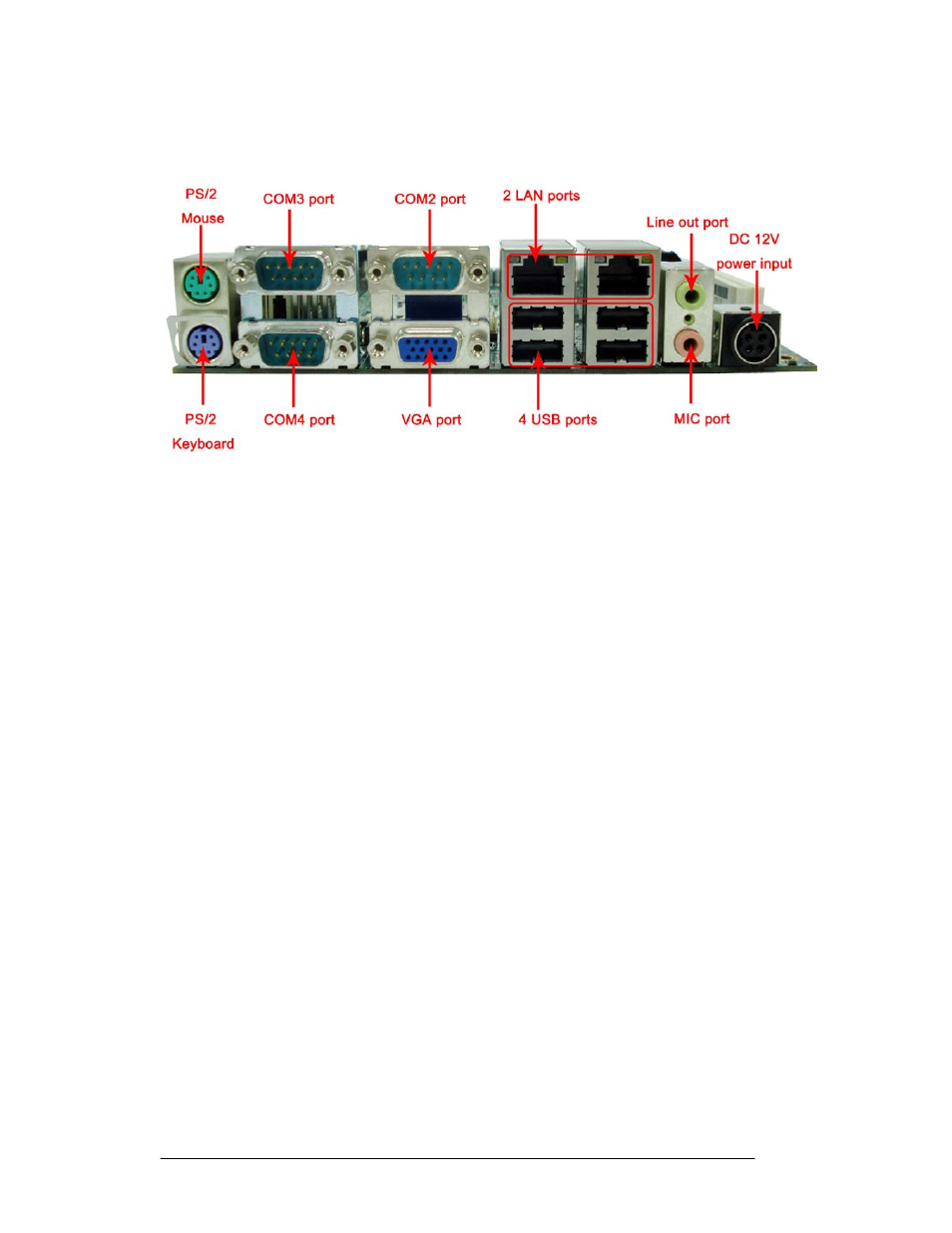

Chapter 3 I
NPUT
/O
UTPUT
C
ONNECTORS
PS/2 Keyboard and PS/2 Mouse
The FPC 71X0 series provides two connector supports PS/2 interface. In other
cases, especially in embedded applications, a mouse is not used. Therefore, the
BIOS standard setup menu allows you to select* “All, But Keyboard” under the “Halt
On”. This allows no-keyboard operation in embedded system applications without
the system halting under POST.
Audio Interface
The VIA VT1708A chipset provided capabilities of VIA HD and supporting the high
definition HD Audio standard for a whole new immersive surround sound
experience. The VIA Vinyl VT1708A deliver top quality audio performance,
supporting the latest 8-channel, 24-bit, 192KHz audio content for an all-round high
fidelity experience. The audio interface includes two jacks, microphone-in and
line-out.
Serial COM Ports
Six RS-232 ports with 16550 UART (or compatible) with 16-byte FIFO buffer. One
optional COM port (COM2) supports RS232/422/485 choice through jumper
setting.
