FPC 71X0 User Manual 4-22
Signal Name Pin Pin Signal Name
VCC 1 2 INDEX
VCC 3 4 DRV_SEL
VCC 5 6 DSK_CH
NC 7 8 NC
NC 9 10 MOTOR
DINST 11 12 DIR
NC 13 14 STEP
GND 15 16 WDATA
GND 17 18 WGATE
GND 19 20 TRACK
NC 21 22 WPROT
GND 23 24 RDATA
GND 25 26 SIDE
Signal Name Pin Pin Signal Name
Line printer strobe 1 14 AutoFeed
PD0, parallel data0 2 15 Error
PD1, parallel data1 3 16 Initialize
PD2, parallel data2 4 17 Select
PD3, parallel data3 5 18 Ground
PD4, parallel data4 6 19 Ground
PD5, parallel data5 7 20 Ground
PD6, parallel data6 8 21 Ground
PD7, parallel data7 9 22 Ground
ACK, acknowledge 10 23 Ground
Busy 11 24 Ground
Paper empty 12 25 Ground
Select 13 N/A N/A

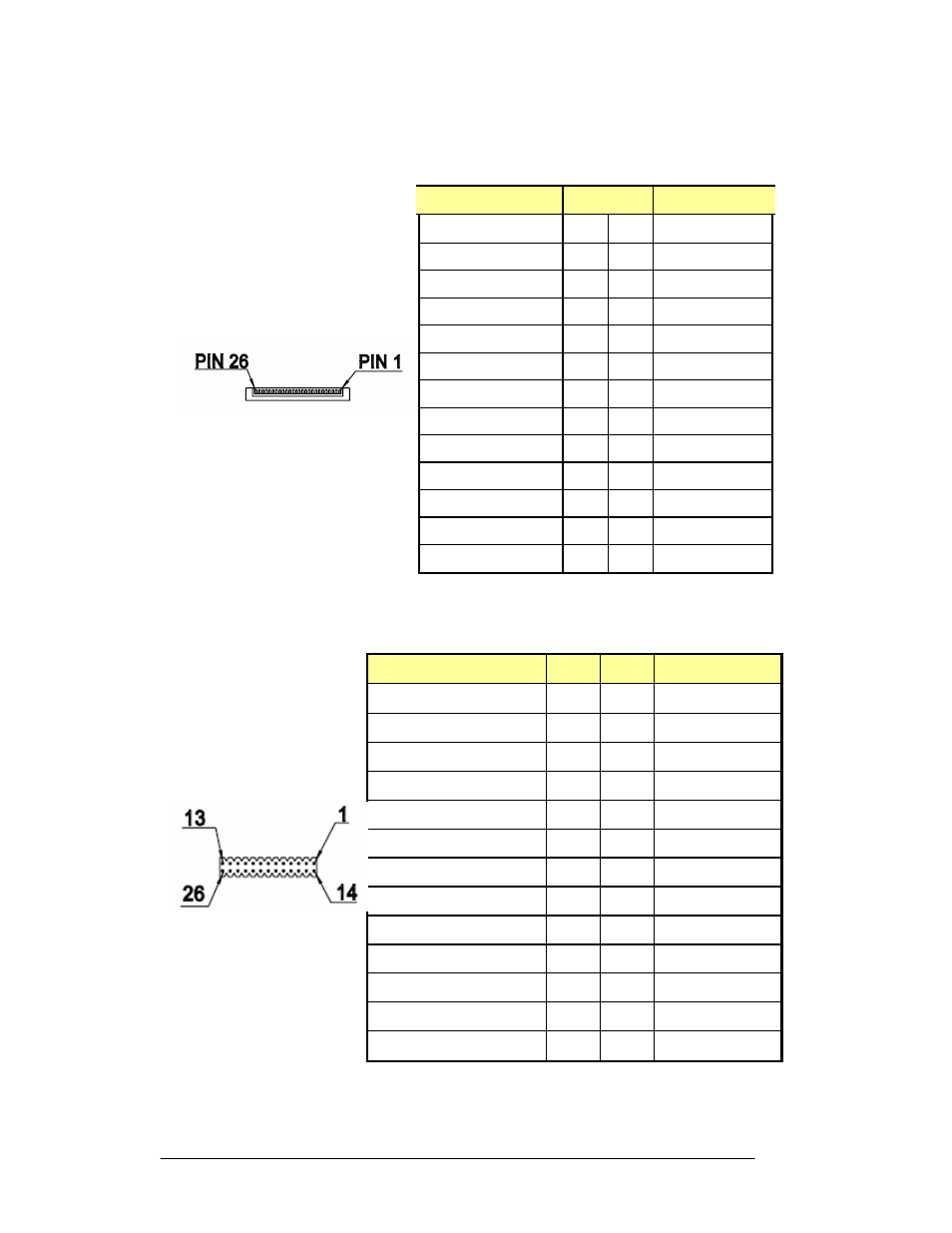

4.4.19 FDD1: Floppy Drive Connector
FDD is a slim 26-pin connector and will support up to 2.88MB FDD.
4.4.20 LPT1: Parallel Port (26Pin Header)
