FPC 71X0 User Manual 4-19

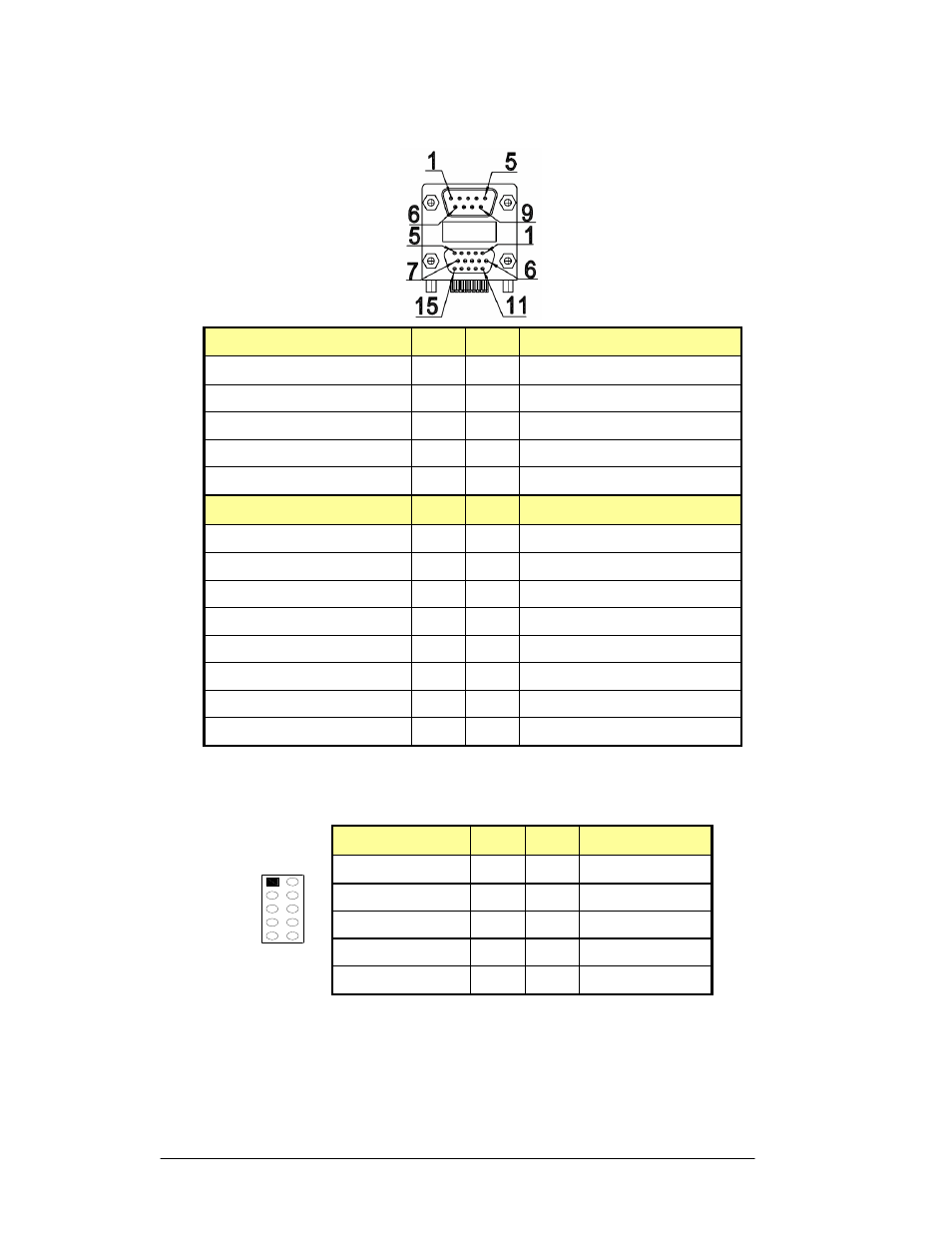

4.4.8 J4: COM2+ CRT (D-SUB 9Pin+D-SUB 15Pin Connector)
Signal Name Pin Pin Signal Name
DCD, Data carrier detect 1 6 DSR, Data set ready
RXD, Receive data 2 7 RTS, Request to send
TXD, Transmit data 3 8 CTS, Clear to send
DTR, Data terminal ready 4 9 RI, Ring indicator
Ground 5
Signal Name Pin Pin Signal Name
Red 1 9 +5V
Green 2 10 Ground
Blue 3 11 NC
NC 4 12 SPD2
Ground 5 13 HSYNC
Ground 6 14 VSYNC
Ground 7 15 SPCLK2
Ground 8
4.4.9 JP5: Digital 4-In 4-Out I/O Connector
Signal Name Pin Pin Signal Name
Ground 1 2 Vcc
Out3 3 4 Out1
Out2 5 6 Out0
Int3 7 8 Int1
Int2 9 10 Int0
