FPC 71X0 User Manual 4-18

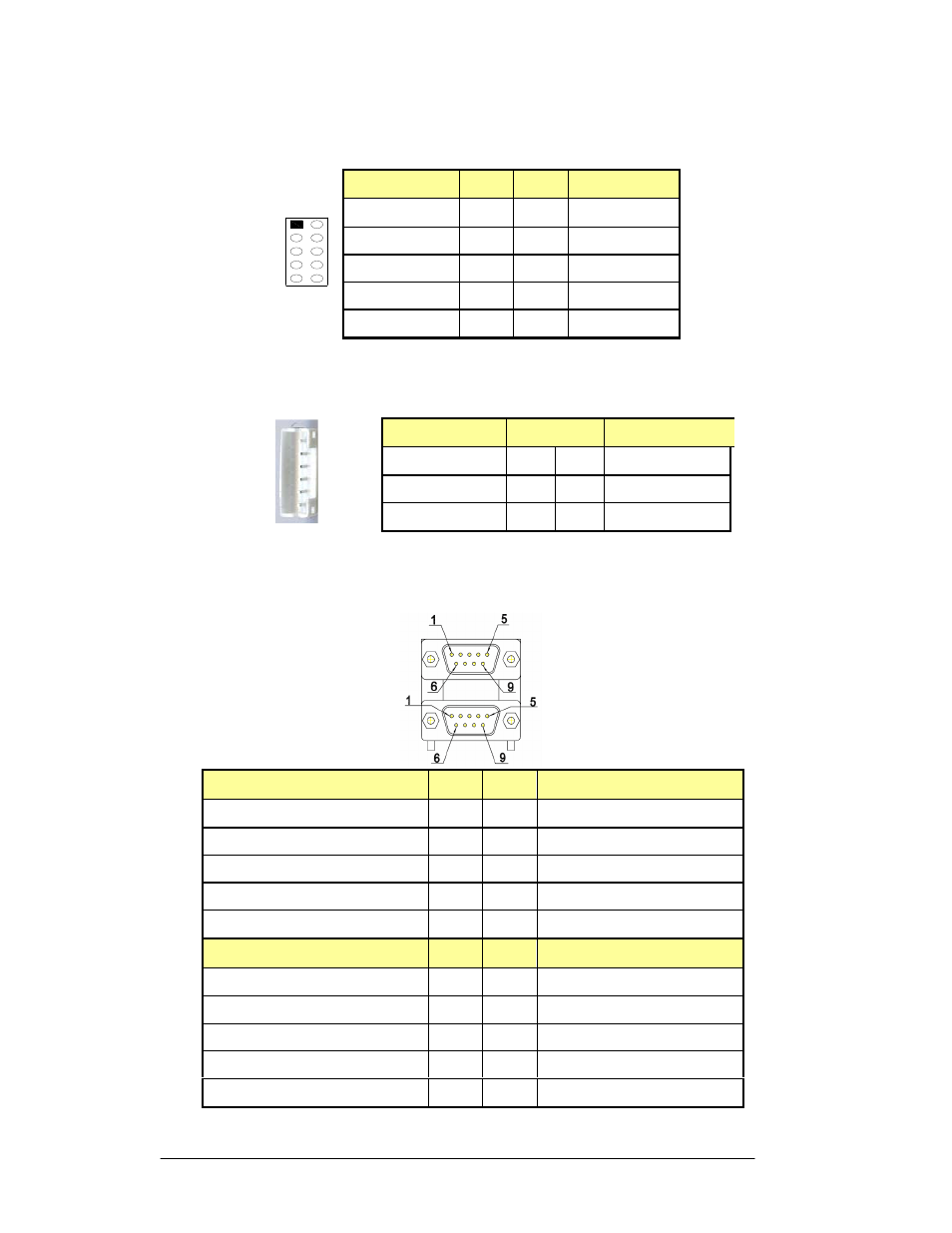

4.4.5 J1: PW/Reset Switch and Indicator Connector
Signal Name Pin Pin Signal Name
+5VSB 1 2 KBDATA-IN
KBDATA-OUT 3 4 Ground
KBCLK-IN 5 6 KBCLK-OUT
Signal Name Pin Pin Signal Name
Ground 1 2 PW-ON
Ground 3 4 Reset_SW
IDE_LED- 5 6 IDE_LED+
Power_LED+ 7 8 Power_LED-
LAN_LED- 9 10 LAN_LED+
4.4.6 J2: MSR Connector
6
1
Note: When MSR is not used, please short jump 2-3 & 5-6 pins.
4.4.7 J3: COM3/COM4 D-SUB 9 Pin Connector
COM3
COM4
Signal Name Pin Pin Signal Name
DCD, Data carrier detect 1 6 DSR, Data set ready
RXD, Receive data 2 7 RTS, Request to send
TXD, Transmit data 3 8 CTS, Clear to send
DTR, Data terminal ready 4 9 RI, Ring indicator
Ground 5
Signal Name Pin Pin Signal Name
DCD, Data carrier detect 1 6 DSR, Data set ready
RXD, Receive data 2 7 RTS, Request to send
TXD, Transmit data 3 8 CTS, Clear to send
DTR, Data terminal ready 4 9 RI, Ring indicator
Ground 5
