FPC 71X0 User Manual
3-8
2.3 Installation Memory Module
The FPC 71X0 series with BI-946ID main board provides two 240-pin DIMM slot. The
socket supports up to 2GB DDR2 533MHz. When installing the Memory device, please
follow the steps below
：

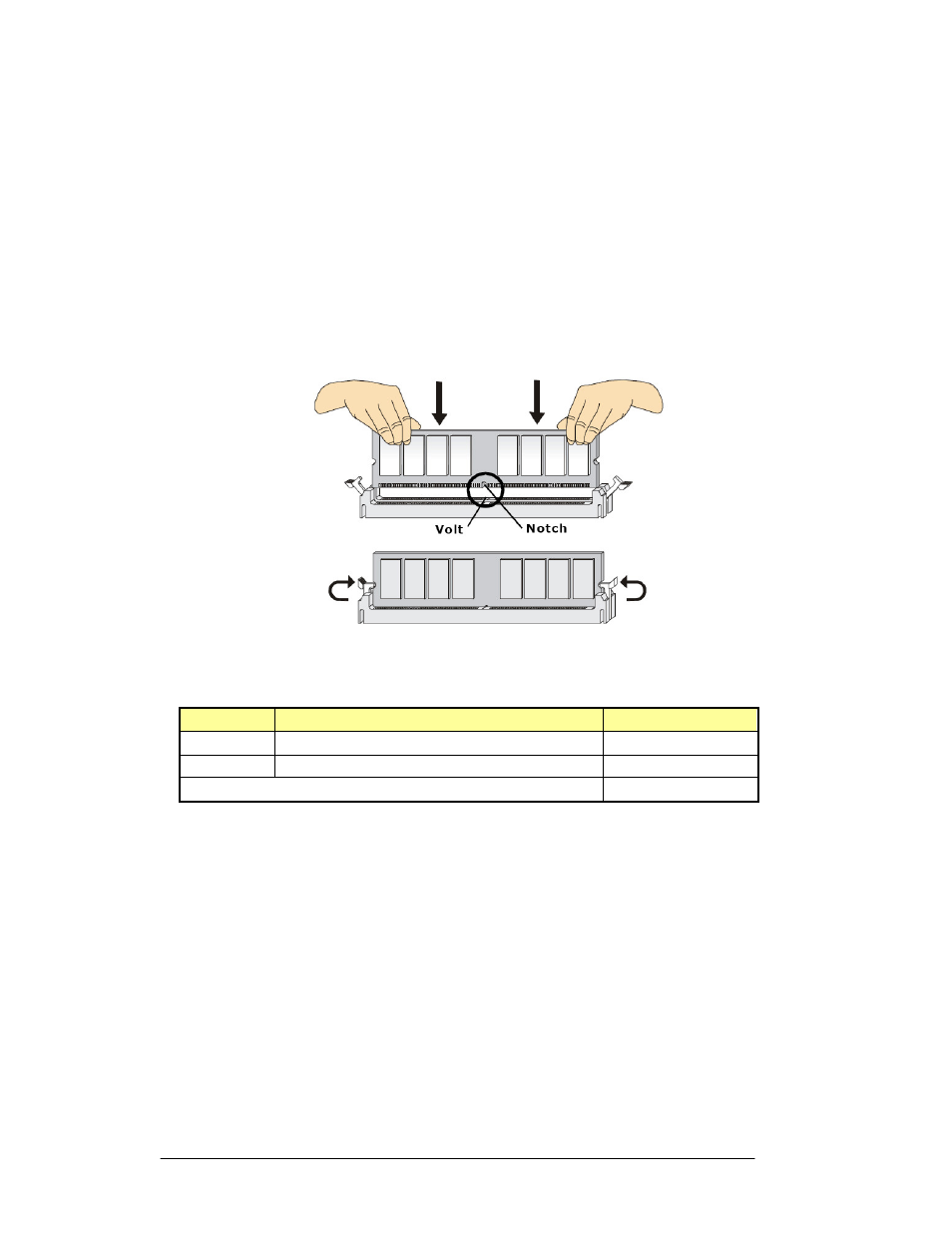

Locate the DIMM slot in the motherboard.
1. Unlock a DIMM slot by pressing the retaining clips outward.
2. Align a DIMM on the socket such that the notch on the DIMM matches the break
on the slot.
3. Firmly insert the DIMM into the slot until the retaining clips snap back in place and
the DIMM is properly seated.
Available DDR2 configurations refer to the table below for available DDR2
configurations on the main board.
Slot Module Size Total
DIMM1 512MB, 1GB 512MB-1GB
DIMM2 512MB, 1GB 512MB-1GB
Maximum supported system memory 512MB-2GB
