FPC 71X0 User Manual 4-17

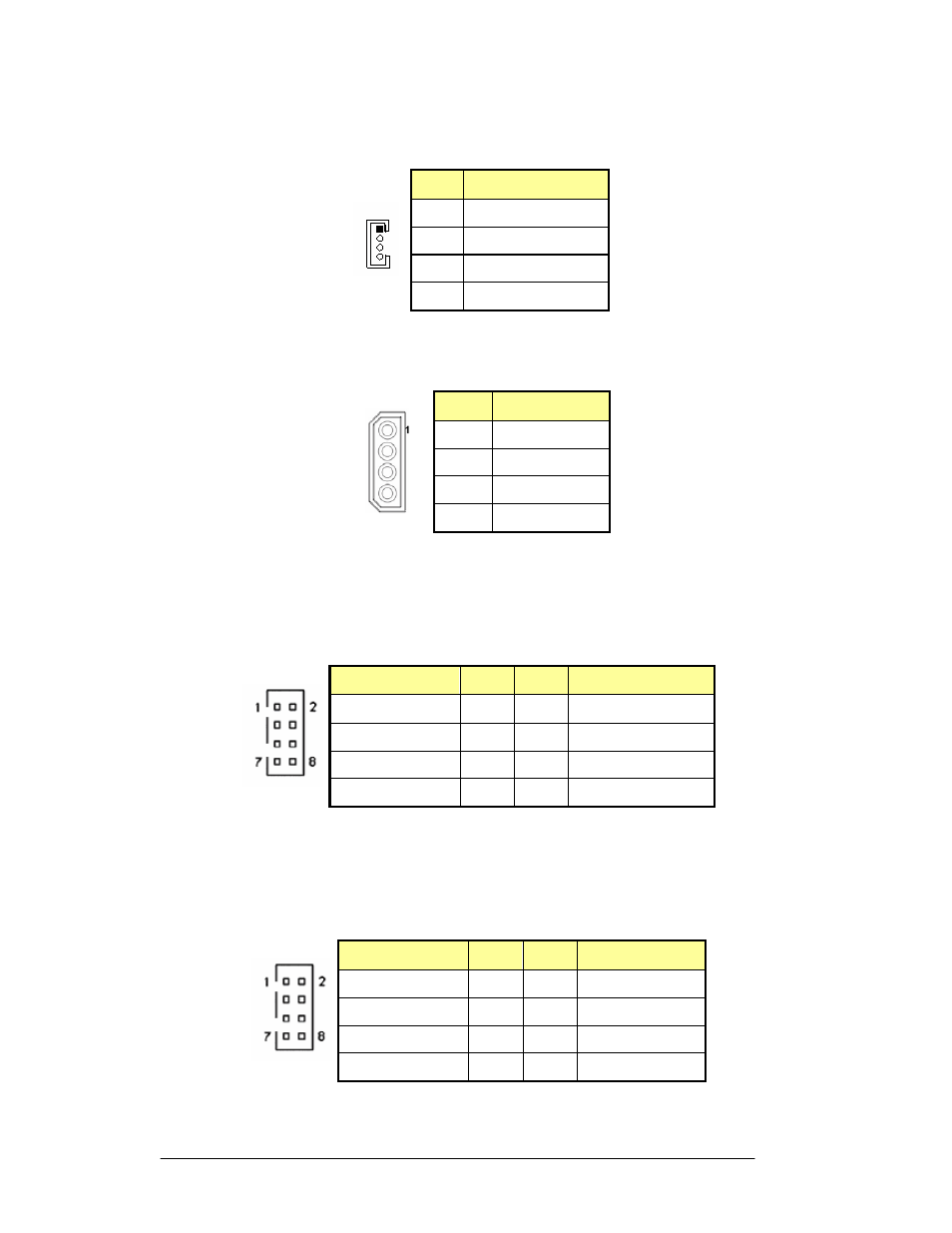

4.4.1 CN1: Inverter BKL Connector
Pin Signal Name
1 Ground
2 Ground
3 ENABKL
4 12V
Pin Signal Name
1 +12V
2 GND
3 GND
4 +5V
Signal Name Pin Pin Signal Name
Vcc 1 2 Vcc
USB7- 3 4 USB6-
USB7+ 5 6 USB6+
Ground 7 8 Ground
Signal Name Pin Pin Signal Name
Vcc 1 2 Vcc
USB5- 3 4 USB4-
USB5+ 5 6 USB4+
Ground 7 8 Ground
4.4.2 CN2: 4 Pin Power Output Connector
4.4.3 CN3: USB Connectors
The following table shows the pin outs of the USB pin headers connectors. Overall,
the one pin header support four USB ports (USB 2.0 compliant).
4.4.4 CN4: USB Connectors
The following table shows the pin outs of the USB pin headers connectors. Overall,
one pin header supports four USB ports (USB 2.0 compliant).
