FPC 71X0 User Manual 4-24

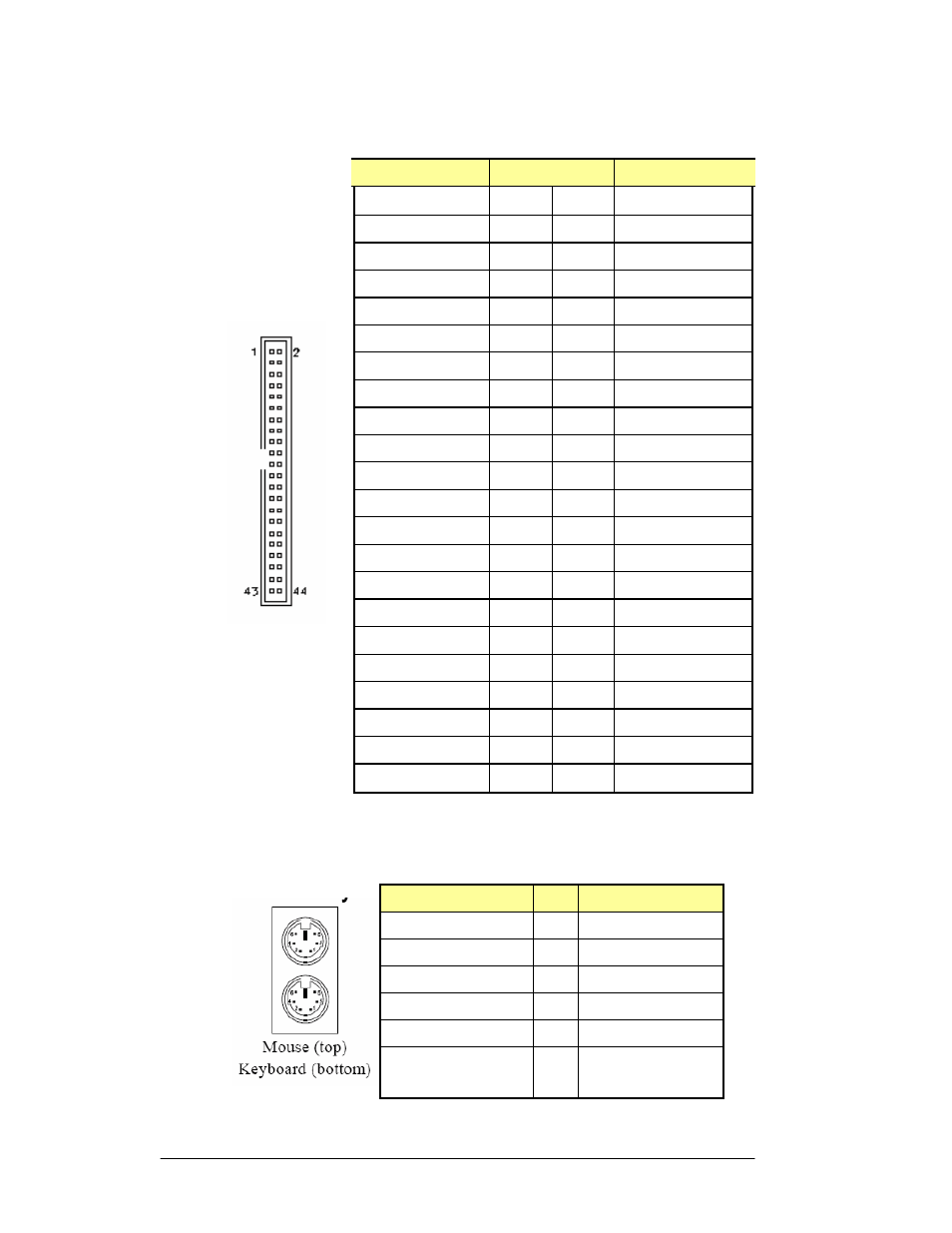

4.4.23 IDE1: IDE Connector
Signal Name Pin Pin Signal Name
Reset IDE 1 2 Ground
Host data 7 3 4 Host data 8
Host data 6 5 6 Host data 9
Host data 5 7 8 Host data 10
Host data 4 9 10 Host data 11
Host data 3 11 12 Host data 12
Host data 2 13 14 Host data 13
Host data 1 15 16 Host data 14
Host data 0 17 18 Host data 15
Ground 19 20 Key
DRQ0 21 22 Ground
Host IOW 23 24 Ground
Host IOR 25 26 Ground
IOCHRDY 27 28 Host ALE
DACK0 29 30 Ground
IRQ14 31 32 No connect
Address 1 33 34 No connect
Address 0 35 36 Address 2
Chip select 0 37 38 Chip select 1
Activity 39 40 Ground
Vcc 41 42 Vcc
Ground 43 44 N.C.
Keyboard Signal Pin Mouse Signal
Keyboard data 1 Mouse data
N.C. 2 N.C.
GND 3 GND
5V 4 5V
Keyboard clock 5 Mouse clock
N.C 6 N.C
4.4.24 PS1: PS2 Keyboard &Mouse connector
