System Connections

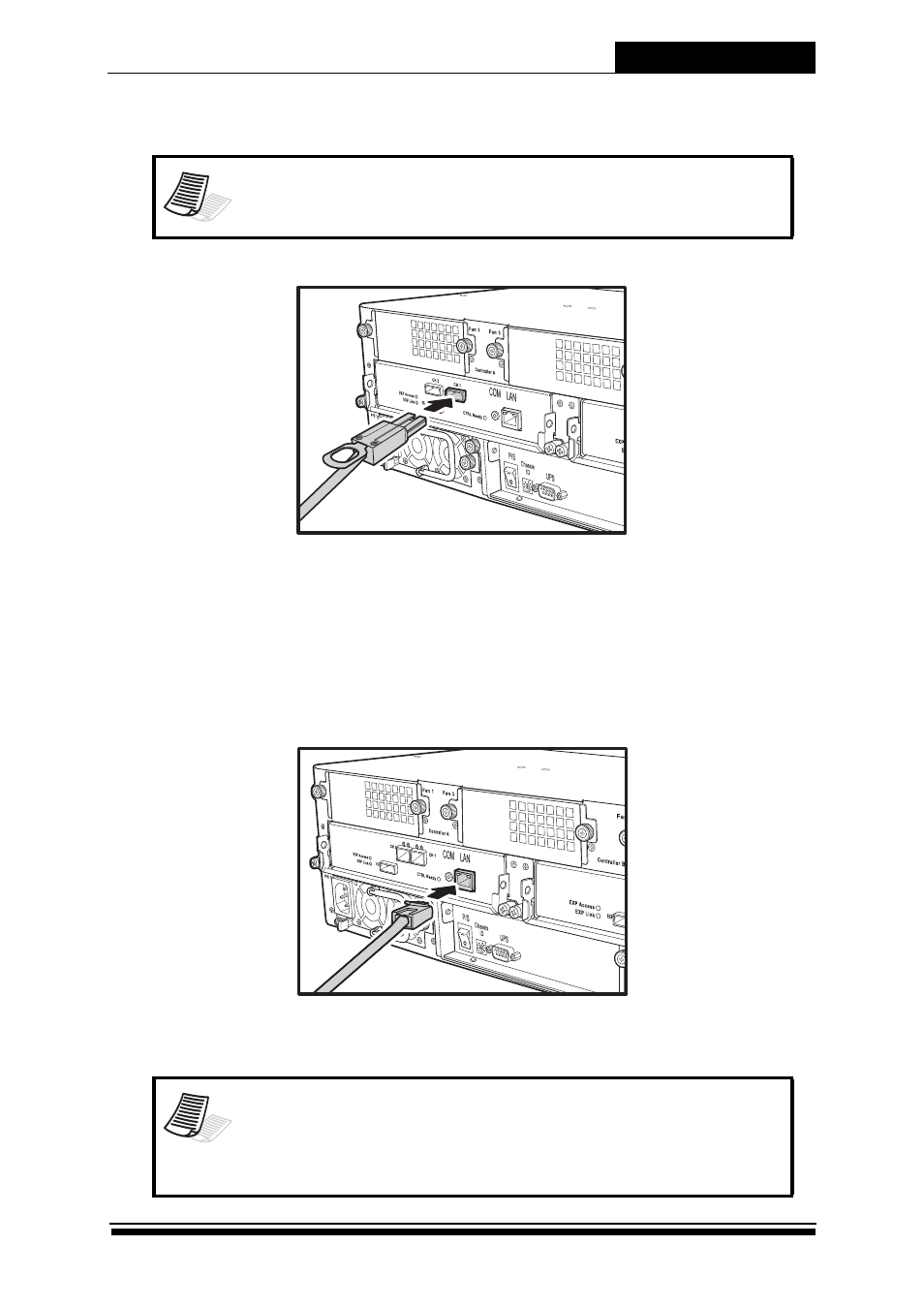

3.1.2 Connecting SAS RAID System Controller to the Host

1. Insert the SAS cable into the CH1 port.

2. Insert the other end to the HBA connector of the host server.

3.2 Connecting the GUI Management Port

To easily monitor and configure the RAID system, use the Graphical User

Interface (GUI). To manage the GUI, a LAN/WAN connection is required.

Follow the procedures below:
1. Insert the ethernet cable to the LAN port of the controller.

2. Connect the other end to the LAN switch.

Note

The illustration below shows A16R-SS RAID system. The same

procudures apply for A12R-SS and A24R-SS.

Note

• The illustration above shows A16R-SS. The same procedures apply

to A12R-FS&SS, A16R-FS, and A24R-FS&SS.

• Please refer to the software user manual to configure IP address to

access the GUI.

Figure 3-1 Connecting A16R-FS to LAN
