Product Overview
9

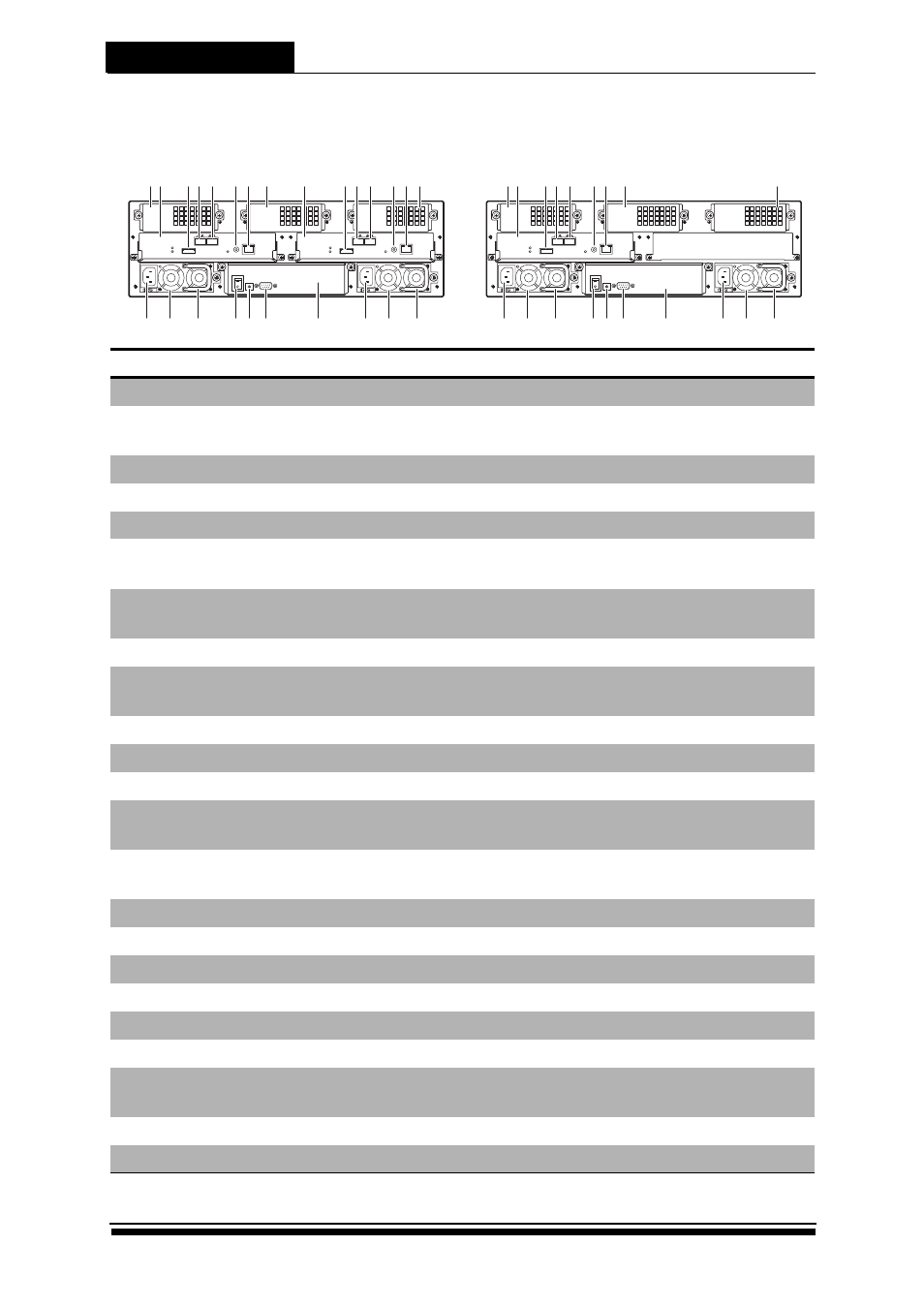

A16-FS
No. Item Description
1 Cooling fan 1 System cooling fan.
2 Controller A RAID system controller A (Primary
controller)
3 Expansion port (Controller A) Use for JBOD expansion. (A16R-SJ)
4 Host channel 2 (Controller A) Connects to the host server.
5 Host channel 1 (Controller A) Connects to the host server.
6 RS-232 port Connects to external terminal for CLI
management.
7 Ethernet port Connects to LAN for GUI
management.
8 Cooling fan 3 System cooling fan.
Controller B RAID system controller B (Secondary
controller)
10 Expansion port (Controller B) Use for JBOD expansion. (A16R-SJ)
11 Host channel 2 (Controller B) Connects to the host server.
12 Host channel 1 (Controller B) Connects to the host server.
13 RS-232 port Connects to external terminal for CLI
management.
14 Ethernet port Connects to LAN for GUI
management.
15 Cooling fan 2 System cooling fan.
16 AC power port Connects to the power source.
17 Power supply 1 Removable power supply.
18 Power supply handle Use to pull out the power supply.
19 Power supply switch Use to switch the power on or off.
20 Chasis ID Use for JBOD enclosure only.
21 UPS port Provides UPS powered data
connection.
22 IO tray Holds the IO board and BBMs.
23 AC power port Connects to the power source.
Fan 1 Fan 3
Contraller A
Fan 2
Contraller B
P/S 1 P/S 2
VER 1.0
P/S
UPS
Chassis
ID
567 8 90 12 3 4
COM LAN
CH 2
EXP EXP Access
EXP Link CTRL Ready
CH 1
COM LAN
CH 2
EXP EXP Access
EXP Link CTRL Ready
CH 1
1 8
17 18 19 20 21 16 24 25 23
2 4 5 6 7 3 15 9 11 12 13 14 10
22
Fan 1 Fan 3
Contraller A
Fan 2
Contraller B
P/S 1 P/S 2
VER 1.0
P/S
UPS
Chassis
ID
567 8 90 12 3 4
COM LAN
CH 2
EXP EXP Access
EXP Link CTRL Ready
CH 1
1 8
17 18 19 20 21 16 24 25 23
2 4 5 6 7 3 15
22
A16R-FS A16U-FS
