Product Overview
7
1.4 Disk Tray
No.
Item
Description
1
Disk LED indicator
Indicates the disk status:
• Green - Disk is online
• Red - No disk or disk fail
2
Tray button
Press to release the tray handle.
3
Access LED indicator
Lights blue when the disk is being
accessed.
4
Tray handle
Use to pull out or lock the disk tray into
place.

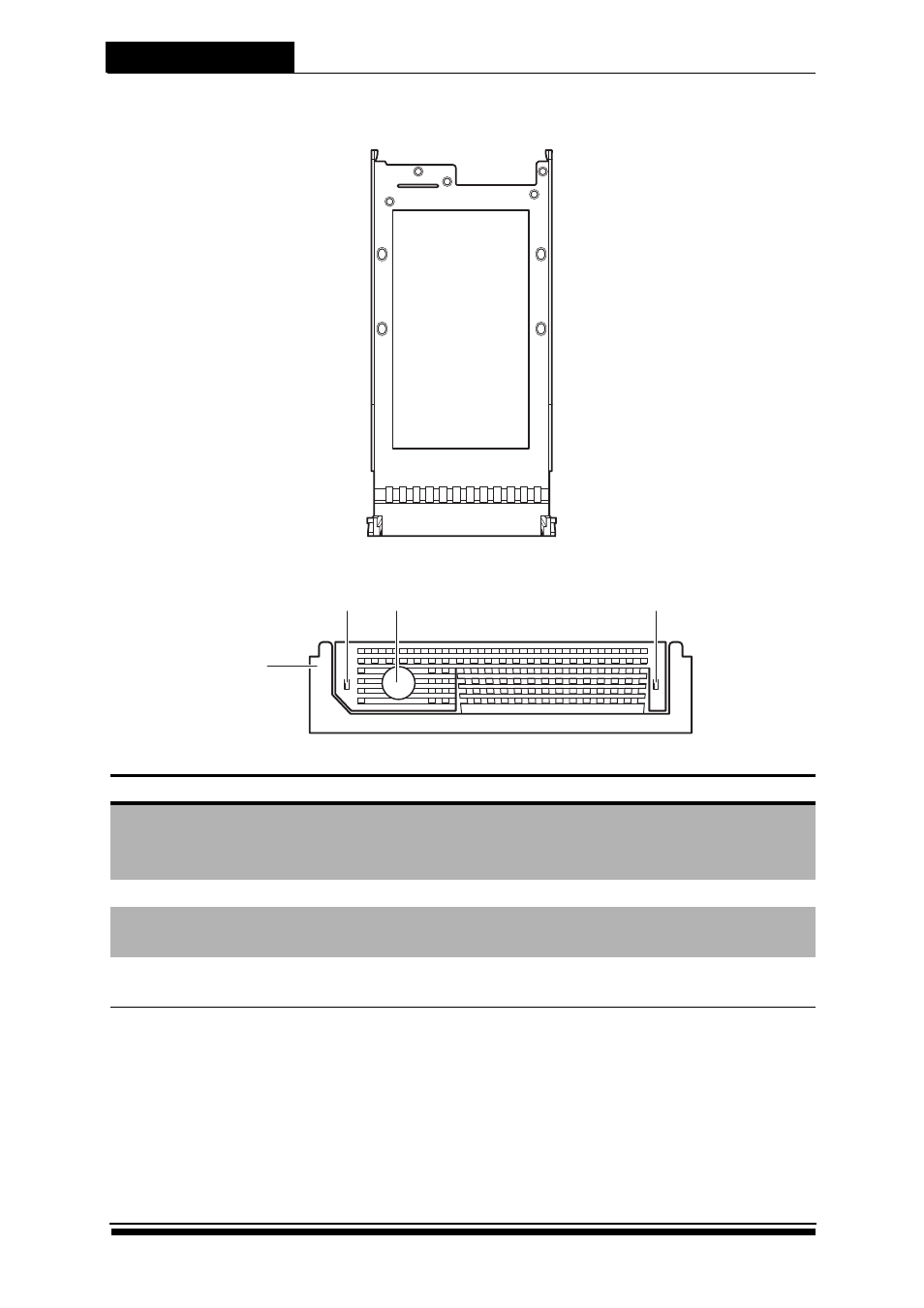

1
3
2
4
Front View
