Back – Edimax Technology WP-S1300 User Manual
Page 10
Back

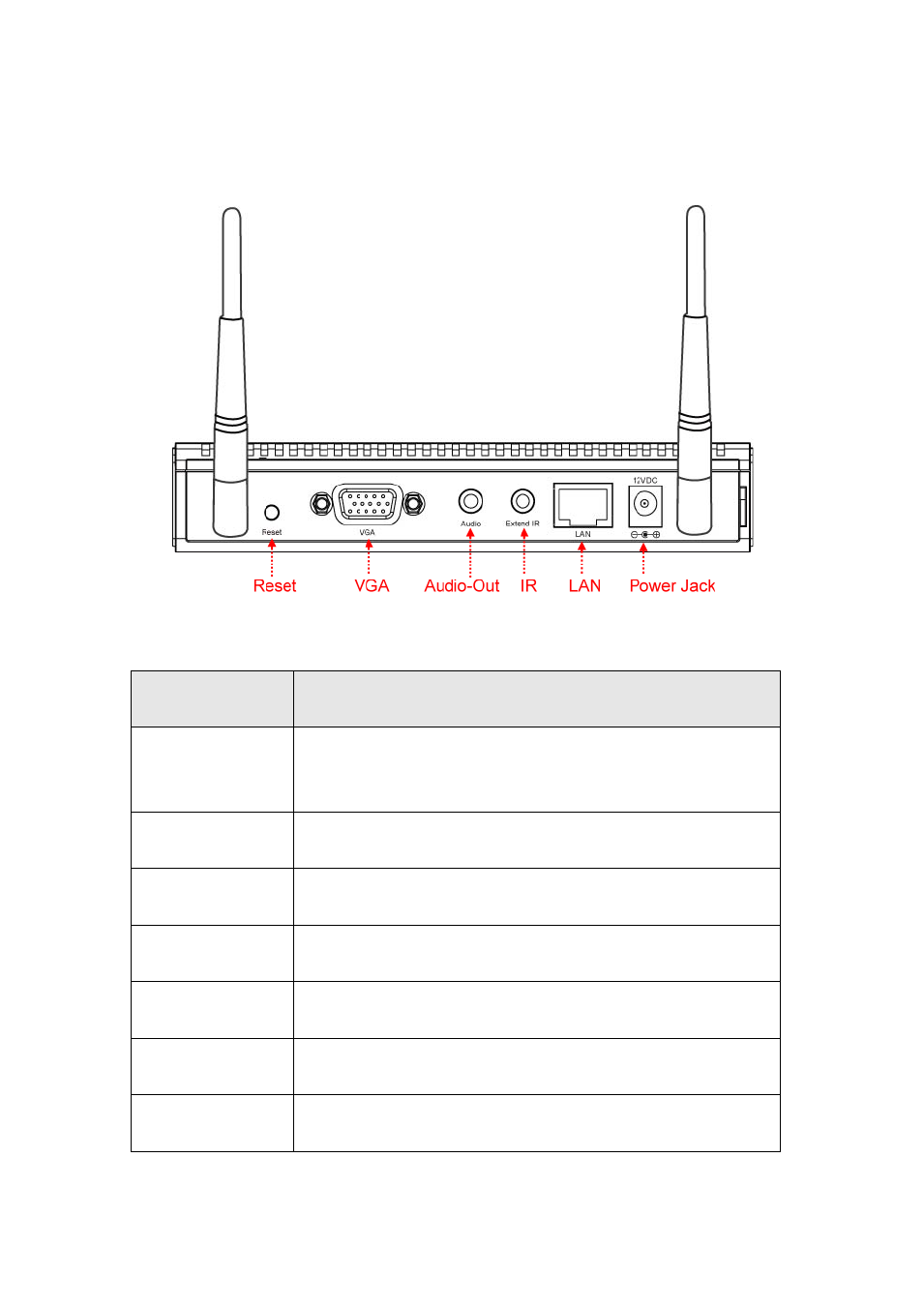

Name
Description
Reset
When this projector server is not working properly, you
can use a pen or pin to press and hold this button for 5
seconds to reset the projector server.
VGA
VGA D-sub 15 pin video output (Connects to any
VGA-compatible display).
Audio
Stereo audio output (Connects to external speaker or
audio amplifier).
External IR
Connects to supplied IR extender cable to receive IR
signals
LAN
10/100/1000Mbps fast Ethernet port (Connects to your
local area network)
12VDC
Connect to DC 12V power adapter (Use supplied power
adapter only!).
Antenna
(Left and Right)
Transmits wireless signal. Please keep both antennas
perpendicular to the ground for best signal reception.
