Edimax Technology WP-S1100 - Manual (Page 26)

26

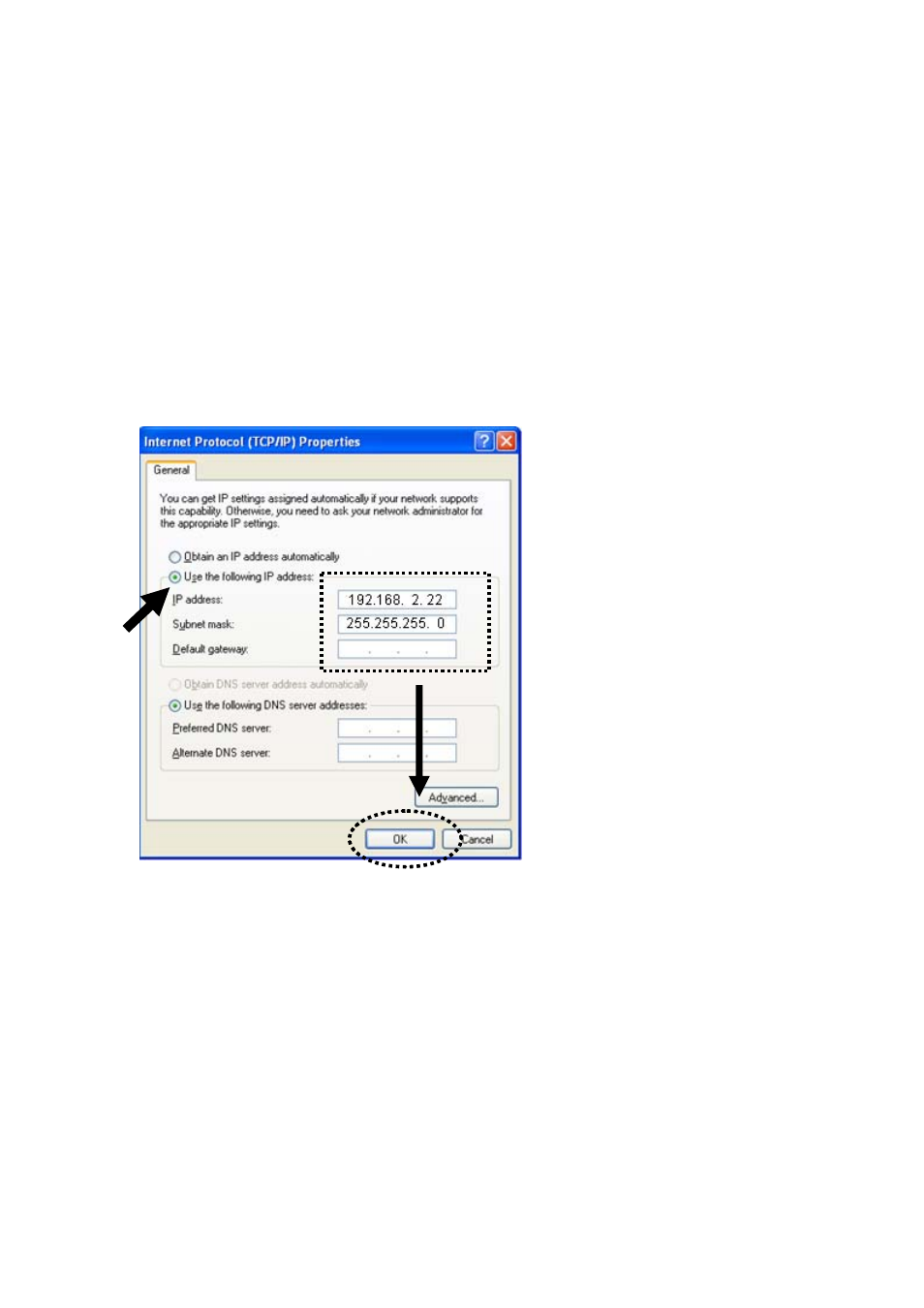

2. Select ‘Use the following IP address’, then input the following settings in
respective field:
IP address: 192.168.2.x (where x is an integer greater or less than 200, if
there’s more than one computer need to use this projector server on the same
network, every computer should use an unique number)
Subnet Mask: 255.255.255.0
click ‘OK’ when finish.
2-3-2 Windows Vista IP address setup:
1. Click ‘Start’ button (it should be located at lower-left corner of your computer),
then click control panel. Click View Network Status and Tasks, then click
Manage Network Connections..Right-click Local Area Netwrok, then
select ‘Properties’. Local Area Connection Properties window will appear,
select ‘Internet Protocol Version 4 (TCP / IPv4), and then click ‘Properties’
