Edimax Technology WP-S1100 - Manual (Page 25)

25
2-2 Connect to Projector Server by Wireless Ethernet
2-3 Set the IP address of the Computer
If there’s no DHCP server available on your LAN, please follow the following
instructions to set the IP address of the computer, so the computers wish to
use the projector server can connect to project server.
If the operating system of your computer is….
Windows XP
- please go to section 2-3-1
Windows Vista - please go to section 2-3-2
2-3-1 Windows XP IP address setup:

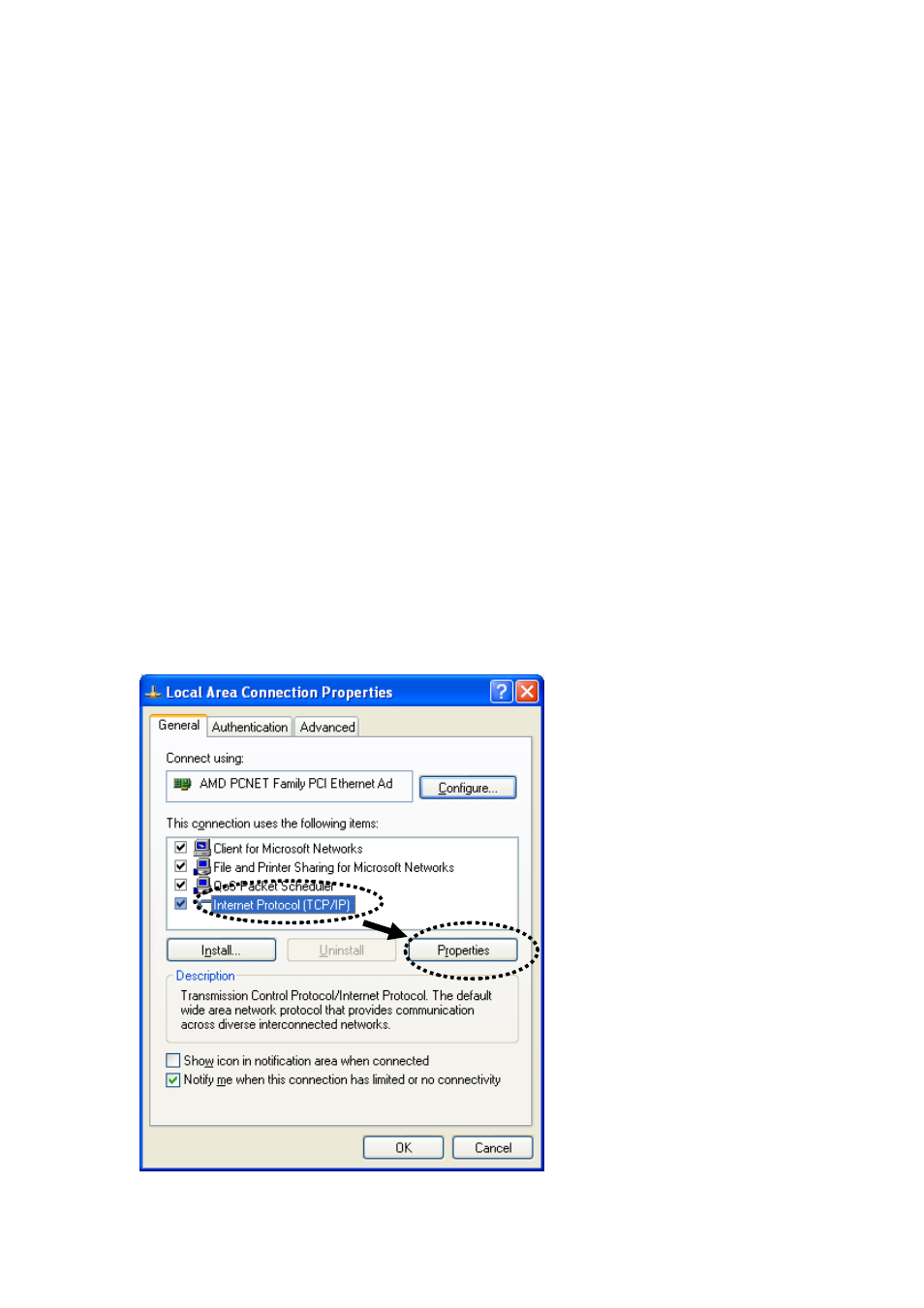

1. Click ‘Start’ button (it should be located at lower-left corner of your computer),
then click control panel. Double-click Network and Internet Connections icon,
click Network Connections, and then double-click Local Area Connection,
Local Area Connection Status window will appear, and then click ‘Properties’
