66

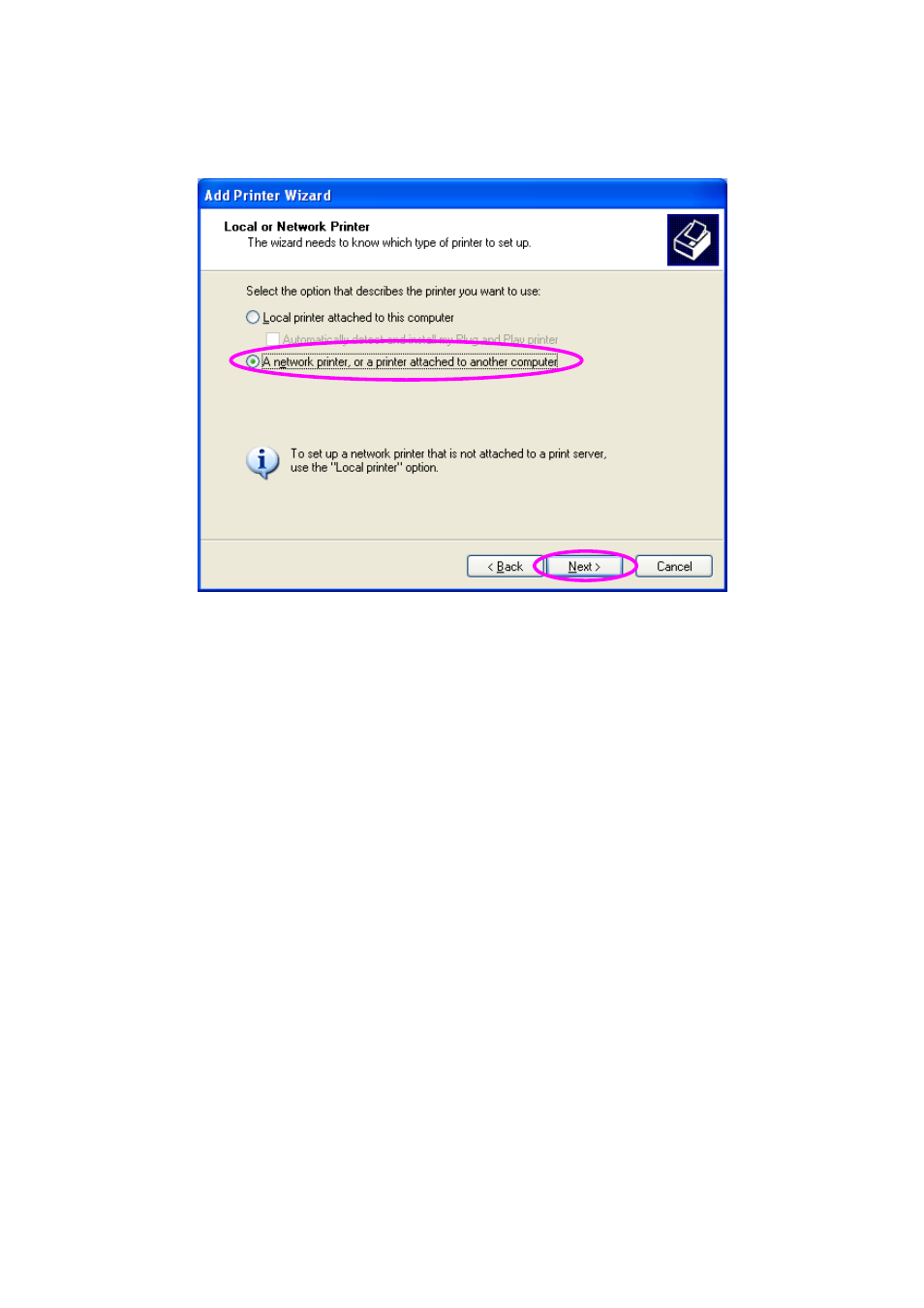

4. Select “A network printer, or a printer attached to another computer”. Click

“Next”.

5. Select “Connect to a printer on the Internet or on a home or office network”

and enter the URL of server. The URL format is “http://IP Address of the

Server:631/Queue Name”. The IP Address should be the server’s IP

Address. The number 631 is IPP standard port number. Queue Name is

the queue name of the USB port that your printer is connected to. The

default queue name is “lpt1” for printer attached to USB Port 1 and “lpt2”

for printer attached to USB Port 2. One example of the URL is

http://192.168.2.2:631/lpt1. After entering the URL of the server, click

“Next”.
