4. Hardware Placement

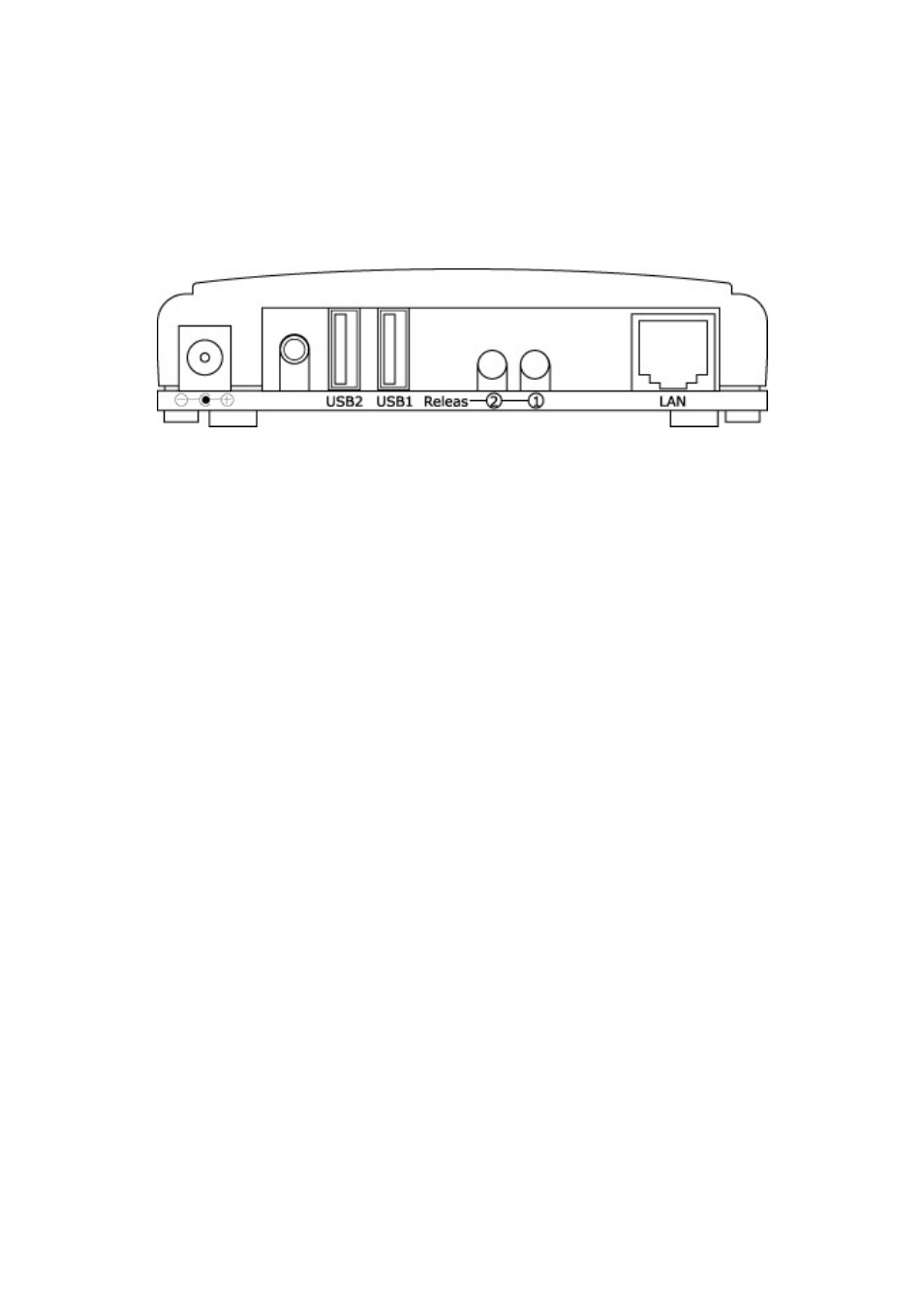

4.1 Rear Panel
1) Power Jack
Please plug the power adapter attached with the server to the power jack.
2) Antenna Connector (PS-2207SUg only)
The antenna connector of the server is reverse SMA connector. It allows
you to connecting an external antenna with reverse SMA connector to the
server easily.
3) USB 1 and USB 2
The USB ports allow you to connect to printer or USB mass storage for
network sharing.
4) Release 2 and Release 1
The Release button is used to safely remove USB mass storage from your
server. Click the Release 1 and 2 buttons for over 5 seconds to remove
device connected in the USB port 1 and port 2 individually. The USB LED
of the USB port will be blinking after you have clicked Release button for
over 5 seconds. Please unplug the USB mass storage while the USB LED
is blinking. When the USB LED is turning unlighted, the release function is
cancelled.
Note1: If the release function is cancelled, the USB mass storage will be
reconnected by the server. Please wait a moment till the USB LED for the
USB port is turn on again.
