UNDERSTANDING THE PAPER PATH
XEROX DOCUPRINT 92C NPS SYSTEM OVERVIEW GUIDE 5-3
When you add a high-capacity feeder to your system, only the
beginning of the paper path changes, which is the source of paper
supply.

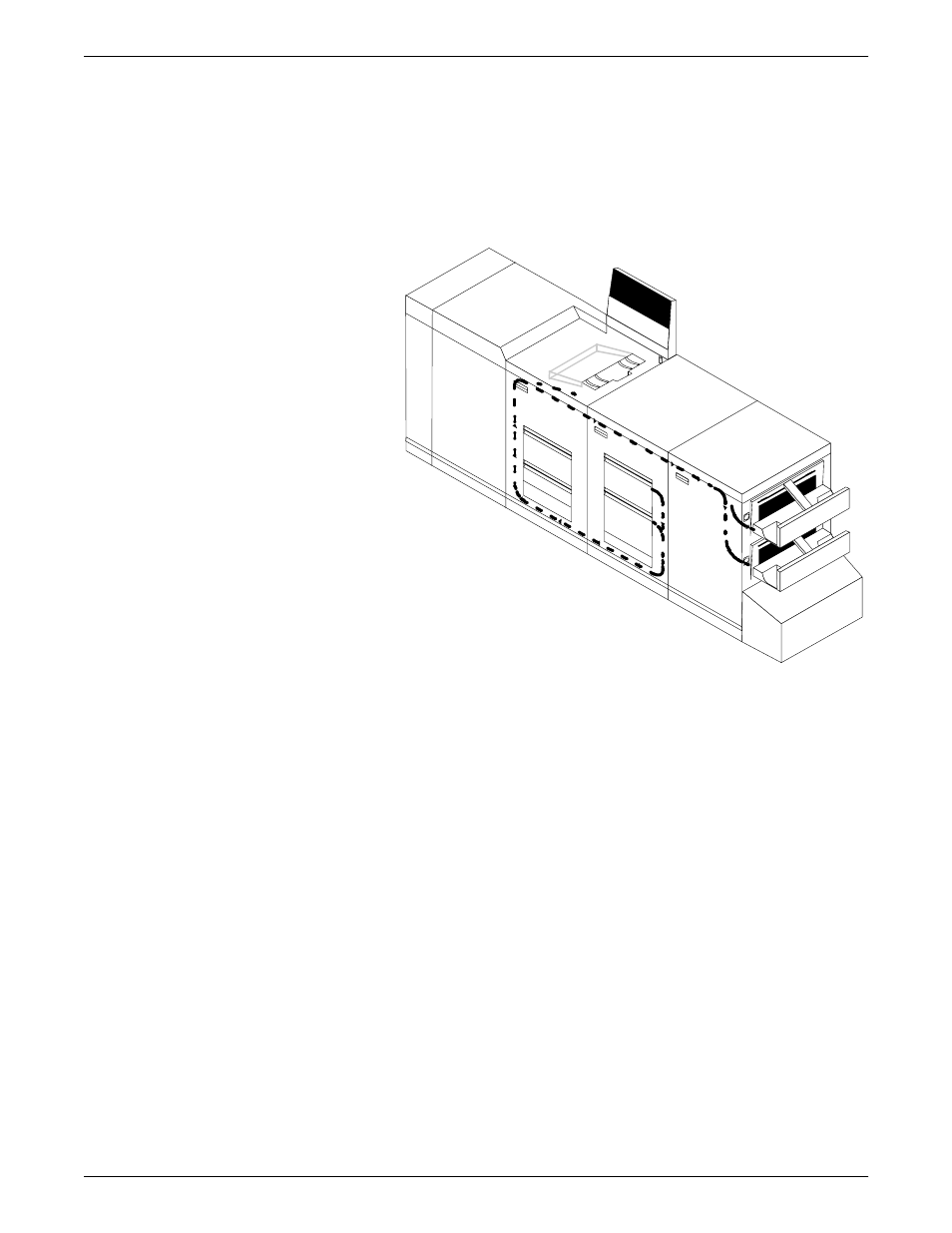

The following figure illustrates the simplex paper path of a printer with
the high-capacity feeder.
Figure 5-3. Simplex paper path (printer with high-capacity
feeder)
If you have the stitcher/stacker option, the paper path is the same,
except there is only one tray for the output (other than the sample
tray).
