3-2 XEROX DOCUPRINT 92C NPS SYSTEM OVERVIEW GUIDE
Printer control console The printer control console contains message and graphic displays,
an attention light, and Information, Stop, and Continue buttons.
Indicator lights show which feeder tray is active and the paper size in
use.
Sample tray This output tray is used for sample prints, rejected prints, and
transparencies. The capacity of the sample tray is 100 sheets of 20-
pound or 80-grams per square meter (gsm) paper.
Dual stacker trays 1 and 2 Each output stacker tray has a capacity of 750 sheets of 20-pound or
80-gsm paper (1,500 sheets total capacity). The alternatives to the
dual stacker configuration are the stitcher/stacker or bypass
transport option.
Feeder tray 1 The capacity of tray 1 is 1,000 sheets of 20-pound or 80-gsm paper.
Feeder tray 2 The capacity of tray 2 is 500 sheets of 20-pound or 80-gsm paper.
Except for capacity, this tray is identical to tray 1.

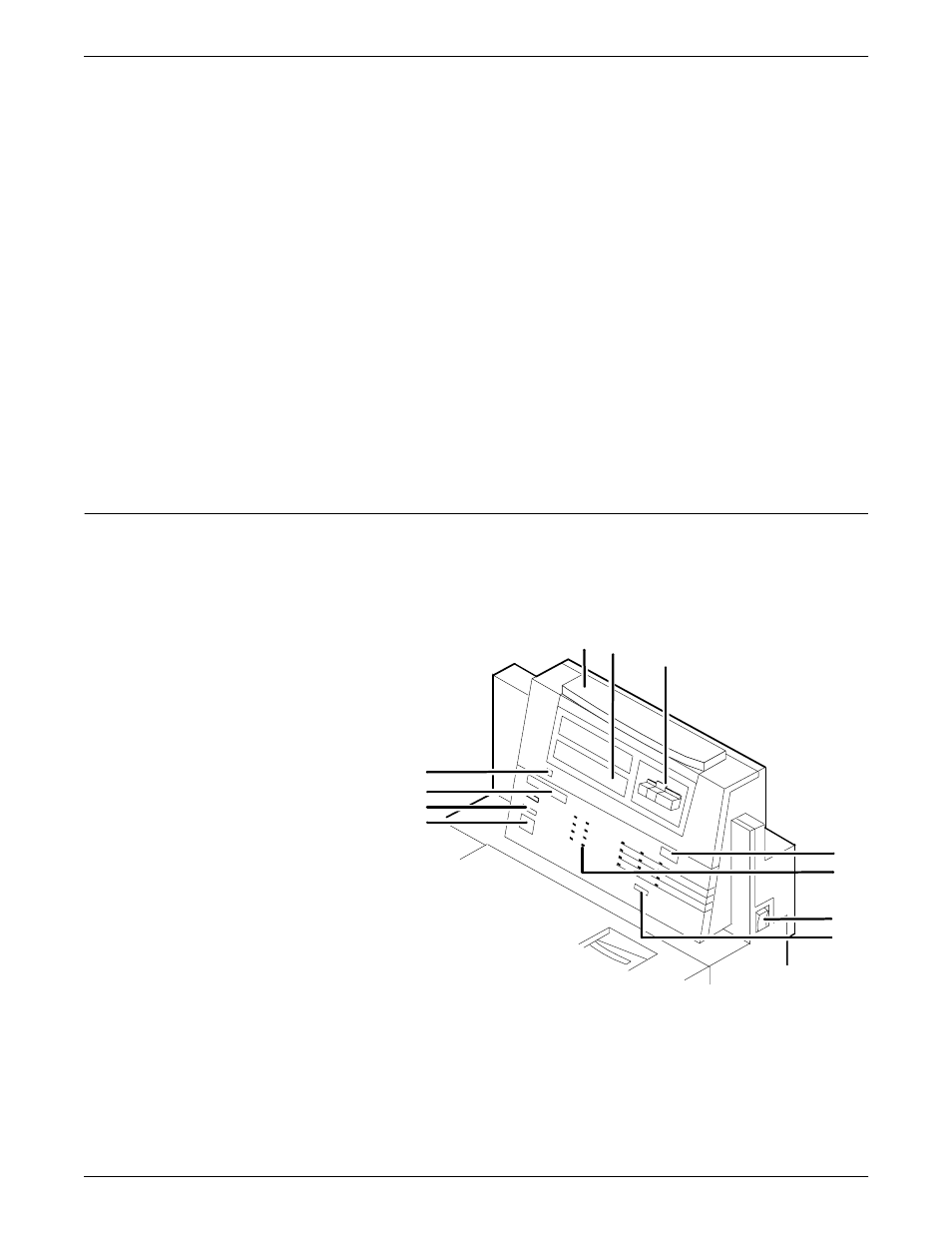

Printer control console
The control console contains message and graphic displays, as well
as attention and status indicator lights that alert you to printer
conditions. There indicators and the Information button help you to
solve printer problems. The Stop and Continue buttons give you
temporary control of the printer, without interrupting input processing.
1 Attention light
2 Message display
3 Graphic display
4 Wire percentage indicator
5 Feeder tray indicators
6 Power on/off switch
7 Sample button
8 Continue button
1
4
7
6
8
9
10
11
3
2
5
