UNDERSTANDING THE PAPER PATH
5-2 XEROX DOCUPRINT 92C NPS SYSTEM OVERVIEW GUIDE
The following figure illustrates the duplex (two-sided output) paper
path of a printer with a dual stacker and a standard feeder. Materials
may originate in either feeder tray 1 or feeder tray 2. The duplex
paper tray receives the materials before they go through a second
time to receive the second image. As the pages move through for the
second image, they follow the simplex path. The pages are then
stacked in either stacker tray 1 or stacker tray 2, depending on your
selection at the beginning of the job.

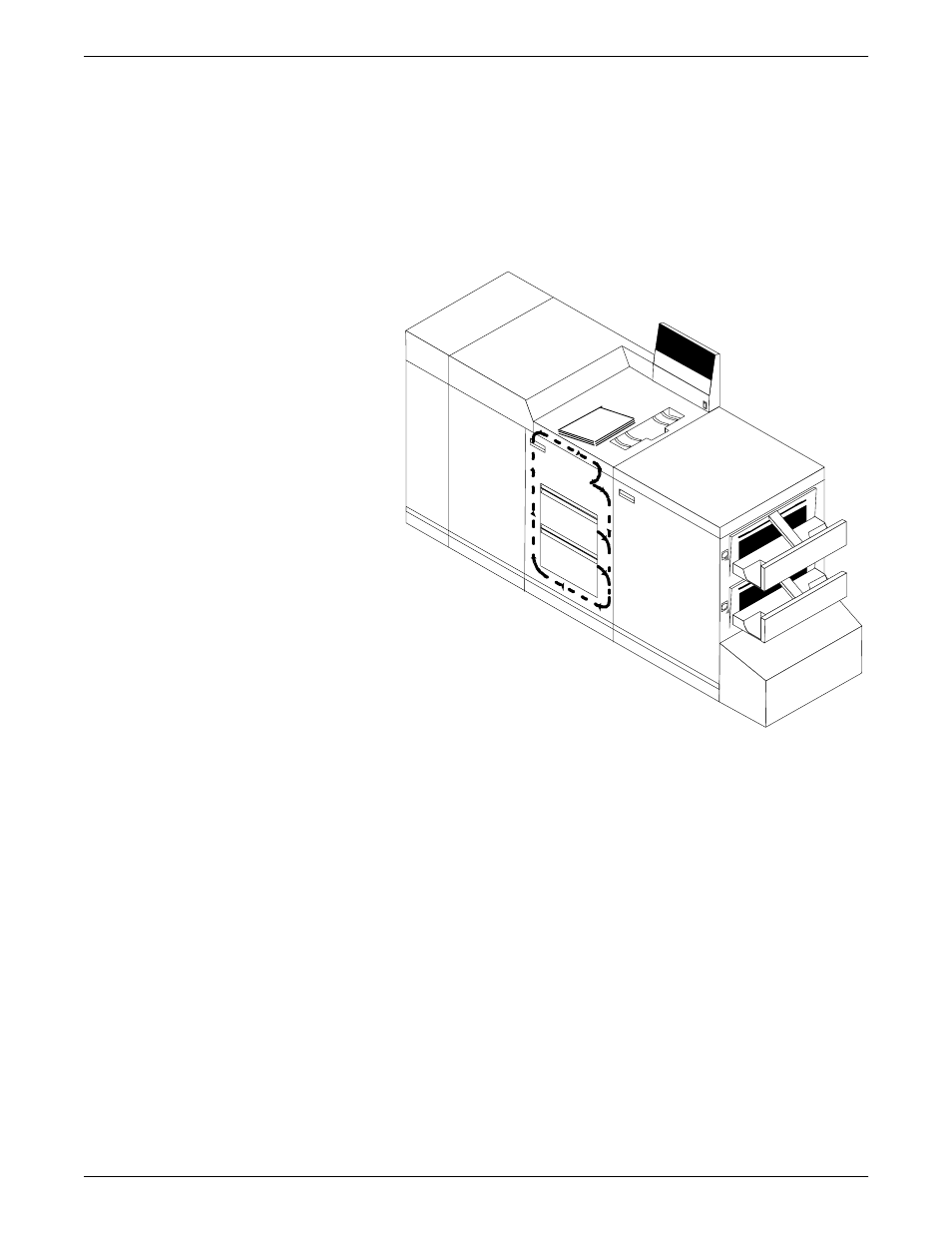

Figure 5-2. Duplex paper path (dual stacker configuration)
