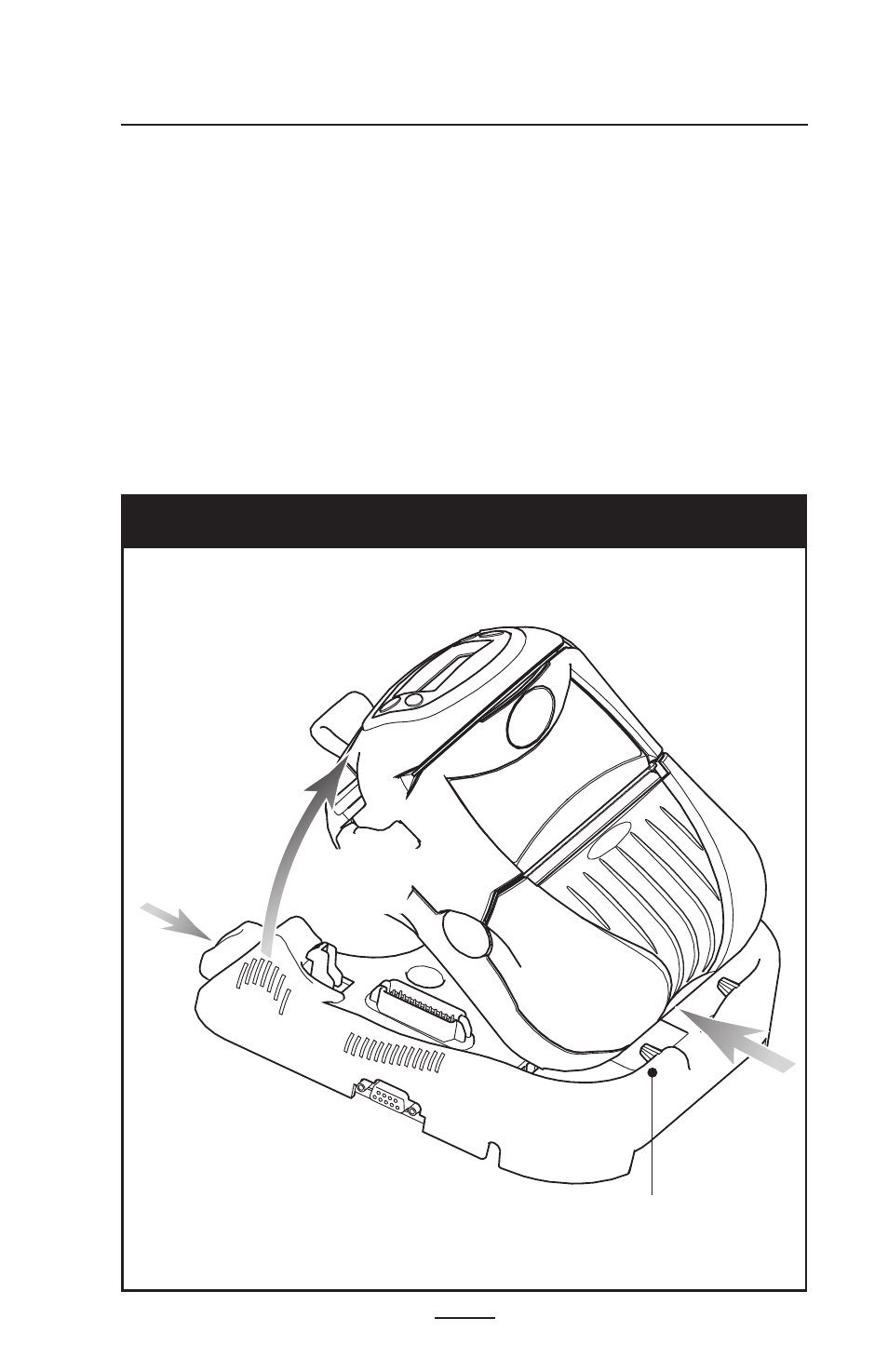

Figure 23: Removing the RW 420 from the Cradle
Removing the Printer from the Cradle
Refer to Figure 23.
• Turn the Printer off.
• Push on the latch on the Cradle and rock the top of the
printer away from the Cradle.
• Lift the Printer out from the Cradle.
Replace the Docking Connector Cover if you will be us-
ing the Printer for an extended period of time away from the
Cradle.
Lift the printer free of
the retaining pins.
Press the
Latch button
to release the
Printer.
Rotate the
Printer out of
the Cradle.
