6238-A2-ZB20-10 6238 Wi-Fi Router with VOIP User’s Guide 59

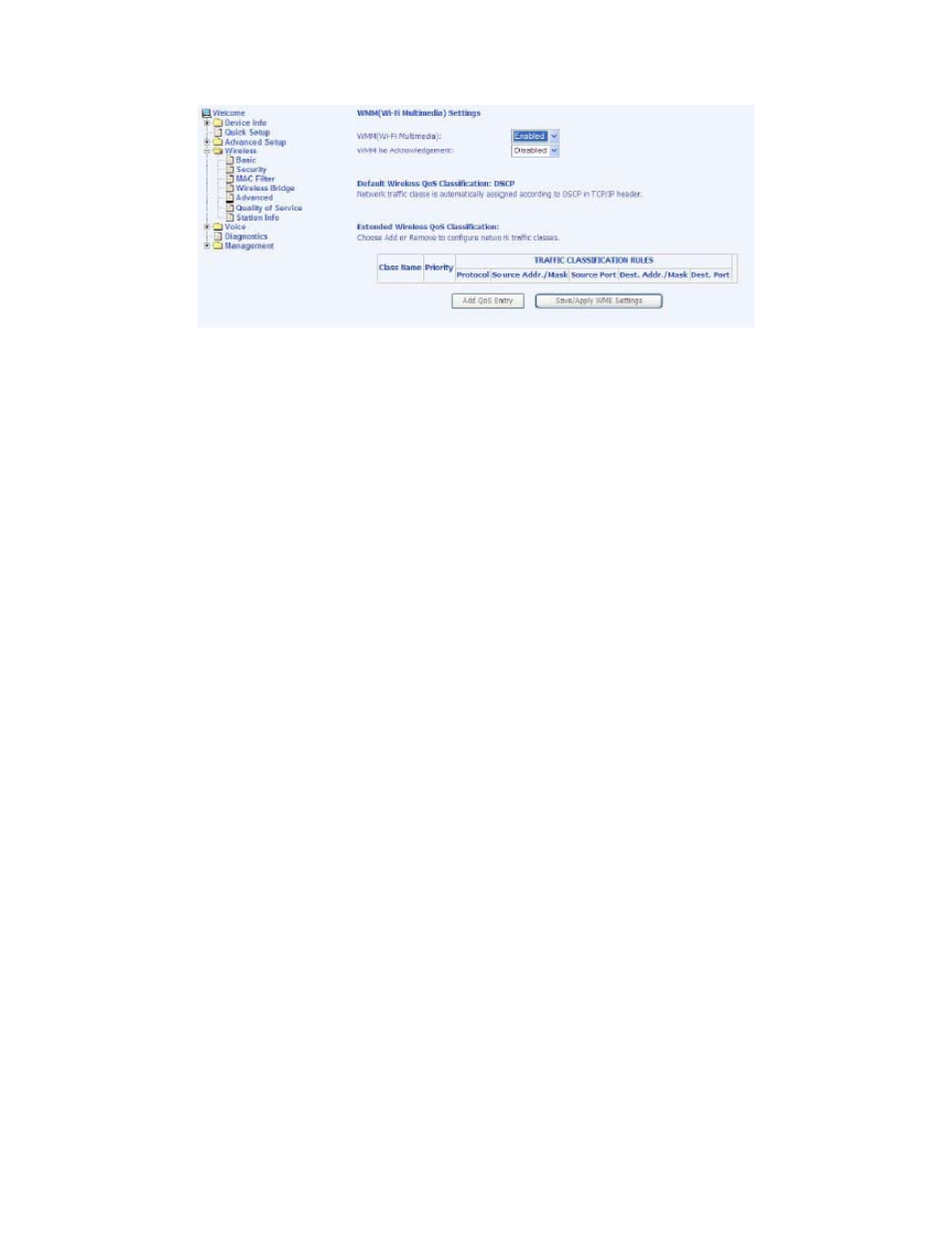

The following screen allows you to set up your wireless traffic quality of service rule.
To set up your traffic rule, start by giving a name to the traffic class. Then set up the
conditions that must be satisfied for the rule to take effect.
Also, assign a wireless transmit priority from the selection of 0-7. The following are
the different priority levels to choose from.
0 – WMM Best Effort (default)
1 – WMM Background
2 – WMM Background
3 – WMM Best Effort
4 – Video Priority
5 - Video Priority
6 – Voice Priority
7 - Voice Priority
To specify the traffic class rules, enter the information for the following fields:
• Protocol—select from these protocols:
— TCP/UDP
— TCP
— UDP
— ICMP
• Source IP Address
• Source Subnet Mask
• UDP / TCP Source Port (port or port:port)
• Destination IP Address
• Destination Subnet Mask
• UDP / TCP Destination Port (port or port:port)
