46 6238 Wi-Fi Router with VOIP User’s Guide 6238-A2-ZB20-10
• UDP / TCP Source Port (port or port:port)— If TCP or UDP was
selected, then enter the port number.
• Destination IP Address— The IP address of the computer where the
packets will be sent.
• Destination Subnet Mask— The subnet mask for the destination of
the packets.
• UDP / TCP Destination Port (port or port:port)— If TCP or UDP
was selected, then enter the port number.
SET-2
• 802.1p Priority— If 802.1q was enabled on WAN, then select a
value between 0-7.

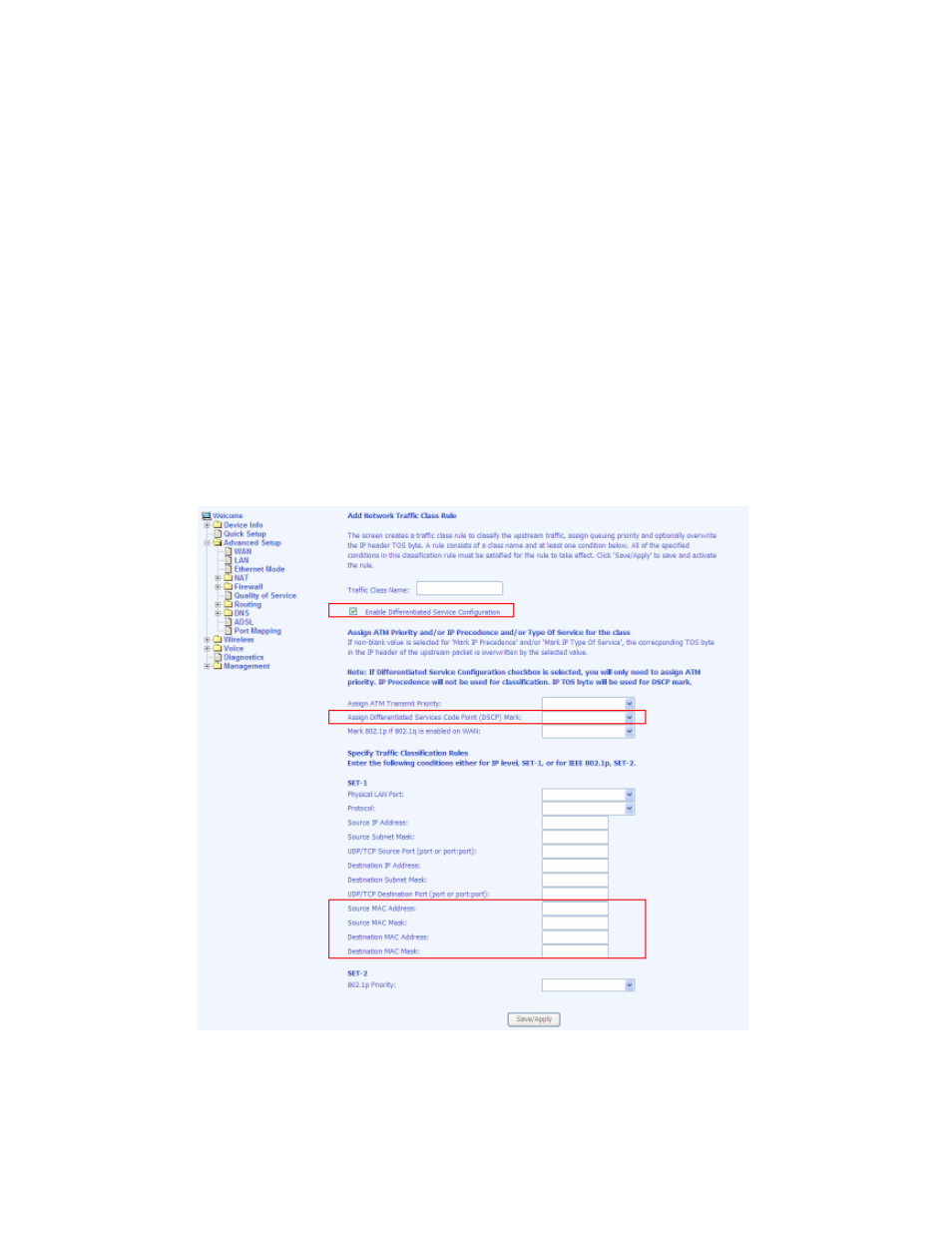

The following screen shows the configuration fields available when the
Enable Differentiated Service Configuration checkbox is checked.
