6238-A2-ZB20-10 6238 Wi-Fi Router with VOIP User’s Guide 45
• Mark IP Type of Service— Select from the following choices:
o
Normal Service
o
Minimize Cost
o
Maximize Reliability
o
Maximize Throughput
o
Minimize Delay

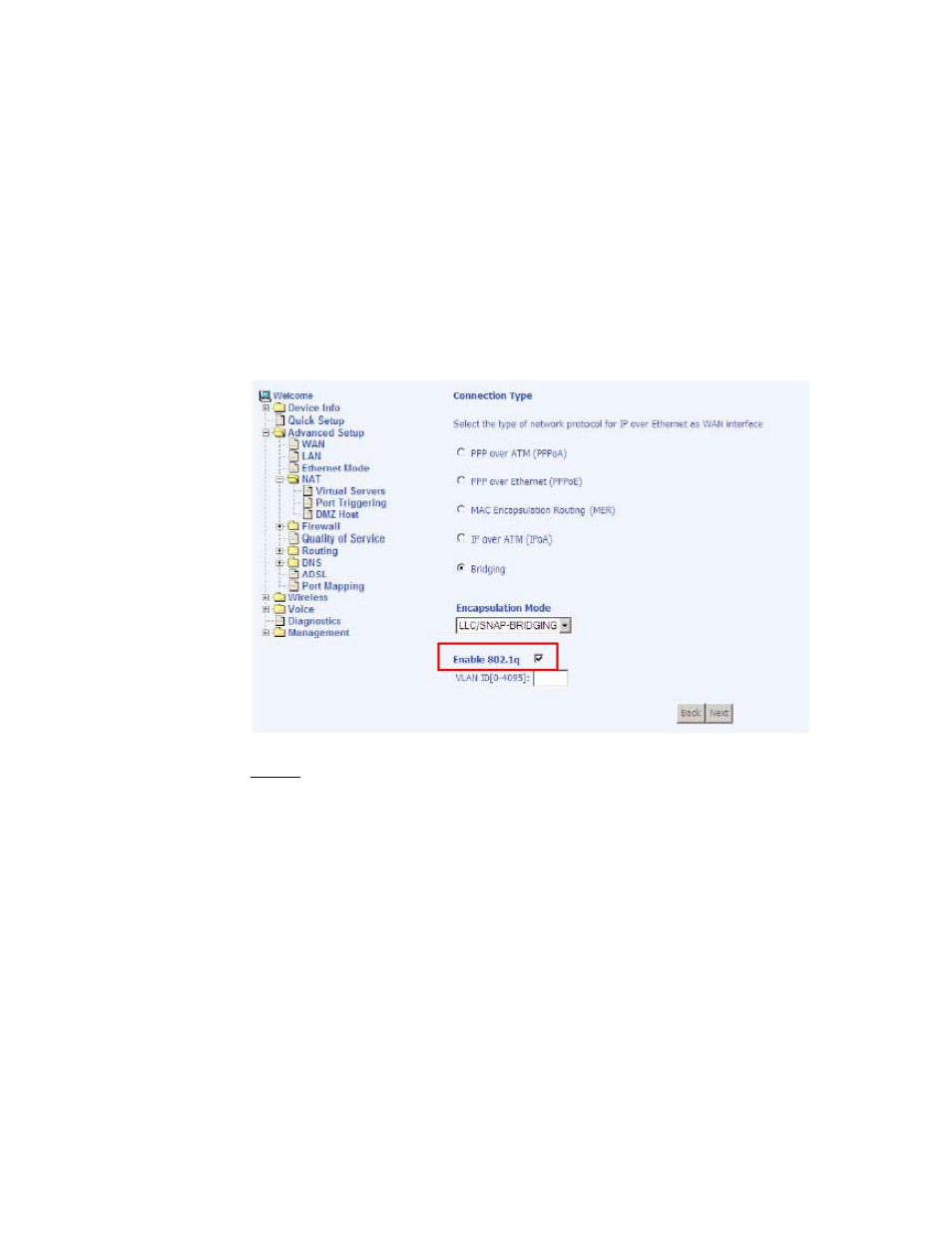

• Mark 802.1p if 802.1q is enabled on WAN— (See Connection
Type screen located under WAN under the Advanced group.) The
values range from 0-7.
NOTE: Enter the following conditions either for SET-1 or for SET-2.
SET-1
• Physical LAN Port— Select the physical port—Ethernet LAN 1-4,
USB, or wireless.
• Protocol— Select from the following protocols—TCP/UDP, TCP,
UDP, or ICMP.
• Source IP Address— The IP address for the computer which
packets are coming from.
• Source Subnet Mask— The subnet mask for the source of the
packets being sent.
